TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 89 -

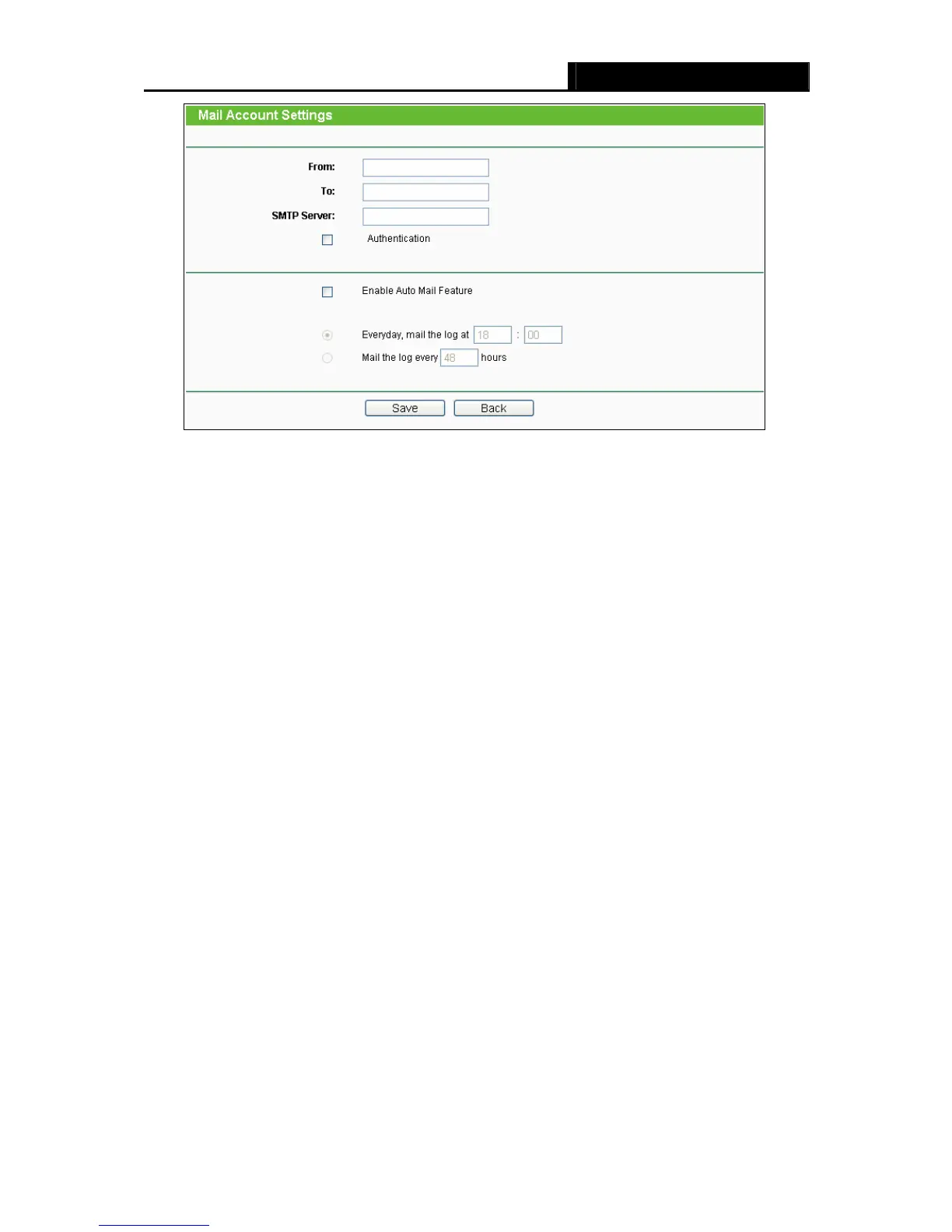

Figure 4-81 Mail Account Settings
z From - Your mail box address. The Router would connect it to send logs.
z To - Recipient’s address. The destination mailbox where the logs would be received.
z SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From
field. You can log on the relevant website for Help if you are not clear with the
address.
z Authentication - Most SMTP Server requires Authentication. It is required by most
mailboxes that need User Name and Password to log in.
)
Note:
Only when you select Authentication, do you have to enter the User Name and
Password in the following fields.
z User Name - Your mail account name filled in the From field. The part behind @ is
excluded.
z Password - Your mail account password.
z Confirm The Password - Enter the password again to confirm.
z Enable Auto Mail Feature - Select it to mail logs automatically. You could mail the
current logs either at a specified time everyday or by intervals, but only one could be
the current effective rule. Enter the desired time or intervals in the corresponding field
as shown in Figure 4-81.
Click Save to keep your settings.
Click Back to return to the previous page.
¾ Log Type - By selecting the log type, only logs of this type will be shown.

TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Antenna	5dBi fixed omni directional antenna
Button	Reset Button
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Signal Rate	11n: Up to 150Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
Ports	4 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
Power Supply	9VDC / 0.6A
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Weight	0.3 kg
