TL-WR740N/TL-WR741ND 150Mbps Wireless N Router
- 26 -

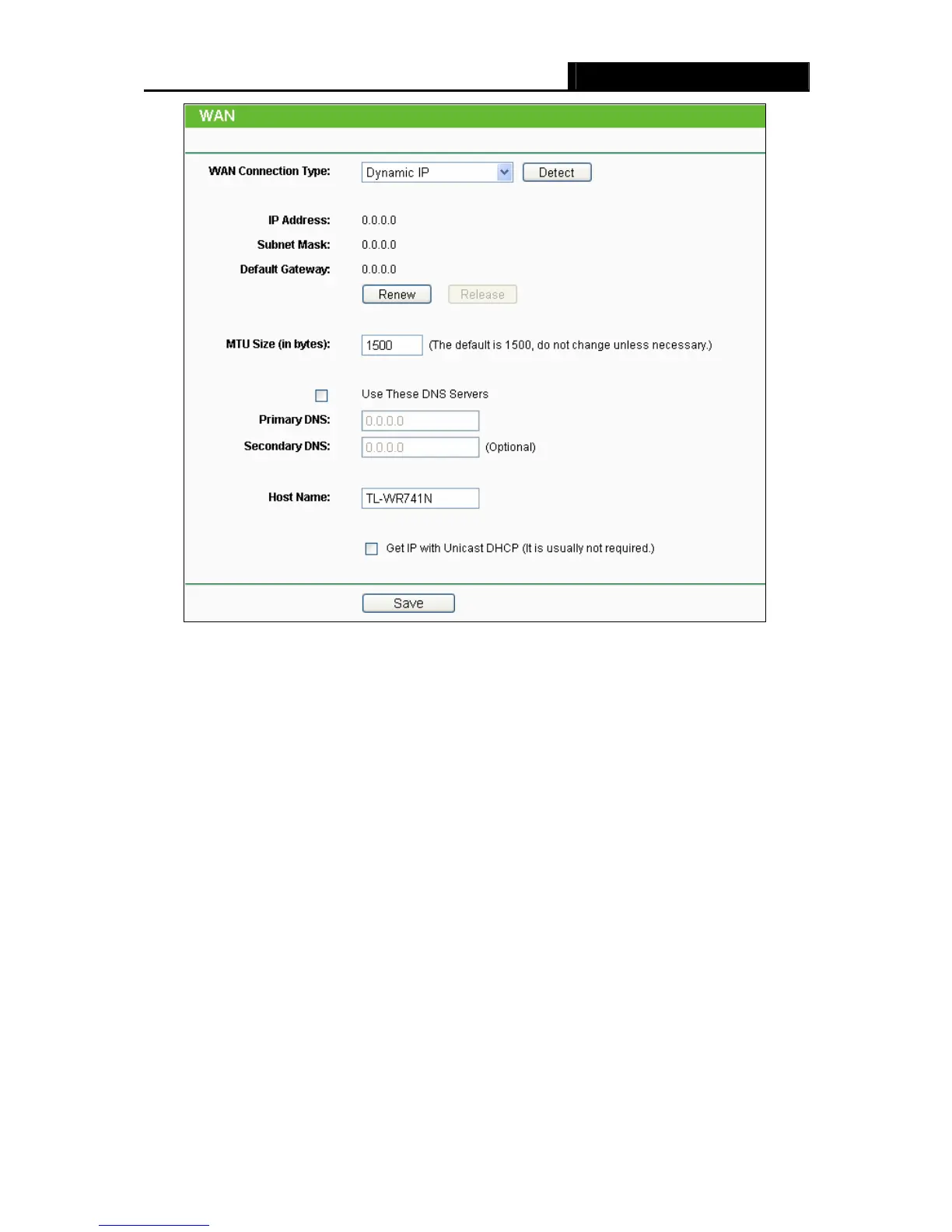

Figure 4-7 WAN – Dynamic IP
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP
address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP
parameters from your ISP. Click the Release button to release the IP parameters.
¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. It is not recommended that you change the default MTU Size unless required
by your ISP.
¾ Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use
These DNS Servers and enter the primary and secondary addresses into the correct fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
)
Note:
If you find error when you go to a website after entering the DNS addresses, it is likely that
your DNS servers are set up improperly. You should contact your ISP to get DNS server
addresses.
¾ Host Name -
¾ Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast

TP-Link TL-WR740N - 150Mbps Wireless Lite N Router IEEE 802.11n 802.11g 802.11b Built-in Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Antenna	5dBi fixed omni directional antenna
Button	Reset Button
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Signal Rate	11n: Up to 150Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
Ports	4 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
Power Supply	9VDC / 0.6A
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Weight	0.3 kg
