TL-WR743ND 150Mbps Wireless AP/Client Router
- 99 -
3. In Host Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00-11-22-33-44-AA.
5. Click Save to complete the settings.

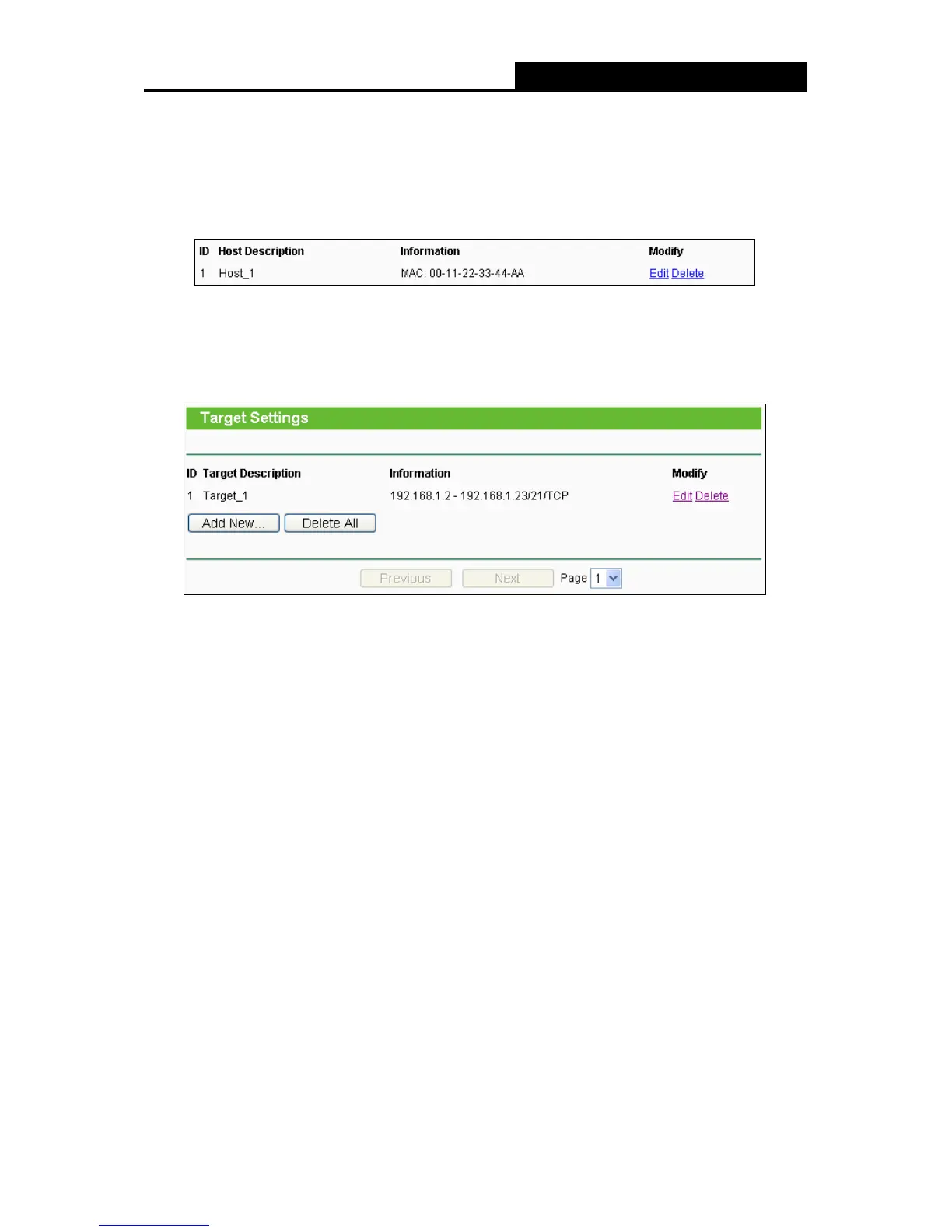

Then you will go back to the Host Settings page and see the following list.
4.12.3 Target
Choose menu “Access Control → Target”, and then you can view and set a Target list in the
screen as shown in Figure 4-58. The target list is necessary for the Access Control Rule.
Figure 4-58 Target Settings
Target Description - Here displays the description about the target and this description is
unique.
Information - The target can be an IP address, a port, or a domain name.
Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New… button.
2. In Mode field, select IP Address or Domain Name.
If you select IP Address, the screen shown is Figure 4-59.
1) In Target Description field, create a unique description for the target (e.g.
Target_1).
2) In IP Address field, enter the IP address of the target.
3) Select a common service from Common Service Port drop-down list, so that the
Target Port will be automatically filled. If the Common Service Port drop-down list
doesn’t have the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL.
If you select Domain Name, the screen shown is Figure 4-60.
