TL-WR743ND 150Mbps Wireless AP/Client Router
- 22 -

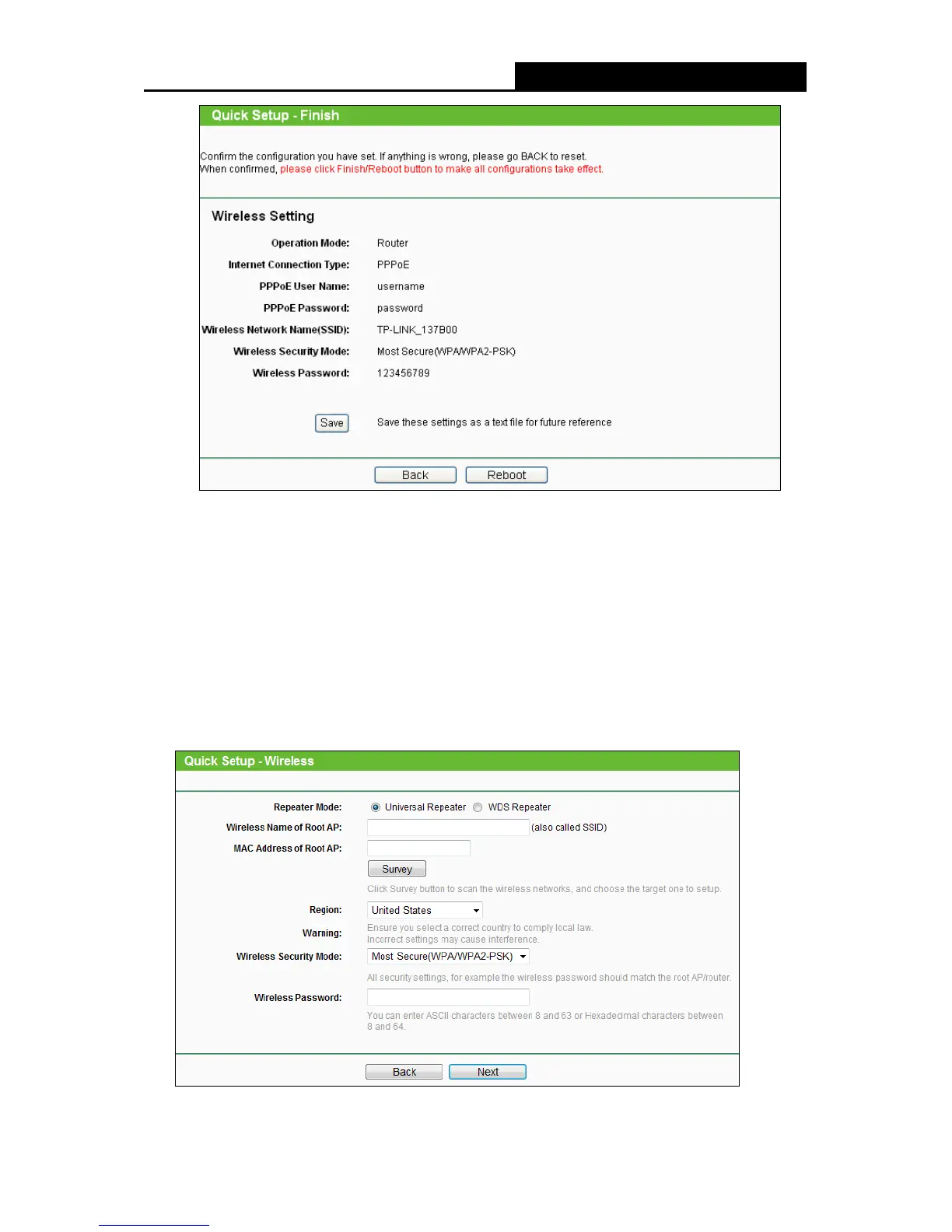

Figure 3-20 Quick Setup – Finish
Note:
You may click the Save button to save these settings as a text file for future reference.
3.2.3 Configuration for Repeater Mode
When you choose Repeater on Operation Mode page as shown in Figure 3-6 , take the following
steps:
1. Click Next, and then Wireless page will appear as shown in Figure 3-21.
Figure 3-21 Quick Setup – Wireless
