TP-Link WBS210 - Configure WAN Parameters

55
4.1 &RQILJXUH:$13DUDPHWHUV
Note:
WAN submenu is only available in AP Router Mode and AP Client Router (WISP Client) Mode.
WAN submenu is used to create the WAN connection and configure the related advaced
parameters.

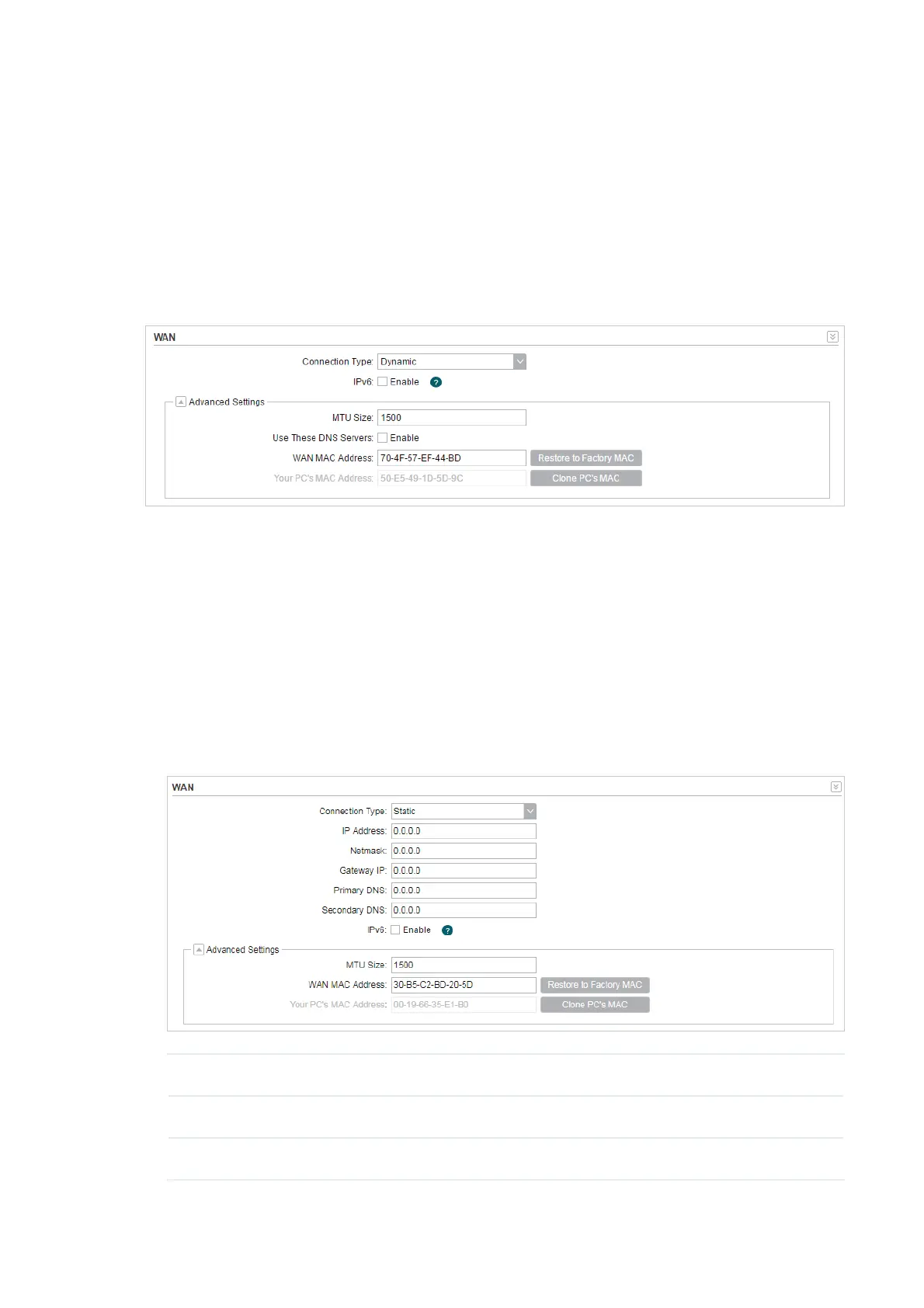

Go to the 1HWZRUN page. In the :$1 section, configure the WAN parameters of the device.
Follow the steps below to configure the WAN parameters:
Select the connection type according to your need. The device supports five types:
Static, Dynamic, PPPoE, L2TP, and PPTP.
Ђ 6WDWLF
This connection type uses a permanent, fixed (static) IP address that is assigned by your ISP. In
this type, you should fill in the IP address, Netmask, Gateway IP, and DNS IP address manually,
which are assigned by your ISP.
IP address Enter the IP address provided by your ISP.
Netmask Enter the netmask provided by your ISP. Normally use 255.255.255.0.
Gateway IP Enter the gateway IP address provided by your ISP.
