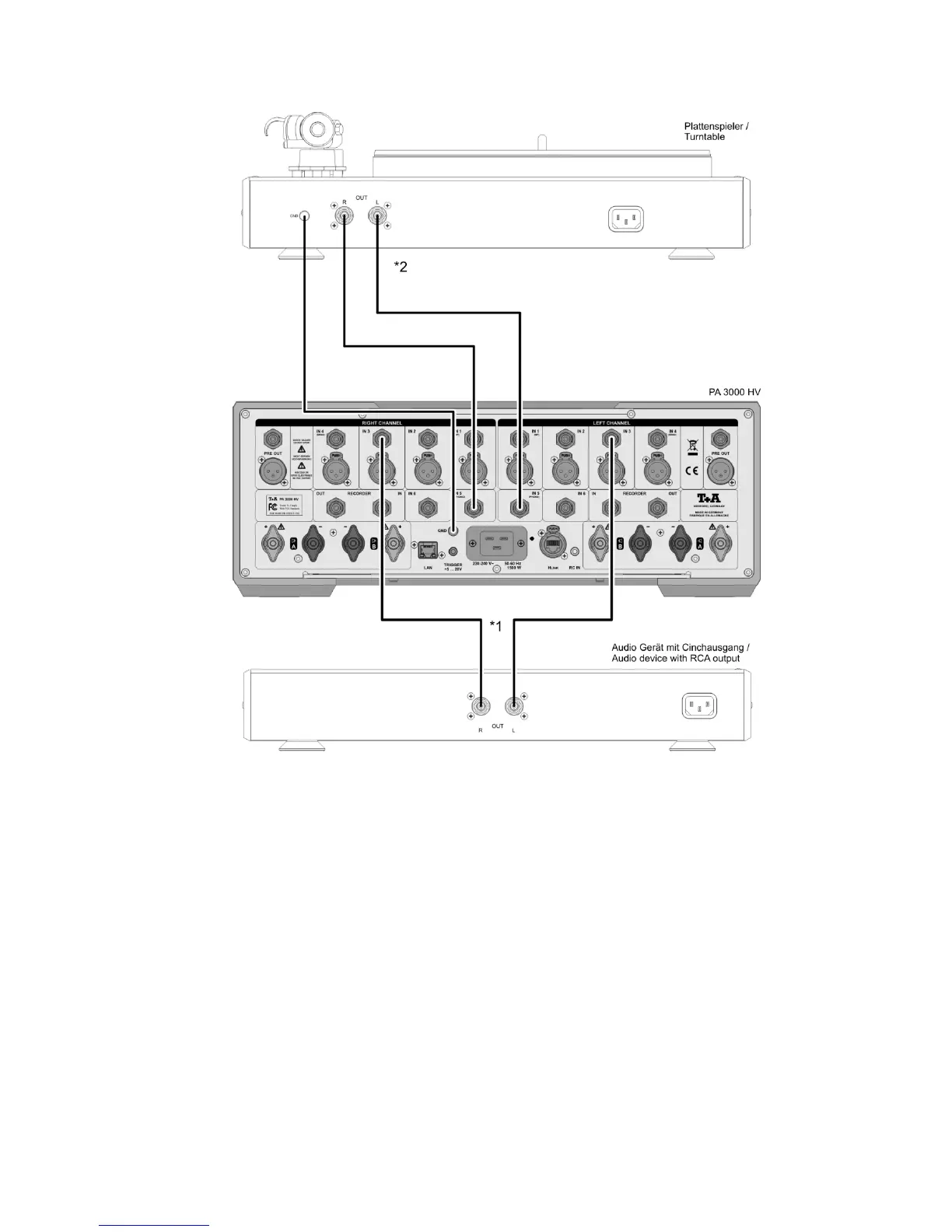

Anschluss-Schema / Wiring diagram
*1 Hinweis:
Die Eingänge IN 1 IN 4 sind mit unsymmetrischen Cinch- und symmetrischen XLR Buchsen ausgestattet. Es kann
pro Eingang nur eine Anschlussart benutzt werden. Die gewünschte Anschlussart muss im Systemkonfigurationsmenü
eingestellt werden. (siehe Kap. 'Grundeinstellungen des PA 3000 HV')
*1 Note:
The inputs IN 1 IN 4 are equipped with asymmetrical Cinch/RCA sockets and symmetrical XLR inputs. Only one type
of connection can be used for each input. Note that you must set your preferred type of connection in the Configuration
menu. (See chapter entitled Basic settings of the PA 3000 HV)
*2 Hinweis:
Zum Anschluss von Plattenspielern kann eines der optional erhältlichen Phonoeinbaumodule (PH HV MM oder
PH HV MC) installiert werden. Wahlweise kann ein Plattenspieler mit integriertem Phonovorverstärker
angeschlossen werden.
*2 Note:
A turntable can be connected by retrofitting one of the phono amplifier modules (PH HV MM or PH HV MC); these units
are available as optional accessories. It is also possible to connect a turntable with integral phono amplifier.
