TRACE ELLIOT Transit B - Top Panel Controls; Output Level; Lo-Band;Hi-Band Compression; 5-Band Equalisation

4

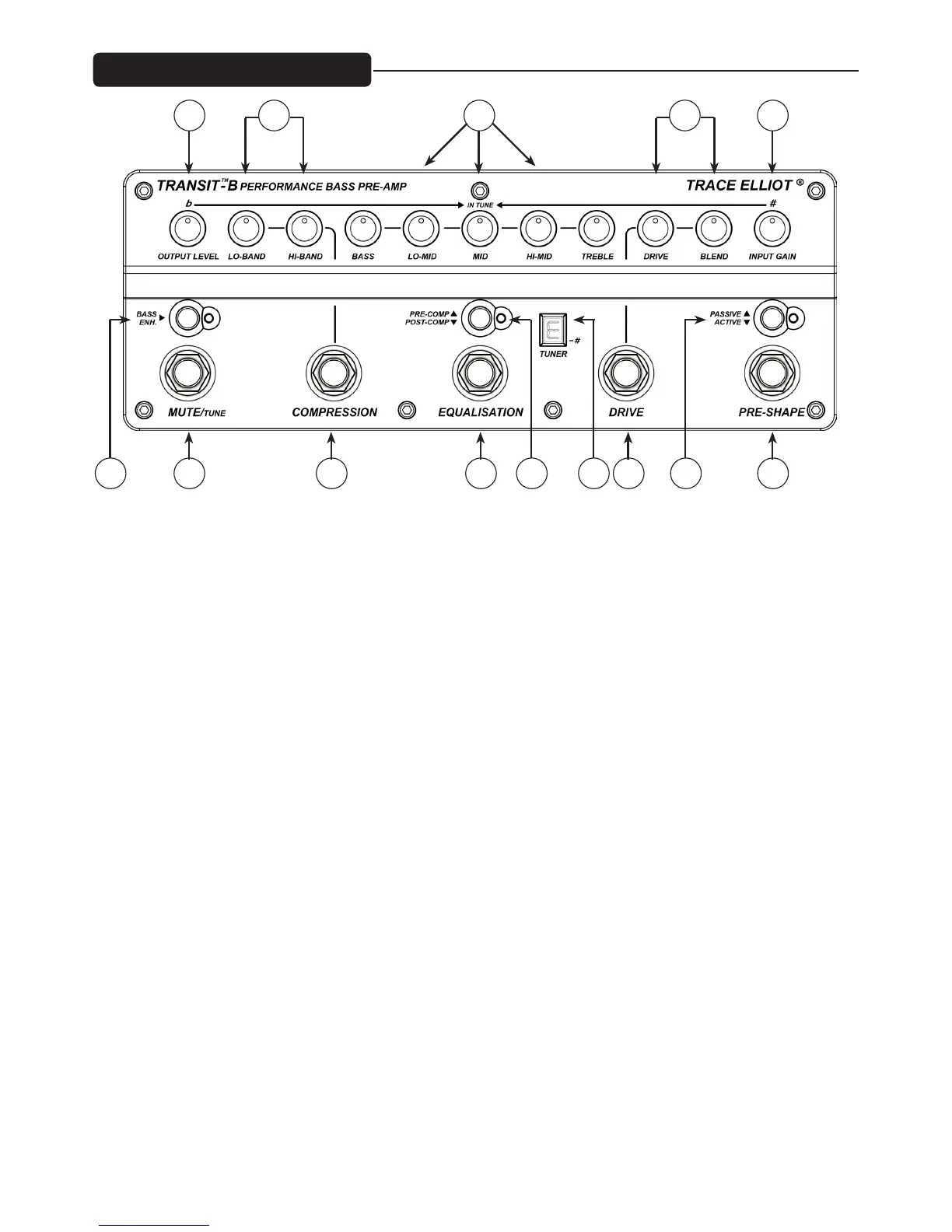

Top Panel
1
6 1310 117 8 9 12 14
2 43 5
(1) OUTPUT LEVEL
Controls the output level of the pre-amp. It does not aect the XLR direct outs. is allows you to adjust the
1/4” outs for stage rig, while not aecting the PA level.
(2) LO-BAND/HI-BAND
Controls the amount of compression to the Lo-Band and Hi-Band frequencies. e backlit LEDs come on with
the footswitch, but each will icker o while playing to show when compression occurs.
(3) 5-Band Equalisation controls
Controls the equalisation of the pre-amp. e green LED behind the MID knob will turn red if clipping occurs
in the EQ circuit due to too much boost. Adjust EQ accordingly.
(4) Drive/Blend controls
Controls the amount of Gain for the Drive signal. e Blend control controls the blend of the Drive signal with
the Clean signal.
(5) INPUT GAIN
Controls the input signal recieved from the instrument. e backlit LED turns red to indicate clipping. You
should ideally set the knob as high as you can while still avoiding clipping.
(6) BASS ENHANCEMENT Switch and LED
Incorporates a proprietary subharmonic generator circuit that is specially voiced for deep bass. If you are
driving a system with with no subwoofer or limited low frequency capabilities, then this switch may cause the
speakers to be overdriven at the extent of the low frequency response.
(7) MUTE/TUNE Switch
Mutes the pre-amp signal and activates the onboard tuner (11).
(8) COMPRESSION Switch
Activates the pre-amp’s Lo-Band and Hi-Band compression.
