General Information
Control Locations and
Functions
Ignition Switch Key
Two keys come with the ATV. Keep the
spare key in a safe place. An identifying
number is stamped on each key. Use this
number when ordering a replacement key.

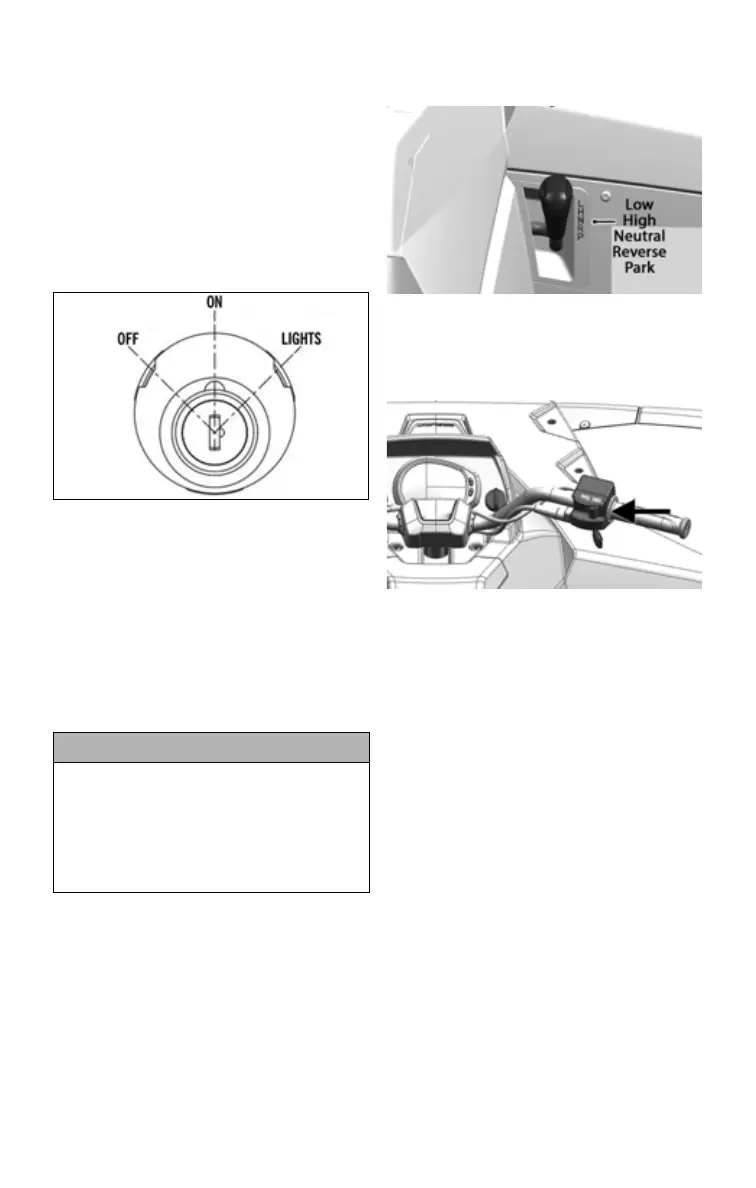

Ignition Switch
The ignition switch has three positions.
VTA-079
OFF position — All electrical circuits
are off. The engine will not start. The key
can be removed in this position.
ON position — The ignition circuit is
complete and the engine can run. The key
cannot be removed in this position.
LIGHTS
position — The ignition circuit is
complete and headlights and taillight are on.
The key cannot be removed in this position.
Shift Lever
OHA004
This ATV has a dual-range automatic
transmission with reverse and park.
Drive Select Switch
OHA006
This switch allows the operator to select
either two-wheel drive (rear wheels) or
four-wheel drive (four wheels) operation.
For normal riding on flat, dry, hard sur-
faces, two-wheel drive should be suffi-
cient. In aggressive trail conditions, four-
wheel drive is the desired choice.
NOTE: When four-wheel drive is
selected, an automatic 4WD Lock
feature mechanically locks the front
differential to apply equal power to
both front wheels.
To engage or disengage the front wheels,
move the switch to the 4WD position or
to the 2WD position. The 4WD position
or the 2WD position will be indicated on
the LCD gauge.
CAUTION
Leaving the ignition switch in the ON
or LIGHTS position for a long period
of time when the engine is not run-
ning may cause the battery to dis-
charge. Always leave the ignition
switch in the OFF position when
engine is not running.
