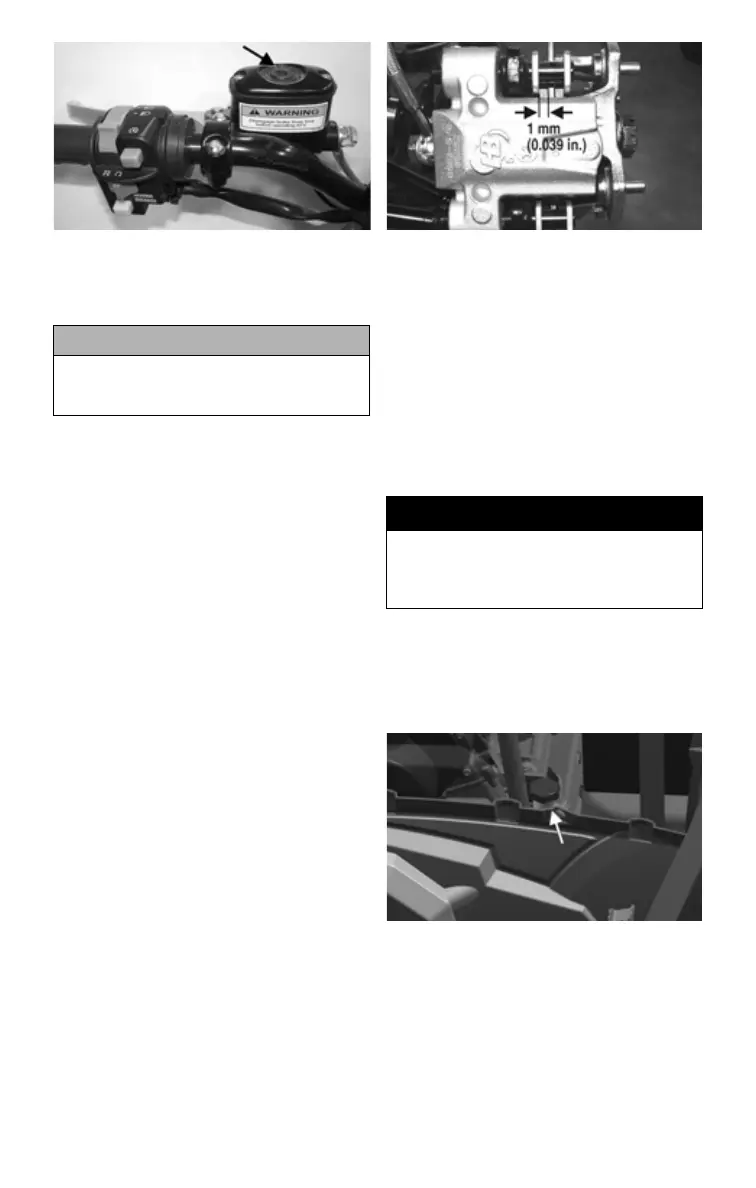

NOTE: If the sight glass appears
dark, there is a sufficient amount of
fluid in the reservoir.
Brake Lever Lock
NOTE: The brake lever lock must
lock the wheels. If it doesn’t, take
the ATV to an authorized dealer for
service.
Brake Hoses
Carefully inspect the hydraulic brake
hoses for cracks or other damage. If
found, take the ATV to an authorized
dealer to have the brake hoses replaced.
Brake Pads
The clearance between the brake pads
and brake discs is adjusted automatically
as the brake pads wear. The only mainte-
nance that is required is replacement of
the brake pads when they show excessive
wear. Check the thickness of each of the
brake pads as follows:
1. Remove a front wheel.
2. Measure the thickness of each brake
pad.
3. If thickness of either brake pad is less
than 1.0 mm (0.039 in.), take the ATV
to an authorized dealer to have brake
pads replaced.
PR376B
4.
Install the wheel; then using a criss-
cross pattern, tighten the wheel nuts
in 20 ft-lb (27.2 N-m) increments to
a final torque of 40 ft-lb (54.4 N-m)
(steel wheel), 60 ft-lb (81.6 N-m)
(aluminum wheel w/black nuts), or
80 ft-lb (108.8 N-m) (aluminum
wheel w/chrome nuts).
Rear Foot Brake
The rear foot brake must be maintained
to be fully functional.
1. Check the brake fluid level in the res-
ervoir. The fluid level must be main-
tained between the MAX and MIN
level marks. If the level in the reser-
voir is low, add DOT 4 brake fluid.
OHA023
NOTE: The brake fluid reservoir is
located behind right-side panel.
2. Press the rear foot brake several times
to check for firmness.
3. If the brake is not firm, the system
must be bled.
CAUTION
Be careful not to spill any fluid when
filling the brake fluid reservoir. Wipe
away spilled fluid immediately.
! WARNING
Be sure to inspect the rear foot brake
system before each use. Always
maintain brakes according to the
Maintenance Schedule.
