60
0744-527
NOTE: Some jumper cables may
be the same color but the clamps or
ends will be color-coded red and
black.

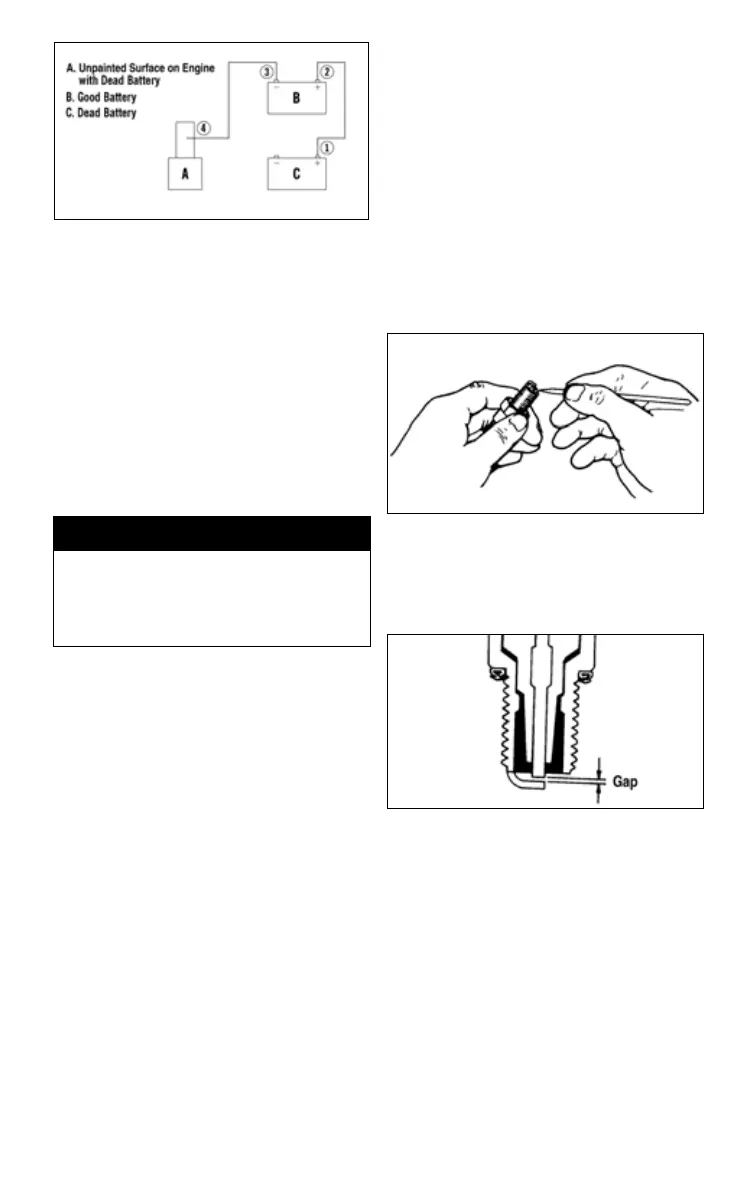

7. Attach one clamp of the negative
(black) jumper cable to the negative
(-) terminal (3) of the good battery
(B); then attach the other clamp of the
negative (black) jumper cable (4) to
an unpainted metal surface (A) on the
engine or frame well away from the
dead battery and fuel system compo-
nents.
8. Stand well away from the dead bat-
tery and start the vehicle with the
good battery. Allow the vehicle to run
for several minutes applying some
charge to the dead battery.
9. Start the vehicle with the dead battery
and allow it to run for several minutes
before disconnecting the jumper cables.
10. Remove the jumper cables in oppo-
site order of hook-up (4, 3, 2, 1). Be
careful not to short cables against
bare metal.
NOTE: Have the battery and elec-
trical system checked prior to oper-
ating the vehicle again.
Spark Plug
This ATV comes equipped with a speci-
fied spark plug. See the specifications
chart for the correct spark plug. To help
prevent cold weather fouling, make sure
to thoroughly warm up the engine before
operating.
To maintain a hot, strong spark, keep the
plug free of carbon.
Before removing the spark plug, be sure
to clean the area around the spark plug. If
you do not, dirt could enter engine when
removing or installing the spark plug.
ATV-0051
Adjust the gap to specified amount (see
appropriate specifications chart) for
proper ignition. Use a feeler gauge to
check the gap.
ATV0052B
A new spark plug should be tightened 1/2
turn once the washer contacts the cylin-
der head. A used spark plug should be
tightened 1/8-1/4 turn once the washer
contacts the cylinder head. Torque of
10.4-14.5 ft-lb (14.1-19.7 N-m) is recom-
mended.
Throttle Cable
Adjustment
To adjust the throttle cable free-play:
1. Loosen the jam nut from the throttle
cable adjuster.
! WARNING
Never make the final connection to a
battery as a spark could ignite hydro-
gen gases causing an explosion of
the battery resulting in acid burns or
blindness.
