66
MOD046A
Fuses

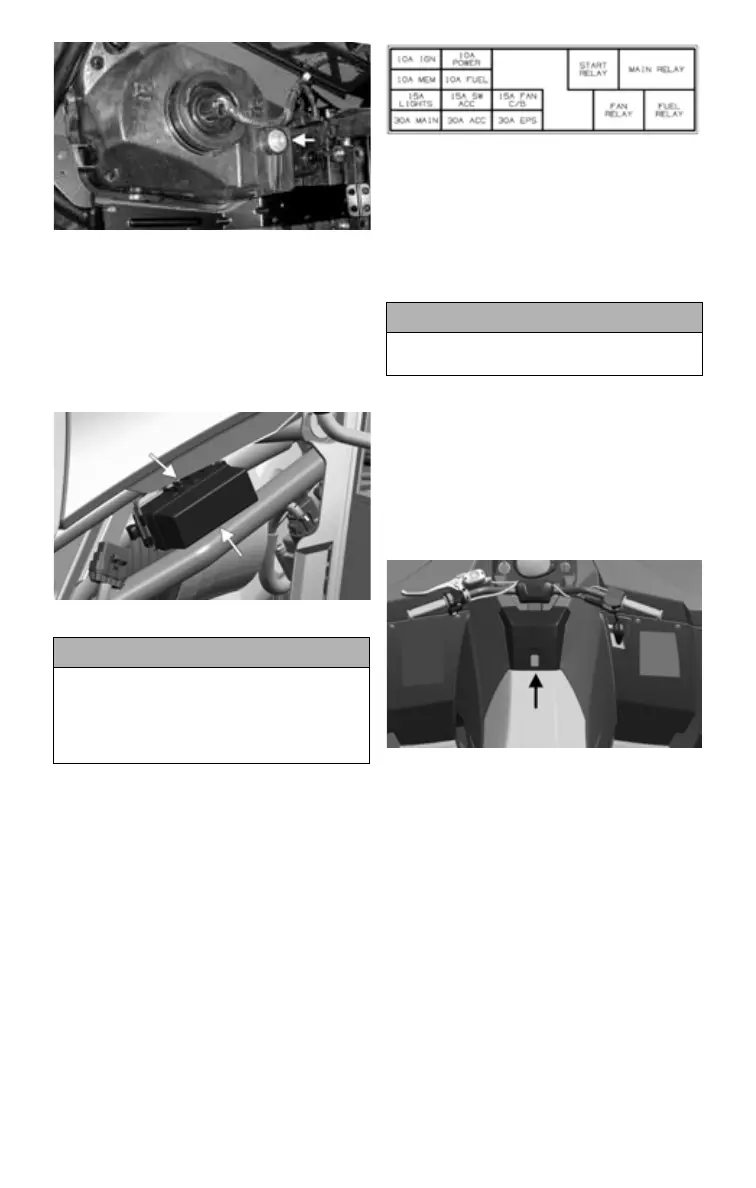

The fuses are located in a power distribu-
tion module on the right side of the ATV
behind the access panel. Remove seat and
the right-hand side panel to access. If there
is any type of electrical system failure,
always check the fuses first.
OHA037
NOTE: To remove the fuse, com-
press the locking tabs on top of the
fuse cover and lift out.
OHA039
Electrical Output
Terminals
Two output terminals for electrical acces-
sories are located on the front and rear
wiring harnesses. The accessory plug is
located on the instrument pod.
Storage Compartment/
Tools
A basic tool kit is provided with the ATV.
Maintain the tool kit with the ATV at all
times.
The storage compartment is above the
engine in front of the seat.
OHA038
CAUTION
Always replace a blown fuse with a
fuse of the same type and rating. If
the new fuse blows after a short
period of use, consult an authorized
dealer immediately.
CAUTION
Always use electrical accessories
less than 180W.
