MAINTENANCE
43
FUSE REPLACEMENT
The fuse block is under the driver seat.
NOTICE: Have the vehicle inspected by an authorized dealer if fuses continue to blow after they have been
replaced.
1. Lift the seat bottom to access the fuses.
2. Remove the old fuse and replace with a new fuse of the same type and size.
3. Fuses are available from a local Distributor, an authorized Branch, or the Service Parts Department.
FOUR CYCLE ENGINE
The engine is an air cooled, 4-stroke, OHV, single cylinder gasoline engine. It has a pressure fed lubrication positive
displacement oil pump with a cartridge type full flow oil filter and a counter rotating balance shaft.
NOTICE: The engine uses more oil during the first hours of operation, than after the internal parts are run-in.
As the run-in process occurs, oil use will gradually decrease until it stabilizes.
Engine Specifications
Engine Model ........................................ EFIA-1
Type........................................................ Four cycle, OHV
Number of Cylinders............................... 1
Displacement.......................................... 401 cc
Rated Horsepower ................................. 13.5 hp
Spark Plug Type ..................................... NGK BPR2ES
Spark Plug Gap ...................................... .028"
031" (.70 - .80 mm)
Cooling ................................................... Forced Air Cooled
Oil Filter .................................................. Cartridge Type Full Flow Filter
Oil Pump................................................. Positive Displacement Pump
CHECKTHE OIL LEVEL
Check the engine oil at the intervals indicated in the SCHEDULED MAINTENANCE CHART on page 36.
Wear protective glovestoprevent scalding fromhot engine oil.
Check the engine oil level when the engine is warm and the vehicle parked on level surface.
1. Turn key switch to the OFF position and engage the parking brake.
2. Allow oil to drain into crankcase.
3. Wipe the top of the engine clean with a cloth to remove debris that could fall in the engine.
4. Remove the dipstick and wipe off the entire length with a clean lint-free cloth.
5. To get an accurate level reading, wipe oil from the dipstick and insert back into the opening.

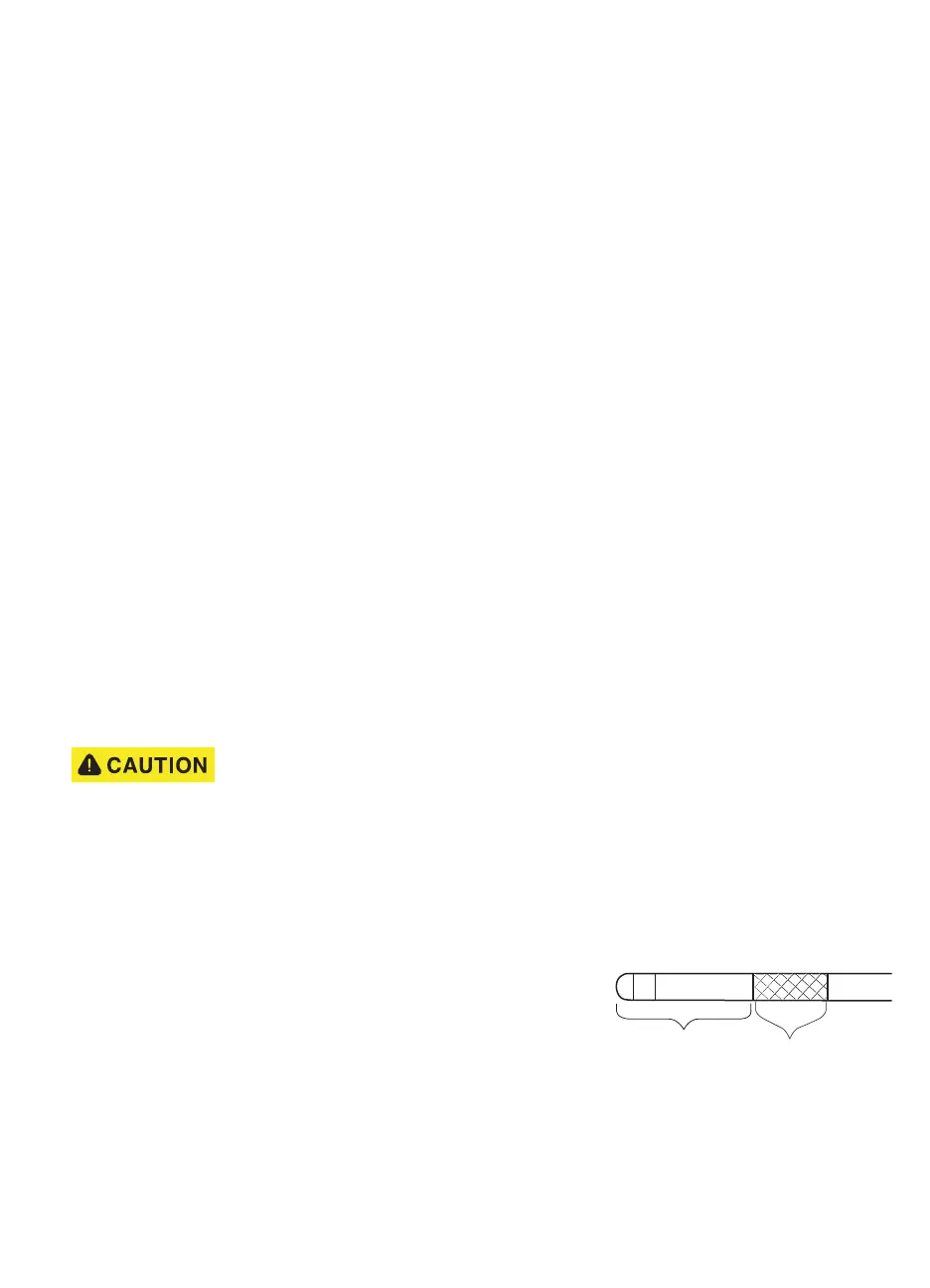

6. Remove the dipstick again and check the level. The oil level must be in the area between L and H (in the cross-
hatch) on the dipstick.
7. The engine can be operated safely as long as oil is within the safe
operating range as indicated on the dipstick.
NOTICE: The lack of oil or low oil level can damage the engine. Do not
operate vehicle if oil level is below the safe area indicated on
the dipstick.
8. If the oil level is below the L line, add engine oil into the dipstick hole
until the level is between L and H.
NOTICE: Excessive oil can damage the engine. Oil expands as it gets hot, so do not overfill.
9. If the oil level is above the H line, pump out the excessive oil with a siphon pump.
10. Replace the dipstick.
Tools
• funnel
• clean lint-free cloth
L H
Safe
Operating Range
Add Oil
