19

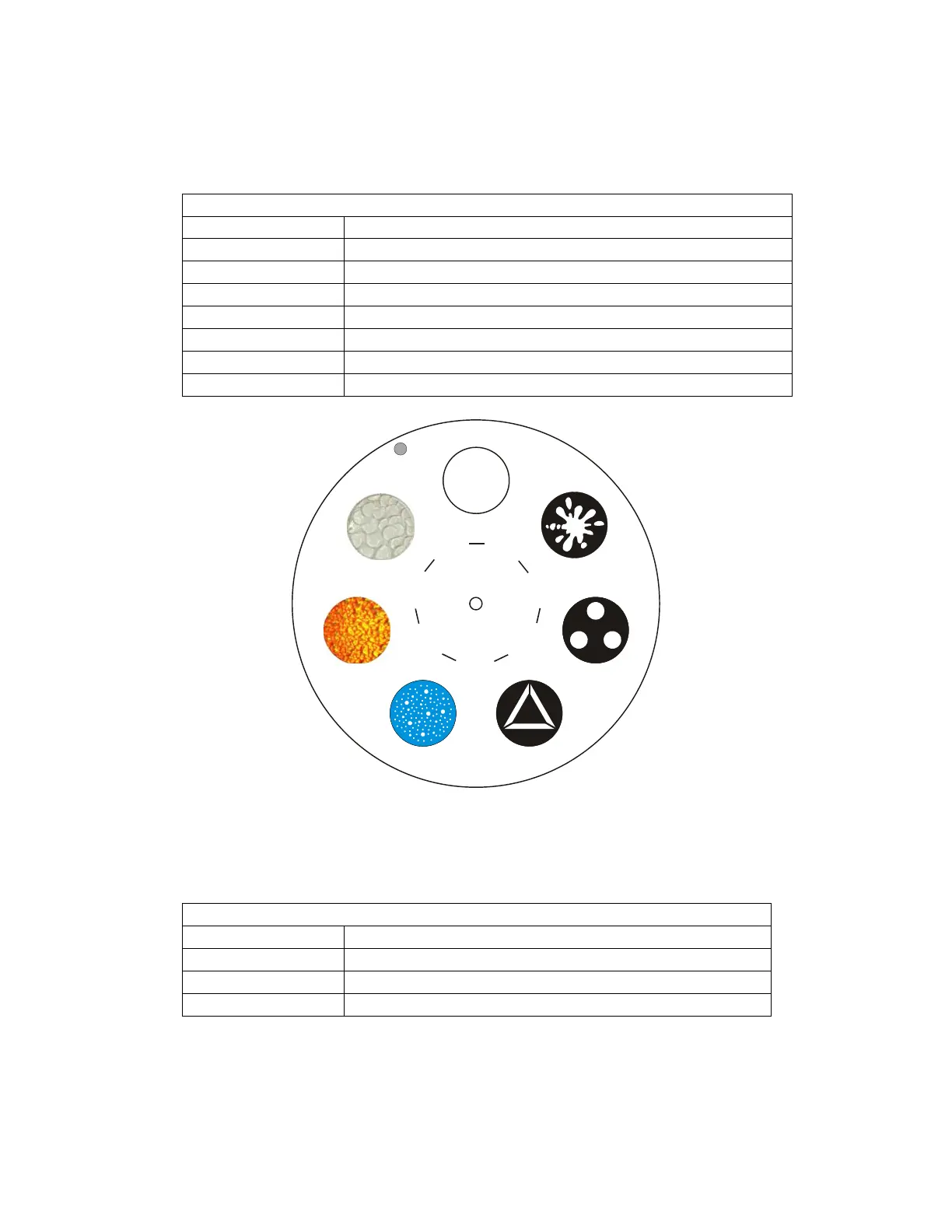

CH 12 : Rotating Gobo Wheel
The Rotating Gobo Wheel contains 6 replaceable gobos, 3 metal and 3 glass. The Gobo
Rotation & Index channel controls the position and rotation of the gobos. Using both
Gobo wheels and varying the Focus can create many interesting effects.
CH 12 – Rotating Gobo Wheel
DMX Value Function
0-36 Open
37-73 Rotating Gobo 1 (Metal)
74-110 Rotating Gobo 2 (Metal)
111-147 Rotating Gobo 3 (Metal)
148-184 Rotating Gobo 4 (Glass – Blue Field Random Dots)
185-221 Rotating Gobo 5 (Glass – Fire Texture Dichroic)
222-255 Rotating Gobo 6 (Glass – Clear Texture)
CH 13 : Gobo Rotation & Index
Rotating gobos can be rotated in either direction or indexed to a fixed orientation.
CH 13 – Gobo Rotation & Index
DMX Value Function
0-40 Indexed – 0 to 540°
41-158 Rotation – Slow to Fast
159-255 Rotation Reverse – Slow to Fast
0
6
5
4
3
2
1
