Tractel dynafor LLX1 Series User Manual

6

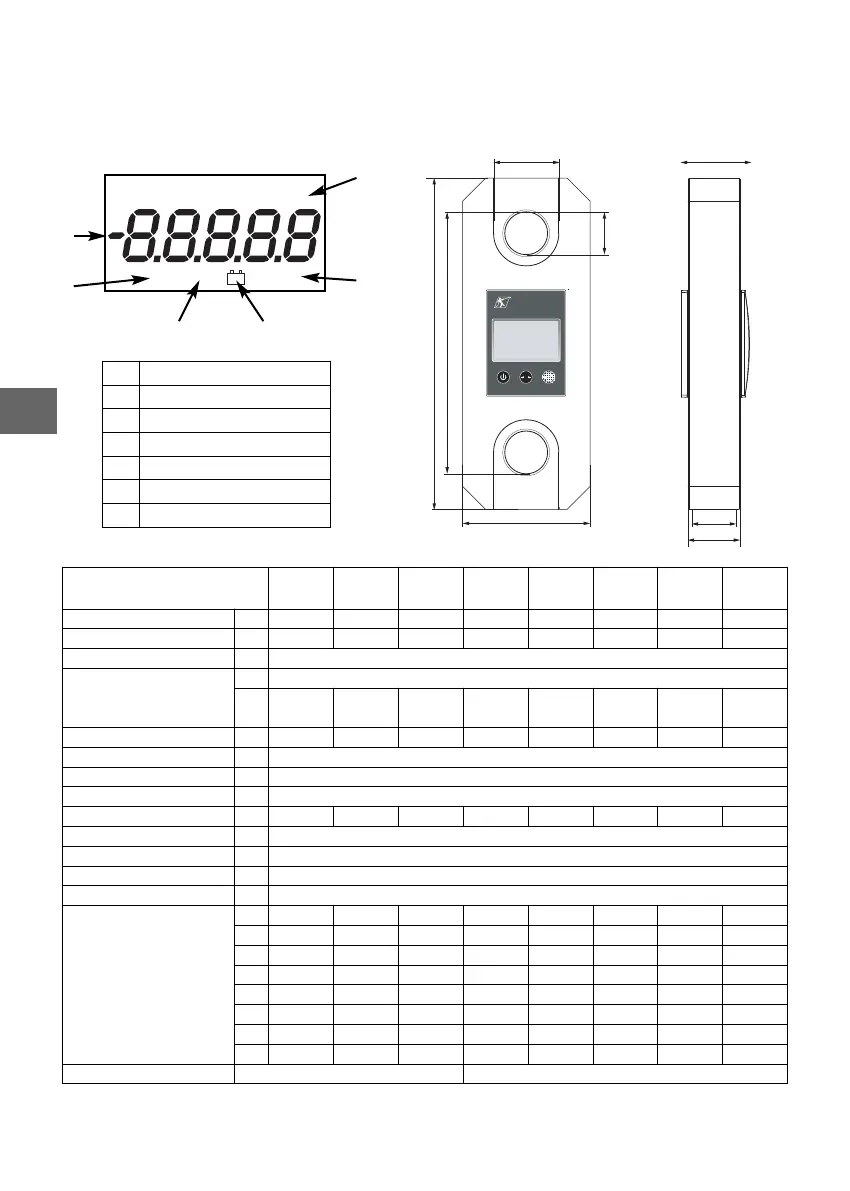

5. TECHNICAL SPECIFICATIONS
5.1 SENSOR AND DISPLAY
MODEL
LLX1
0.5 t
LLX1
1 t
LLX1
2 t
LLX1
3.2 t
LLX1
5 t
LLX1
6.3 t
LLX1
12.5 t
LLX1
20 t
Maximum capacity t 0.5 1 2 3.2 5 6.3 12.5 20
Test load t 0.75 1.5 3 4.8 7,5 9.6 18.75 30
Safety coefficient Minimum 4
Precision
0.2 % FS
±
daN
1 2 4 6 10 13 25 40
Increment daN 0.2 0.5 1 1 2 2 5 10
Max. Display daN 110 % maximum capacity
Number height mm 18
Autonomy 450 h (Batteries 1.5 V “AA ”)
Weight kg 1.1 1.1 1.3 1.5 2.3 2.3 4.3 7
IP Protection I.P. 65
Usafe From - 20° to 40°C
Sensitivity to T° 0.05% per 10°C
Sensor material Aluminium
Dimensions mm
A 220 220 233 243 275 275 343 371
B 196 196 207 207 217 217 257 269
C 14 14 22 22 28 28 42 54
D 90 90 100 100 115 115 125 134
E 32 32 32 32 32 32 51 67
F 16 16 24 24 29 29 48 64
G 47.5 47.5 47.5 47.5 47.5 47.5 66.5 67
H 45 45 50 50 57 57 62 66
Radio option RF technology: Zigbee 2.4 GHz Range : 40 m in free field, see details § 14
Indicators
A Units used
B Tare
C Batteries low
D Peak Hold
E Auto stop
F Signed measurement
GB
dynafor
™
0
.2%LLX1
T
H
D
F
E
G
C
A
B
kN daN lbs ton kg
STOP MAX TARE
+
–
F
E
A
B
C
D

Tractel dynafor LLX1 Series Specifications

General

Brand	Tractel
Model	dynafor LLX1 Series
Category	Measuring Instruments
Language	English
