Tractel dynafor LLX1 Series User Manual

7

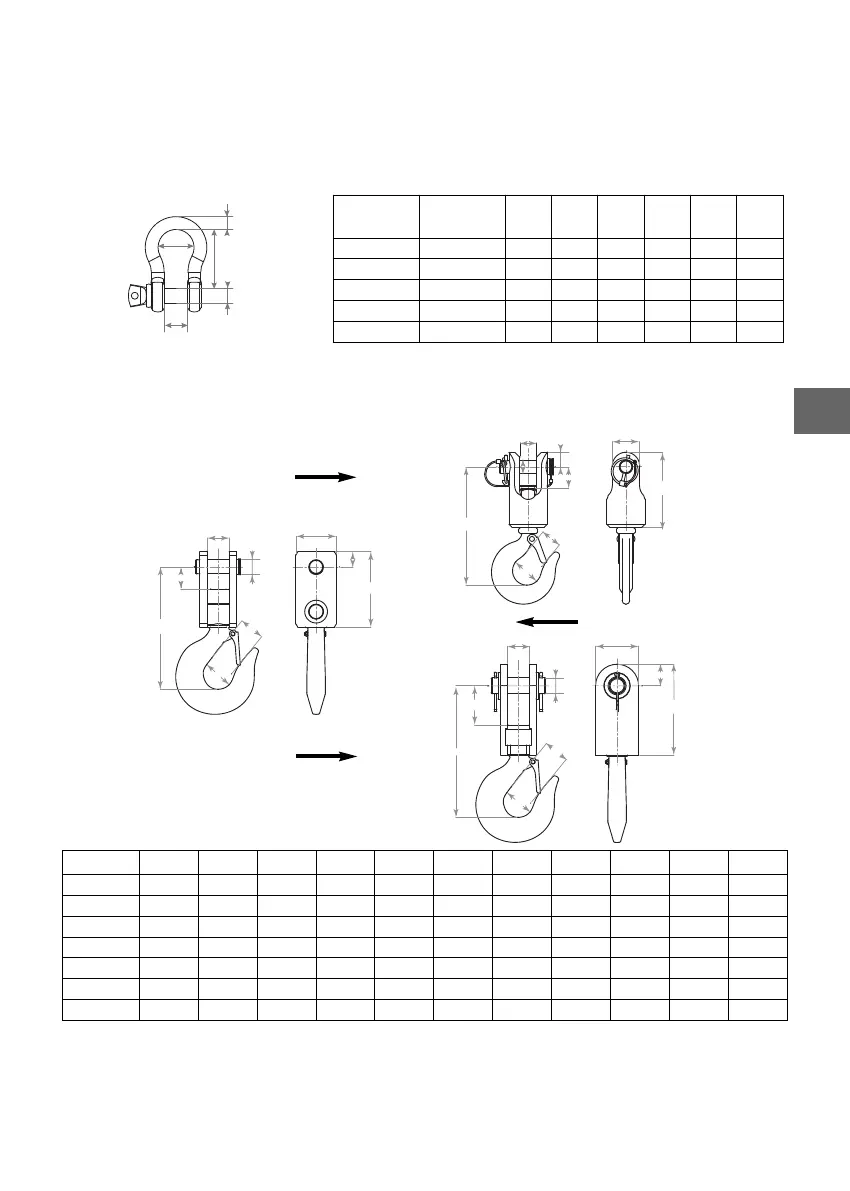

5.2. OPTIONAL ACCESSORIES
5.2.1 Shackles
Any shackle that complies with the relevant regulations can be used for dynafor™ LLX1 to be mounted onto a
traction line, as long as it complies with the dynafor™ LLX1 maximum capacity.
5.2.2 Swivel hooks
The dynafor
TM
LLX1 can be equipped with swivel hooks to facilitate fastening of loads.
TYPE A
TYPE B
TYPE C
5.2.3. Remote display
The LLX1 can be associated with a type LLX2 display. See details in § 14.
WLL
LLX1
WLL
Shackle
A
mm
B
mm
C
mm
D
mm
E
mm
kg
0.5 t & 1 t 1.5 t 29 11 43 13 18 0.2
2 t & 3.2 t 3.25 t 42 16 60 20 27 0.6
5 & 6.3 t 6.5 t 58 22 84 25 37 1.4
12.5 t 13.5 t 89 35 132 38 57 4.4
20 t 25 t 110 50 178 50 73 14
E
A
D
C
B
LLX1 Type A B C D E F G H I kg
0.5 t A 113 24 17 13 19 33 63 25 13 0.5
1 t A 140 24 17 13 21 38 88 33 16 1
2 t A 160 29 26 20 27 42 100 43 22 1,6
3.2 t A 195 33 26 20 32 49 118 43 23 3,2
5 t / 6.3 t B 290 48 33 25 50 74 170 70 33 12
12.5 t B 331 60 60 41 58 80 217 110 49 22
20 t C 412 86 70 50 76 104 250 134 67 44
GB
AA
BB
II
CC
øø D D
øø F F
GG
HH
EE
GG
HH
CC
BB
AA
øø D D
EE
øø F F
II
CC
HH
G
G
øø F F
EE
B
B
AA
øø D D
II
