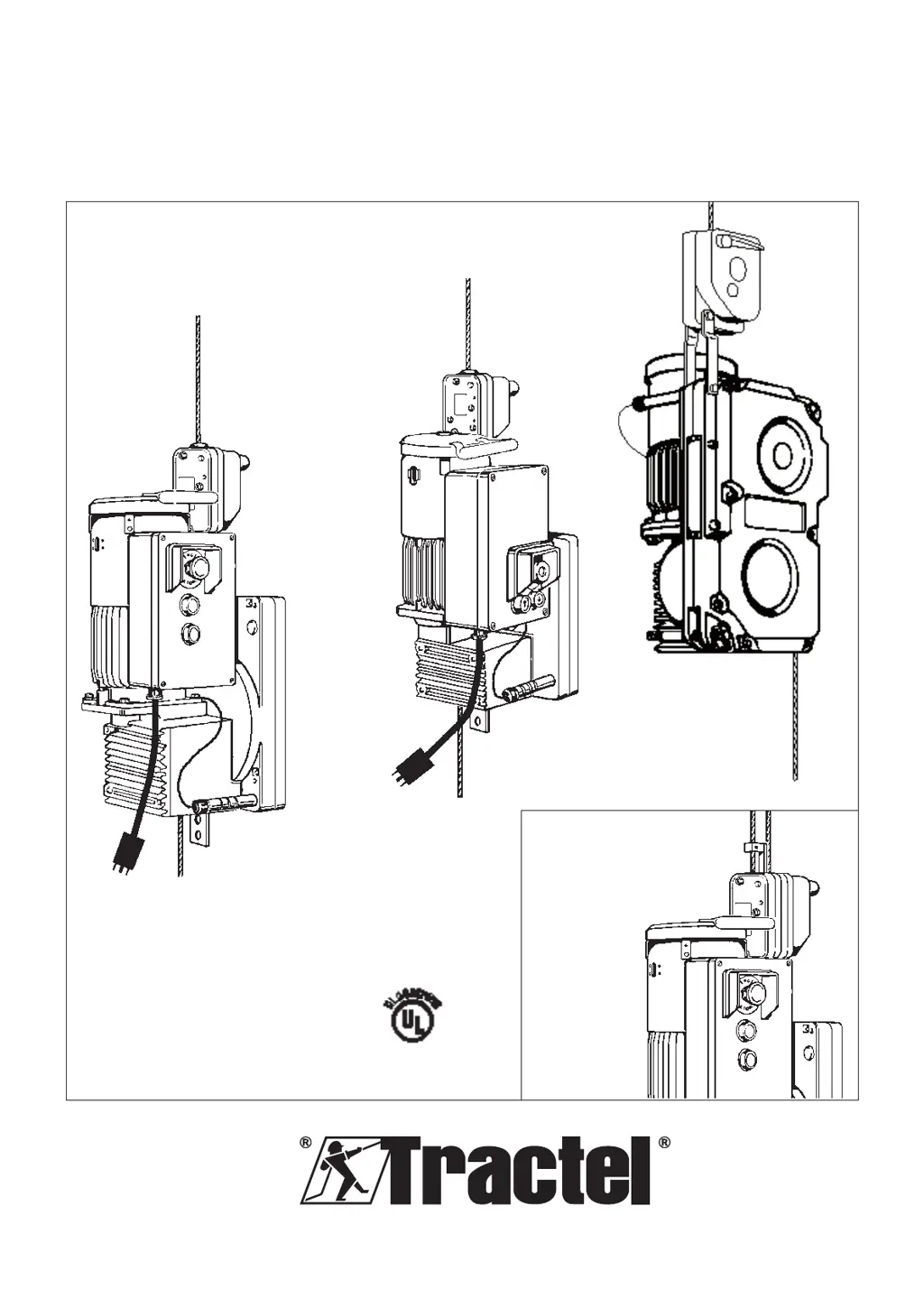

1
tirak
™
Scaffolding Hoist
Instruction Manual
tirak
™
hoists
with blocstop
™
BS/BSO on
2 wire rope
system
TE 1020 P
with blocstop
™
BSO
XE 301 P
with
blocstop
™
BSO
XE 500 P
XE 501 P
XE 501 PA
XE 600 P
XE 700 P
XE 701 P
XE 720 P
XE 721 P
XE 1020 P
XE 1030 P
with blocstop
™
BSO
Griphoist
®
Division
www.tractel.com

Table of Contents

Questions and Answers

  • M
    Margaret EvansAug 18, 2025
    Why is my Tractel Tirak X Industrial Equipment motor overheating?
    • J
      Jason BurkeAug 18, 2025
      Your Tractel Industrial Equipment motor might be overheating due to several reasons: * The unit may be overloaded, in which case you should check the load and reduce it if necessary. * The voltage may be too high or too low; check the current consumption and compare it with the motor label specifications, also check the current and voltage. * The starting capacitor might still be activated because of a centrifugal switch defect. Check the current at the auxiliary winding in the control box when running the motor. For centrifugal switch repair contact the supplier. * There may be a crooked motor shaft, in which case contact the supplier. * The brake might not be correctly released; inspect the brake.
  • R
    Robert VillaAug 20, 2025
    What to do if my Tractel Tirak X Industrial Equipment motor does not run at all?
    • T
      Tyler RogersAug 20, 2025
      If the motor of your Tractel Industrial Equipment does not run, it could be due to: * A power failure. Check the fuses, power cords, connections, and starting capacitor. * Incorrect wiring. Compare the wiring with the wiring diagram. * On a 3-phase motor, it could be stopped by the phase control relay. Check the wiring.
  • H
    Hannah ShieldsAug 22, 2025
    What to do if my Tractel Tirak X Industrial Equipment motor stalls under load?
    • R
      Robin ThomasAug 23, 2025
      If your Tractel Industrial Equipment motor stalls under load, it is likely due to low voltage. Check the voltage when the motor is running and use power cords with higher cross sections.
  • J
    Jerry ClarkAug 25, 2025
    Why is my Tractel Industrial Equipment motor making abnormal noises?
    • B
      Bruce TapiaAug 26, 2025
      Abnormal motor noise in your Tractel Industrial Equipment can be caused by: * Electric parts. See causes/remedies above 1. to 5. (noise disappearing immediately, when stopping motor). * Mechanical parts. In this case, contact the supplier.
  • E
    Eric HintonAug 28, 2025
    What to do if my Tractel Tirak X motor does not start with a load?
    • M
      Melissa PollardAug 28, 2025
      If the motor of your Tractel Industrial Equipment does not start with a load, the possible causes are: * Overload. Check the load and reduce it if necessary. * The brake is not released. Check the motor with the brake released by hand. Check the brake according to para. 5.1 (2), page 14. * The voltage is too low. Check the voltage when running the motor and use power cord(s) with a higher cross section. * Incorrect wiring. Compare the wiring with the wiring diagram.
  • J
    Julie SchultzAug 30, 2025
    What to do if my Tractel Industrial Equipment is overheating when running without load?
    • R
      Ricardo HughesAug 30, 2025
      If your Tractel Industrial Equipment is overheating when running without a load, possible causes include: * Insufficient cooling. Clean the motor fan cover. * Incorrect wiring. Compare the wiring with the wiring diagram. * Voltage too high. Check the voltage and no-load current. * Short circuit in the coil. Contact the supplier.
  • E
    Erik HallSep 1, 2025
    What to do if the wire rope does not move through my Tractel Tirak X Industrial Equipment?
    • G
      Gabrielle AyalaSep 1, 2025
      If the wire rope does not move through your Tractel Industrial Equipment, it is likely that damaged wire rope is jamming the hoist. WARNING: STOP OPERATIONS IMMEDIATELY! Continued operation might cause wire rope failure. Contact the supplier.
  • J
    John Parsons DDSSep 4, 2025
    What to do if the brake does not open on my Tractel Industrial Equipment?
    • R
      Ryan GonzalezSep 4, 2025
      If the brake on your Tractel Industrial Equipment does not open, and there is a lack of a “click” switch noise when starting or stopping the hoist, it could be due to: * A defective supply conductor, brake coil, or rectifier. Have the supply conductor, current passage in the brake coil, and rectifier checked by an electrician or qualified person. * A worn brake rotor. Contact the supplier.
  • R
    Rebecca GarciaSep 6, 2025
    What to do if the BSO secondary brake automatically closes without apparent reason on my Tractel Tirak X?
    • M
      Matthew BartonSep 6, 2025
      If the BSO secondary brake on your Tractel Industrial Equipment automatically closes without an apparent reason, it could be due to: * A mechanical defect; contact the supplier. * Oversized or damaged wire rope; check the wire rope and replace it if necessary.
  • T
    Tiffany SmithSep 9, 2025
    What to do if the hoist goes up but not down with my Tractel Industrial Equipment?
    • C
      Christina TuckerSep 9, 2025
      If your Tractel Industrial Equipment hoist goes up but not down, the BSO secondary brake is likely closed because the primary wire rope has run out or has failed. WARNING: STOP DOWNWARD TRAVEL! Proceed according para. 5.4, (3), page 16.

Summary

Introduction

Manufacturer and Supplier Definitions

Clarifies roles of "Manufacturer" and "Supplier" as referenced in the manual.

General Warning and User Responsibilities

Duty to Understand and Comply

User responsibilities for understanding and following manual instructions for safe operation.

Duty to Inspect and Maintain

Importance of regular inspections and maintenance of hoist and components.

Duty to Train and Control Personnel

Need for properly trained and competent personnel to operate and maintain equipment.

Safety Beyond the Hoist System

Hoist safety depends on the entire scaffold system being compatible and safe.

Avoiding Chances and Risks

Warning against unnecessary risks and critical safety procedures to prevent accidents.

Tirak Hoist Description

Hoist Assemblies, Features, and Advantages

Details main assemblies (motor, gearbox, brakes) and hoist advantages.

Technical Data and Dimensions

Key technical specifications, dimensions, and wire rope data for hoist models.

Rigging Instructions

General Rigging Scope and Pre-Rigging Checks

Defines scope and essential checks before rigging operations.

Power Supply and Hoist Control Setup

Covers power supply, fuses, cord grounding, and hoist control.

Hoist Mounting Procedures

Details correct methods for mounting tirak™ X-series and T-series hoists.

Wire Rope Handling and Specifications

Wire Rope Specifications

Specifies required wire rope classification, construction, diameter, and breaking strength.

Wire Rope Rigging and Handling

Provides steps for rigging, termination, anchoring, and handling wire ropes.

Wire Rope Reeving Process

Explains the procedure for reeving wire rope through the hoist and secondary brake.

Wire Rope De-Rigging

Outlines steps for safely removing wire rope from the hoist after use.

Tirak Hoist Operating Instructions

Pre-Operation Checks and General Safety

Covers pre-operation checks, platform cycling, and primary/secondary brake function tests.

Normal Operation Procedures

Details standard operating procedures, including UP/DOWN motion and precautions.

Emergency Descent and Secondary Brake Action

Explains emergency descent and secondary brake actions.

Troubleshooting Common Issues

Wire Rope Drive Mechanism Troubles

Lists problems related to the wire rope drive mechanism and their solutions.

Motor and Primary Brake Troubles

Addresses motor and primary brake issues, providing causes and remedies.

Secondary Brake Troubleshooting

Details problems with the BSO/BS/BSO secondary brake and their solutions.

Inspections and Maintenance Schedule

Daily Inspection Procedures

Outlines daily checks for primary/secondary brake function and equipment condition.

Monthly and Periodic Inspections

Covers monthly inspections for wire ropes, rigging, parts, and replacement conditions.

Maintenance Recommendations

Provides guidance on hoist, wire rope, and secondary brake maintenance.

Hoist Nameplates and Labels

Understanding Nameplates

Explains information conveyed by hoist and component nameplates.

Identifying Safety and Advice Labels

Describes purpose and location of labels with safety warnings and operational advice.

Warranty and Training Resources

Warranty Details and Limitations

Outlines terms and conditions of the manufacturer's warranty, including limitations.

Training Resources for Scaffold Users

Provides contact information for scaffold safety training courses and resources.

Safe Practices for Suspended Scaffolds

General Safety Guidelines

Presents general safety rules for scaffold erection, use, and inspection.

Erection and Use Guidelines

Details procedures for rigging, wire rope, power supply, and fall arrest systems.

Tractel Tirak X Series Specifications

General IconGeneral
Operating Temperature-20°C to +50°C
WeightVaries depending on the model (consult specific model datasheet)
ApplicationsConstruction, industrial lifting
Power SourceElectric
Safety FeaturesOverload protection, emergency stop
