5
(1)
: other lifting heights available as standard supply for: 0.5 t. to 20 t. models: 4 m, 5 m, 6 m.
(2)
: for greater lifting heights, contact TRACTEL
®
.
(3)
: contact TRACTEL
®
.
Options:
- all 0.5 t. to 20 t. models can be equipped optionally with a dynamic load limiter factory-set between 1.1 and
1.9 x WLL*
- chain bag: load chain storage bag (see table above).

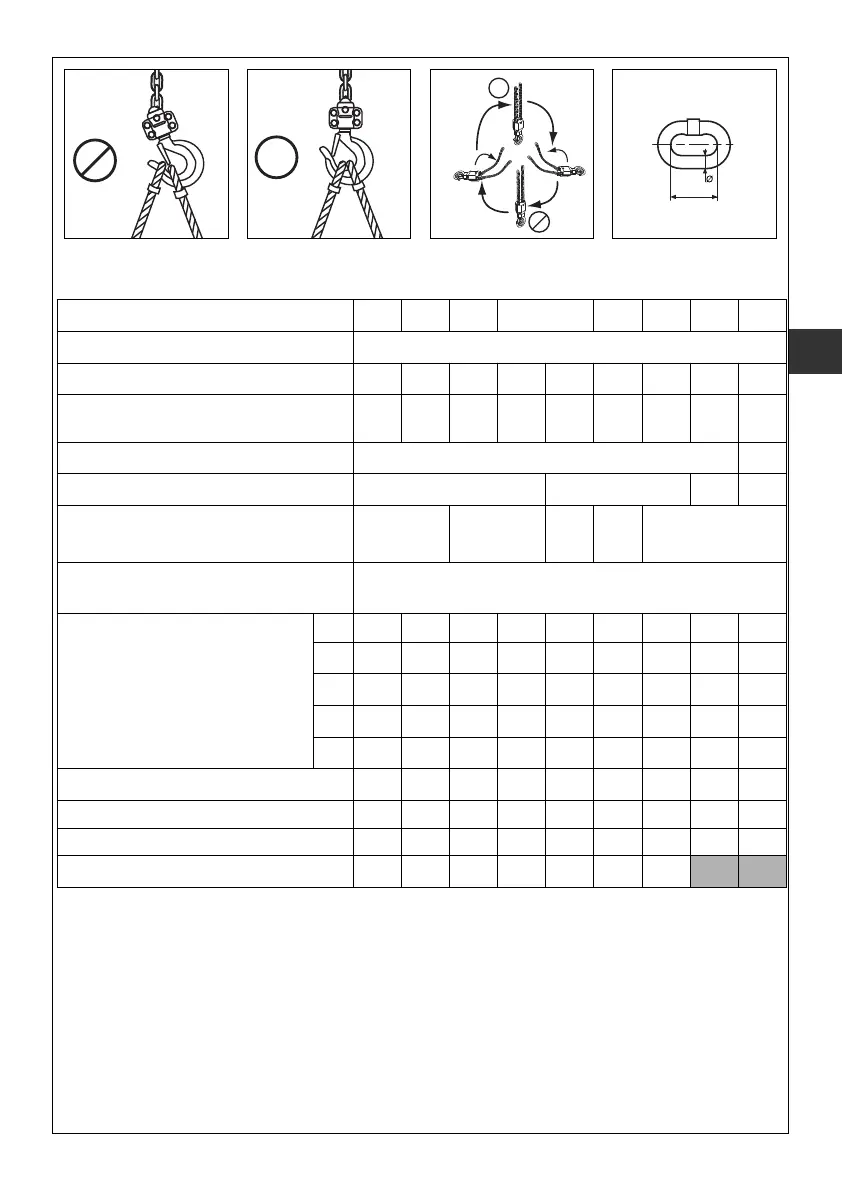

fig. 2 fig. 3 fig. 4 fig. 5
GB
WLL* (t) 0.5 1 1.5 2 3 5 10 20
Standard lifting height (m)
(1)
3
Minimum distance between hook H (mm) 270 317 399 414 440 465 618 798 890
Tensile load of hand chain at WLL* (N) 200 320 360 365 328 385 435 435 435x2
Number of hand chains 1 2
Number of strands (load chain) 1 2 4 8
Dimensions Ø x P (see fig.5) of load chain 6x18 8x24 6x18 8x24 10x30
Dimensions Ø x P (see fig.5) of hand chain
(mm)
5x25
Dimensions (mm)
A 137 162 183 194 189 220 288 384 625
B 137.5 146.5 170 170 146.5 170 190 190 209
C 81 84 90 90 84 90 100 100 107
D 28 26 32,5 32 32 37 46 50 81
Ø 35 35.5 45 42.5 42.5 50 64 85 110
Net weight (kg) 9.5 11.7 16.9 18.8 14.8 21.4 42 81.9 173.5
Additional weight by lifting m (kg) 1.7 1.7 2.3 2.3 3.4 3.7 5.3 9.7 19.4
Maximum lifting height (m)
(2)
30 55 70 85 55 80 90 40 20
Maximum lifting height (m) with chain bag
option
(3)
35 35 30 30 20 20 12
