1. DESCRIPTION OF THE HOIST
The tralift™ hoist is designed for lifting and
lowering a load suspended on a chain (load
chain) by manually actuating a second chain
(hand chain); it is also used to maintain a load
suspended.
The tralift™ hoist is secured to a fixed anchor
point or to a moving trolley. Information about
suspension trolleys can be obtained from
TRACTEL
®
on request.
Manufactured from high-quality materials, the
tralift™ hoist is a robust tool. The hoist has a
compact design, is light-weight, portable and
easy to install.
The tralift™ hoist is supplied equipped with a
load chain (item 1, fig. 1) and a hand chain
(item 7, fig. 1) compatible for a standard lifting
height of 3 m.
The load chain is formed by one or several
strands (see §2 technical specifications),
equipped with a lifting hook (item 2, fig. 1) on
its load-end side ; on the other end (slack
strand side), the load chain is secured to a low
limit stop (item 4, fig. 1) itself secured to the
hoist.
The tralift™ hoist complies with the
requirements of directive 2006/42/CE and is
designed to ensure a minimum mechanical
strength of 4 x WLL*.
The tralift™ hoist is designed and built to
withstand dynamic testing at 1.1 x WLL and
static testing at 1.5 x WLL.
Description of a standard delivery: the hoist
is supplied in a cardboard package equipped
with its hand and load chains, and comes
with its user manual and CE compliance
certificate.

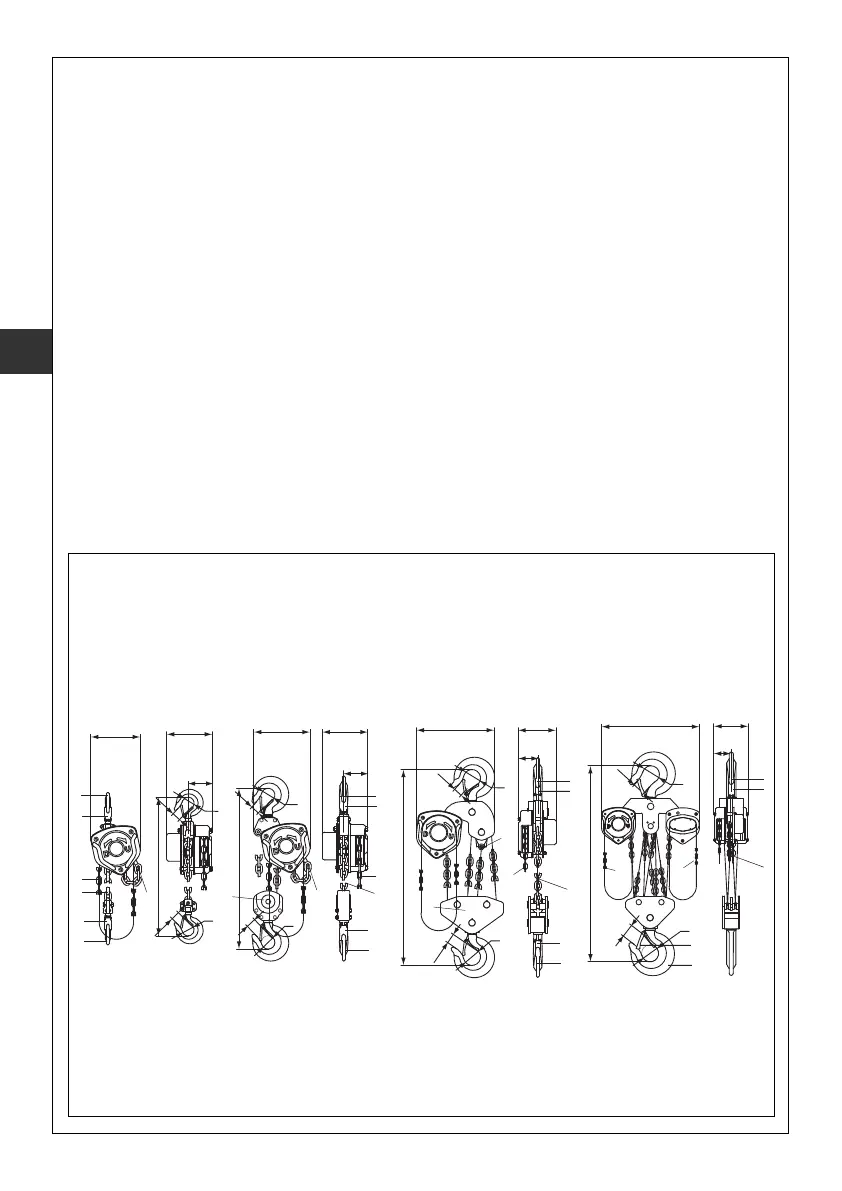

2. TECHNICAL SPECIFICATIONS
GB
H min
B
C
D
A
Ø
D
Ø
D
H min
A
B
C
A
B
H min
D
Ø
H min
A
B
Ø
D
Ø
Ø
D
C
C
Ø
D
Ø
D
5
4
3
6
7
1
6
2
4
4
5
6
5
6
5
6
7
7
7
7
1
1
1
6
2
6
2
6
2
3
1: load chain
2: lifting hook
3: pulley block
4: low limit stop
5: suspension hook
6: safety catch
7: hand chain
WLL*:
0.5 t./1 t./1,5 t./2 t.
WLL*:
2 t./ 3 t./5 t.
WLL*:
10 t.
WLL*:
20 t.
fig. 1
