11
TRAEGER.COM

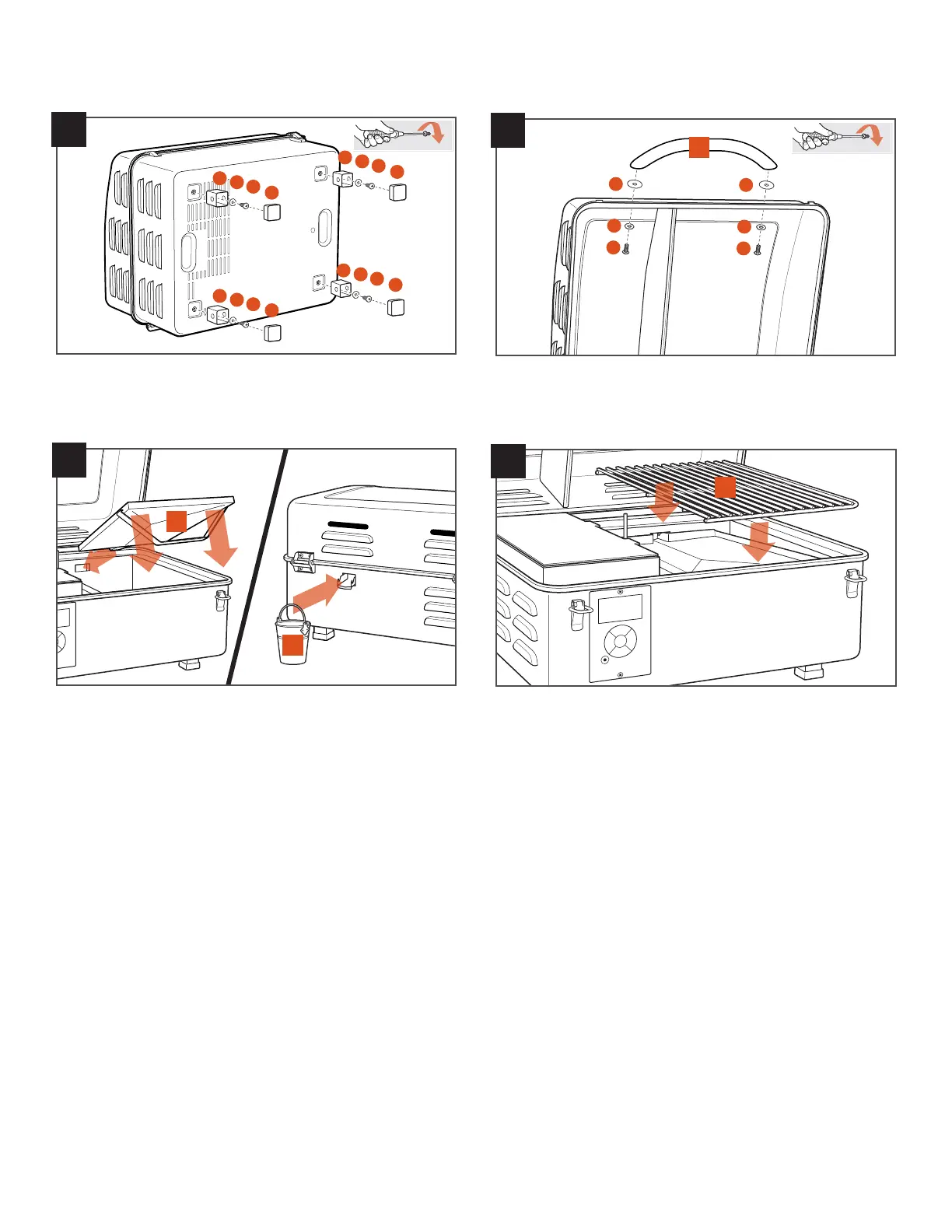

Install feet.
Install lid handle.
NOTE: Handle bolts, washers, and Mica washers are shipped
pre-installed on the handle, and should be removed for assembly.
2
Install grease drip tray and bucket.
NOTE: Be sure the grease drain spout on the grease drip tray extends
through the opening in the back of the grill.
IMPORTANT: Always be sure to hang the grease bucket on the spout
during use!
Install porcelain-coated grill grate.
4
3
1
2
4
5
3
B
A
C
D
B
A
C
D
B
A
C
D
B
A
C
D
B
A
E
B
A
E
