Monitor Display Icons
Channel Indicator

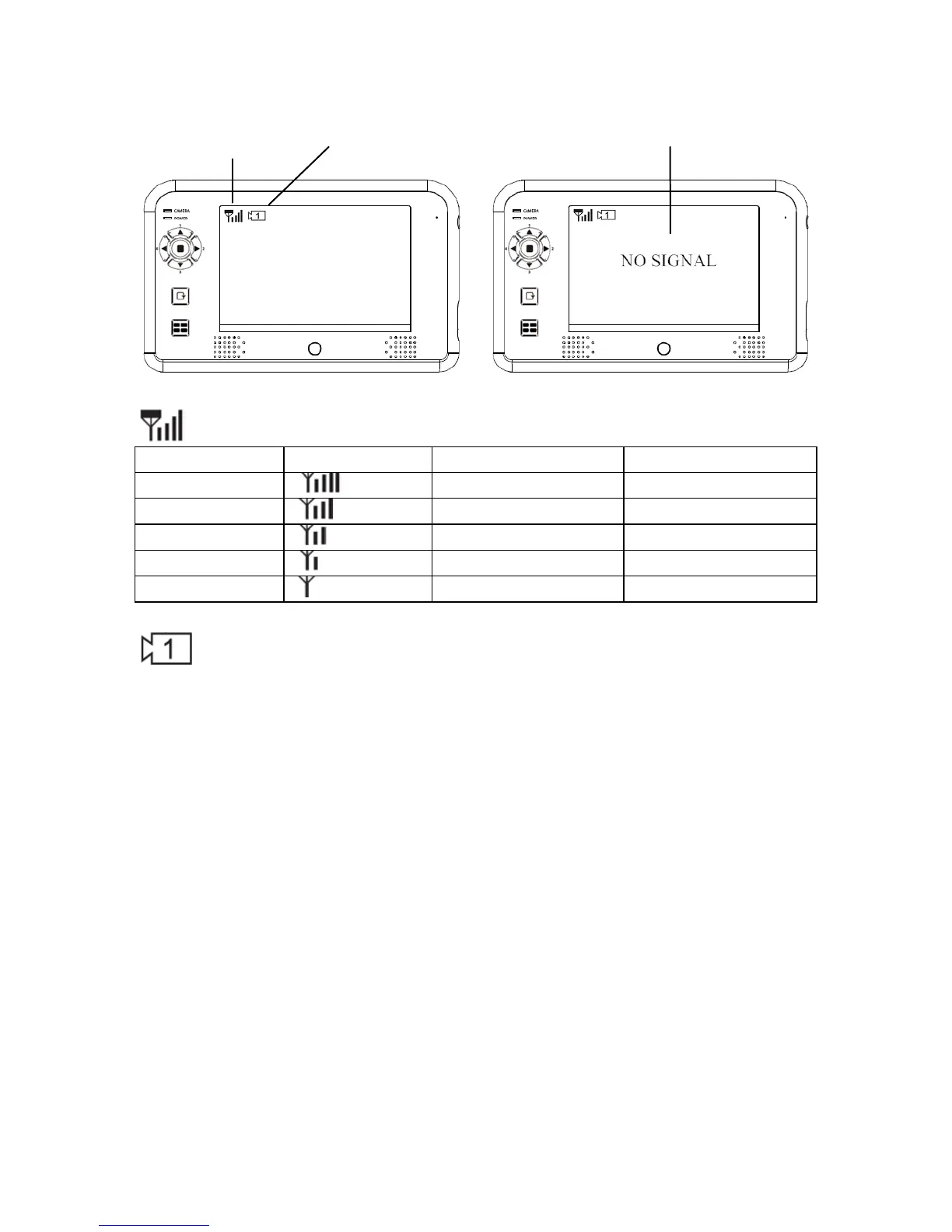

Signal Indicator shows signal strength as below:
Signal Level Indicator VGA Frame Rate QVGA Frame Rate
Perfect 5~10 fps 15~30 fps
Good 3~5 fps 12~20 fps
Fair 2~4 fps 8~15 fps
Low 0~1 fps 0~4 fps
Zero 0 fps 0 fps
Channel Indicator displays the current/
active
camera. Status Indicator ('No Signal') appears if the
monitor does not receive a signal from the camera.
Signal Indicator
Status Indicator
