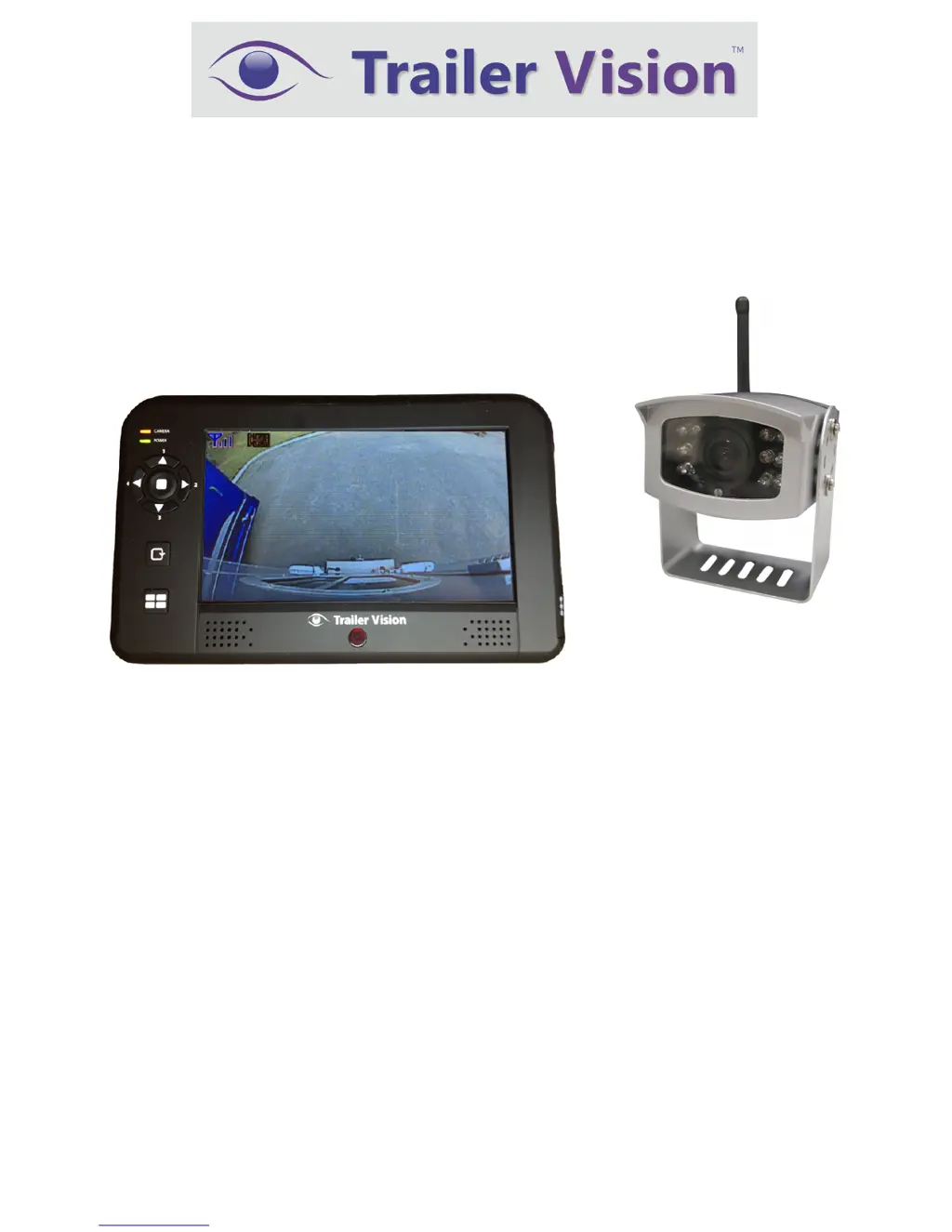

Digital Wireless Camera System

Installation and User Manual

Digi-Max2

Version 1.0

PLEASE READ CAREFULLY AND SAVE

This manual contains important information about this

product’s operation. If you are installing this product for others,

you must leave this manual, or a copy, with the end user.

Our Focus - Your Peace of Mind

Questions and Answers:

J
Jasmine AlexanderAug 1, 2025
What to do if Trailer Vision Security System shows 'No Signal'?
- A
  alvaradotammyAug 1, 2025
  If your Trailer Vision Security System monitor displays a 'No Signal' message, it could be due to a couple of reasons. First, check that the corresponding camera(s) are receiving power by inspecting the lighting circuit and ensuring power is available at the camera. Also, verify the camera wiring, paying close attention to the correct polarity connections. Another potential cause is that the channel or monitor isn't paired with the camera. To pair them, select reverse, turn the hand brake ON, and then press the camera pairing button.
C
Charles MooreAug 7, 2025
Why is the Trailer Vision Security System signal low or unstable?
- A
  Anne SmithAug 7, 2025
  A low or unstable signal in your Trailer Vision Security System can stem from a couple of issues. The first is the antenna's directional limitation. Try adjusting both the camera antenna and the monitor position to optimize the signal. Secondly, strong nearby radio signals might interfere. To resolve this, reposition any WiFi routers or similar devices away from the camera and/or monitor.
L
lawrencevictoriaAug 13, 2025
How to adjust brightness on Trailer Vision Digi-Max2?
- A
  ayaladavidAug 13, 2025
  If the image on your Trailer Vision Security System monitor is too dim or too bright, the monitor brightness may be incorrectly adjusted. To correct this, press the [OK] button, navigate to the menu, enter [System Setup], and then adjust the [Brightness].
A
Andrew MorrisAug 19, 2025
What to do if Trailer Vision Digi-Max2 image is frozen?
- T
  twilliamsAug 19, 2025
  If the image on your Trailer Vision Security System is frozen and the receiver function buttons are unresponsive, it indicates a system crash. To restore the system, use a pin or similar object to press the [Reset Switch].
