Table 19. Heating Air Volume (CFM)
Switch Settings
Selection
4YCZ5024E1 4YCZ5036E*070 4YCZ5036E*090 4YCZ5048E*090 4YCZ5048E*115 4YCZ5060E*115
Nominal Airflow
Low
Stage
High
Stage
Low
Stage
High
Stage
Low
Stage
High
Stage
Low
Stage
High
Stage
Low
Stage
High
Stage
Low
Stage
High
Stage
7 – OFF 8 – OFF A 600 850 725 1000 825 1100 1075 1375 1050 1500 1375 1800
7 – ON 8 – OFF B 625 900 775 1075 875 1175 1100 1450 1100 1575 1450 1900
7 – OFF 8 – ON C 650 925 850 1150 — — 1150 1500 1150 1625 — —
7 – ON 8 – ON D 700 975 925 1250 — — 1200 1575 1200 1700 — —
Refrigerant Circuit

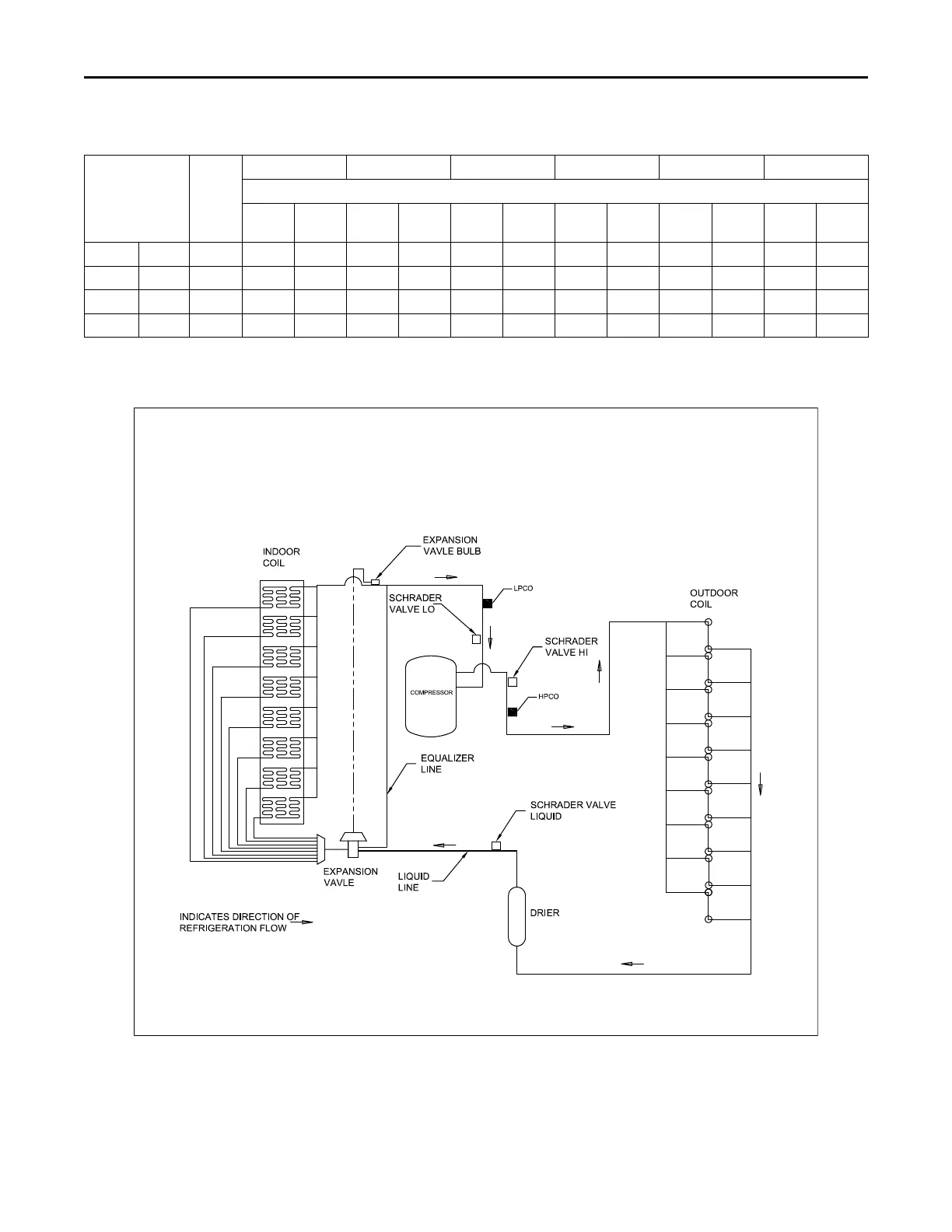

Cooling Refrigeration Cycle
