Location, Dimensions, and Leveling
General Notes
• Carefully handle the wall sleeve.
• The cardboard stiffener inside the wall sleeve (if present) and the rear protective panel must
remain in place until ready to install the chassis to ensure case rigidity.
• If using a sub-base, it may be better to assemble the sub-base to the wall sleeve before
securing it to the wall.
Wall Sleeve Location
As a general rule, the air conditioner should be located in an outside wall to ensure proper
distribution of conditioned air. Locate it in a portion of the wall where there is no electrical wiring,
plumbing, or obstructions immediately inside or outside.
NNoottee:: The unit generates condensate in some weather conditions so consideration for
management of that water may be important.

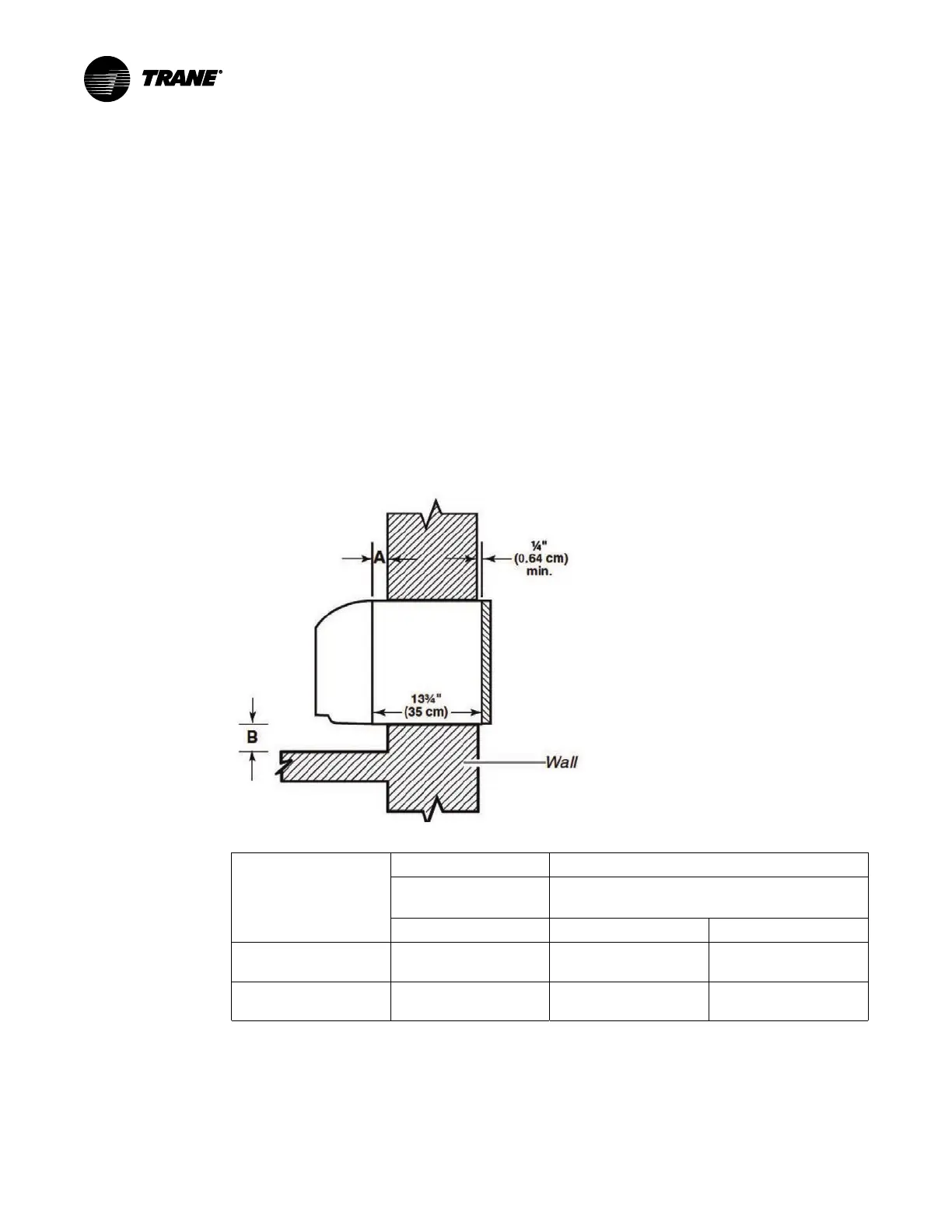

Wall Sleeve Dimensions
Dimensions
A B
Allow for wall
finishing
Allow for floor finishing
Minimum Minimum Maximum
No Accessories
1/4”
(0.64 cm)
1/4”
(0.64 cm)
―
With Subbase
2¼"
(5.7 cm)
3½"
(8.9 cm)
5”
(12.7 cm)
Note: If more than one accessory is to be used, use the maximum dimension. If the wall thickness is more than 13¾” (35
cm) - (A+¼” [0.64 cm]), a sleeve extension must be used.
