Outdoor Unit Installation
Rigging and installation
• Inasmuch as the center of gravity of the unit is not precisely its physical center, take care when
lifting the unit with the use of slings
• Do not touch the fan with hands or with any other objects
• Do not pitch the unit more than 45° and do not place it on its side.
• Mount the unit on a concrete base following proper specifications
• Use screws to install the unit securely in order to prevent it from toppling over in case of strong
winds or brusque movements

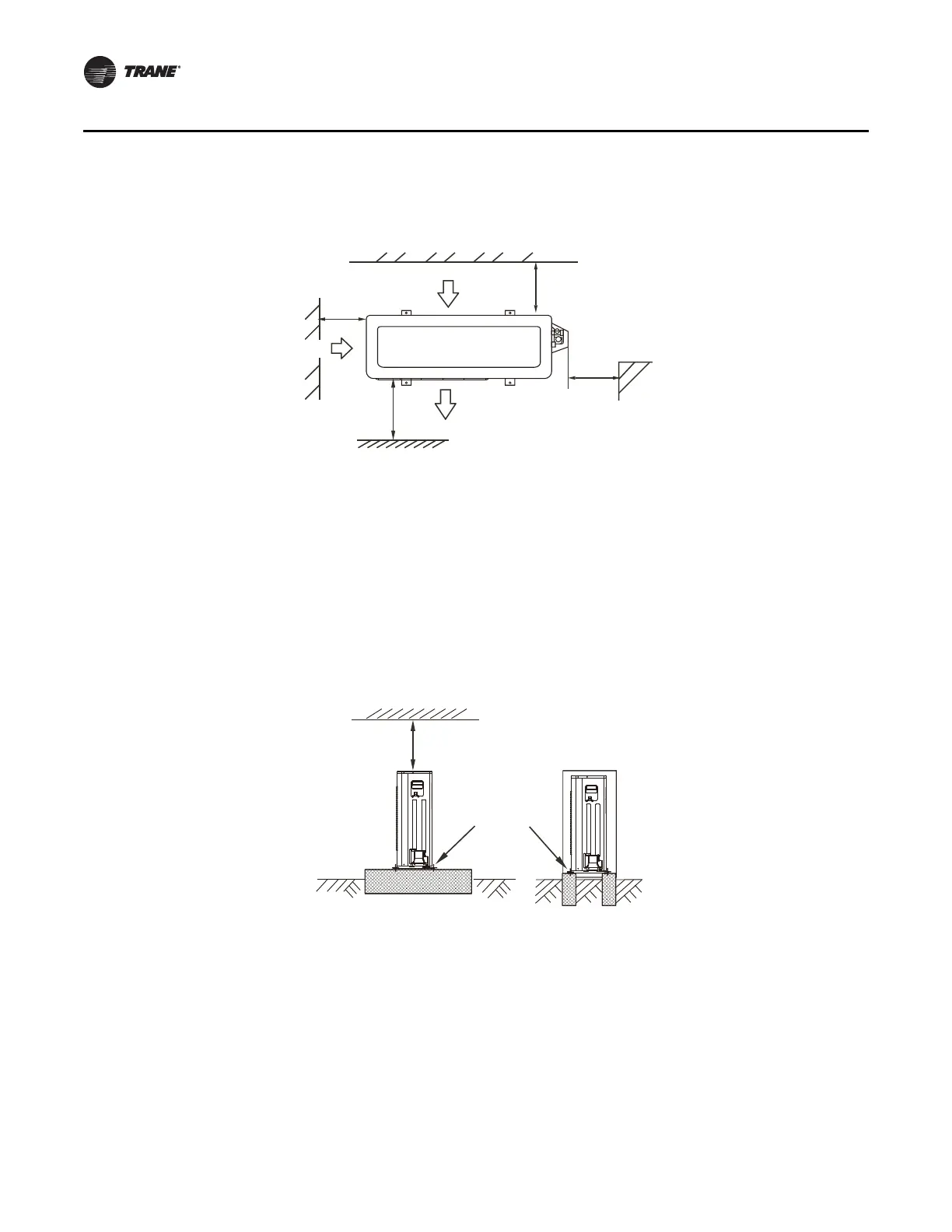

>30cm
/11.81in
>30cm
/11.81in
>200cm
/78.74in
>60cm
/23.62in
(Wall)
Control section
Outgoing air
Air inlet
M
P
Incoming
air
N
>60cm
/23.62in
Fix firmly with
screws
