Page 4
Installer’s Guide
Step 2—Determine Unit Clearances

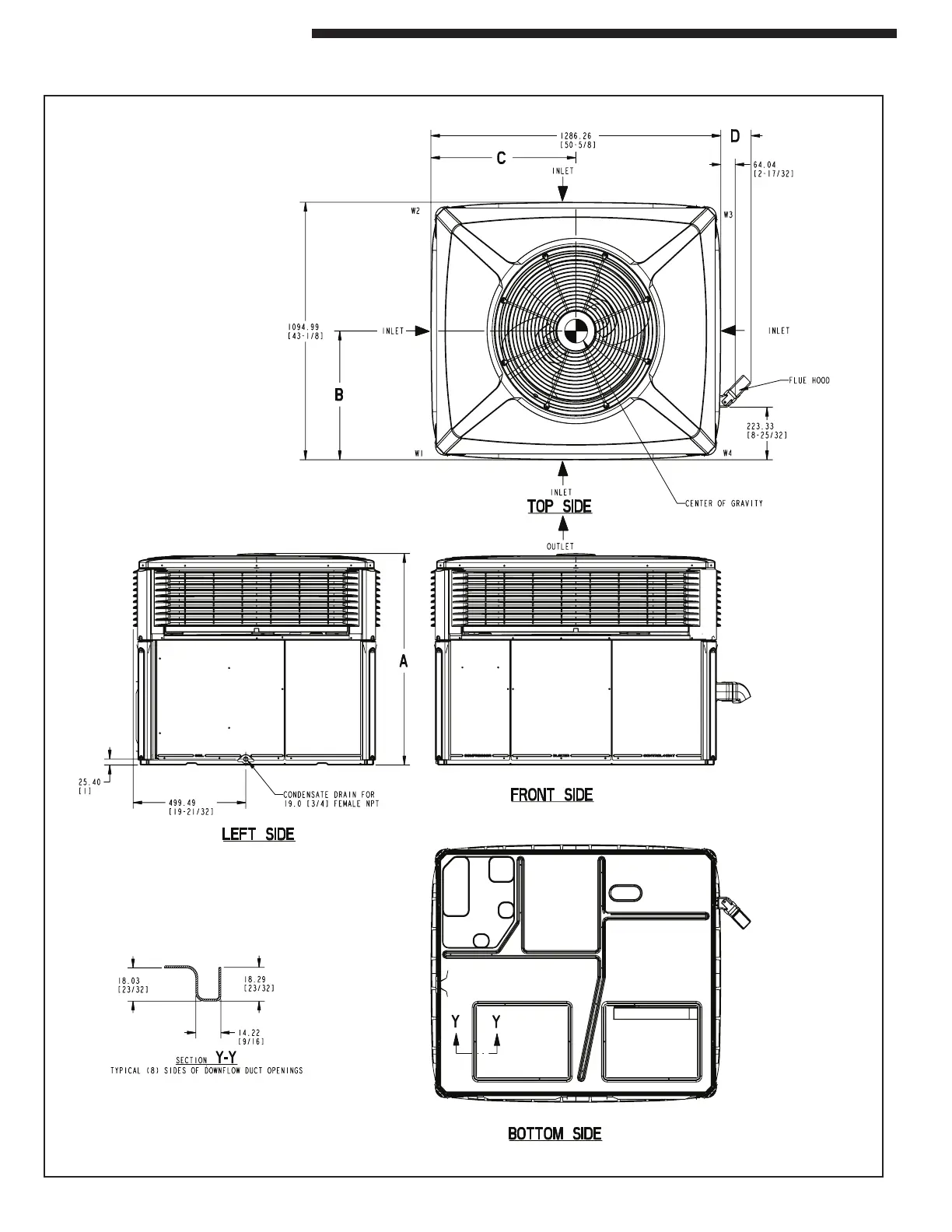

Figure 1. 4DCY4024 through 4DCY4036 (1 of 3)
Figures 1 through 6 show the unit critical dimensions.
NOTE: The view labed
"Bottom Side" represents
the base as viewed looking
up from underneath the
unit.
