Trane 4TTR5018E - Section 2. Unit Location Considerations

18-AC76D1-5 3
D
H
W
60’
Max
Vertical
Change
Standard
Line Set
60’ Max
Line Length
60’
Max
Vertical
Change
Table 2.1
Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
4TTR5018E 29 x 30 x 33 173
4TTR5024E 29 x 30 x 33 174
4TTR5030E 33 x 34 x 37 201
4TTR5036E 37 x 34 x 37 193
4TTR5042E 41 x 34 x 37 235
4TTR5048E 45 x 34 x 37 245
4TTR5049E 45 x 34 x 37 267
4TTR5060E 45 x 34 x 37 248
* Weight values are estimated.

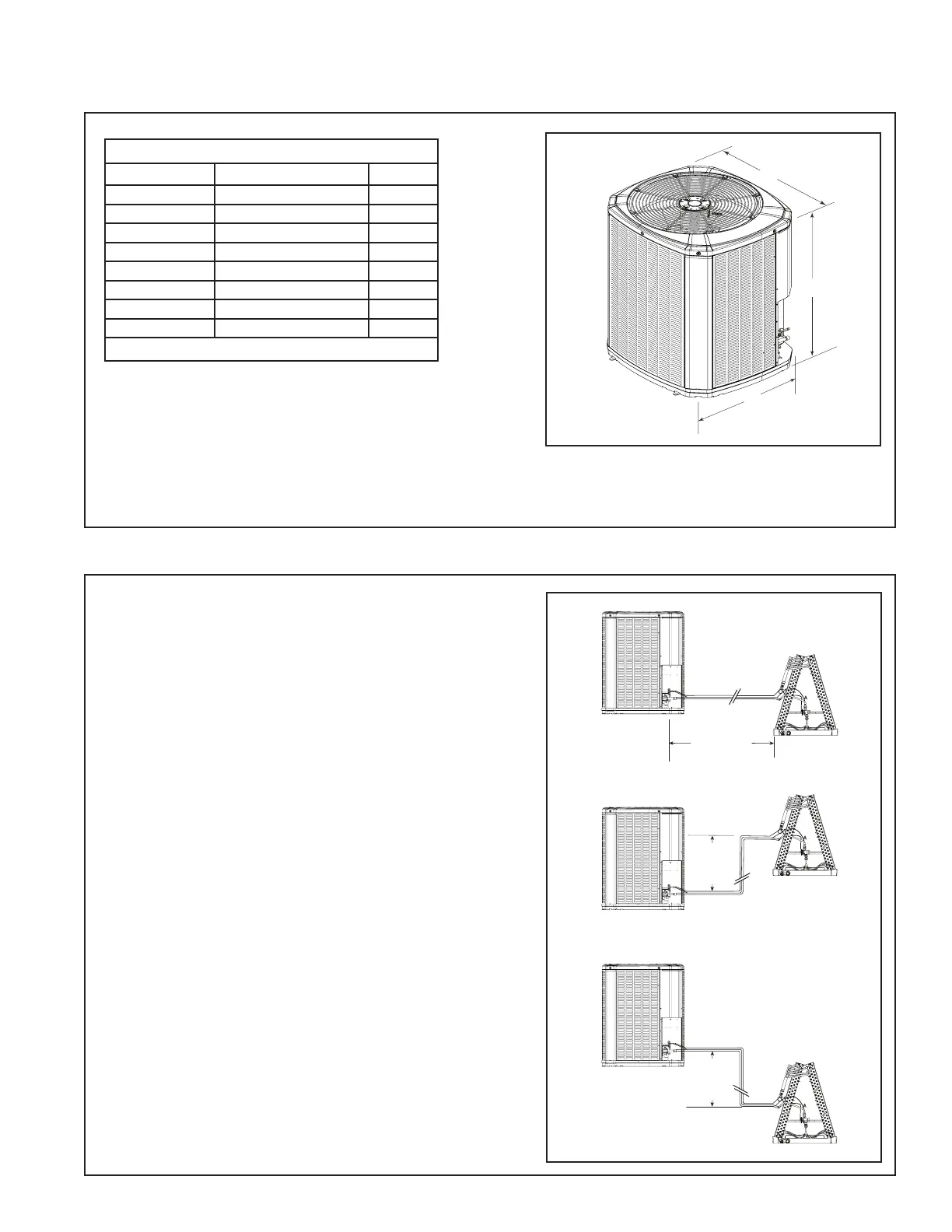

Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
1. The maximum length of refrigerant lines
from outdoor to indoor unit should NOT
exceed sixty (60) feet.
2. The maximum vertical change should not
exceed sixty (60) feet.
3. Service valve connection diameters are
shown in Table 5.1.
Note: For line lengths greater than sixty (60)
feet, Refer to Refrigerant Piping Application
Guide, SS-APG006-EN or Refrigerant Piping
Software Program, 32-3312-03 (or latest revi-
sion).
When mounting the outdoor unit on a roof, be
sure the roof will support the unit’s weight.
Properly selected isolation is recommended to
alleviate sound or vibration transmission to the
building structure.
Please refer to application bulletin SSC-
APG002-EN for detailed mounting information.
