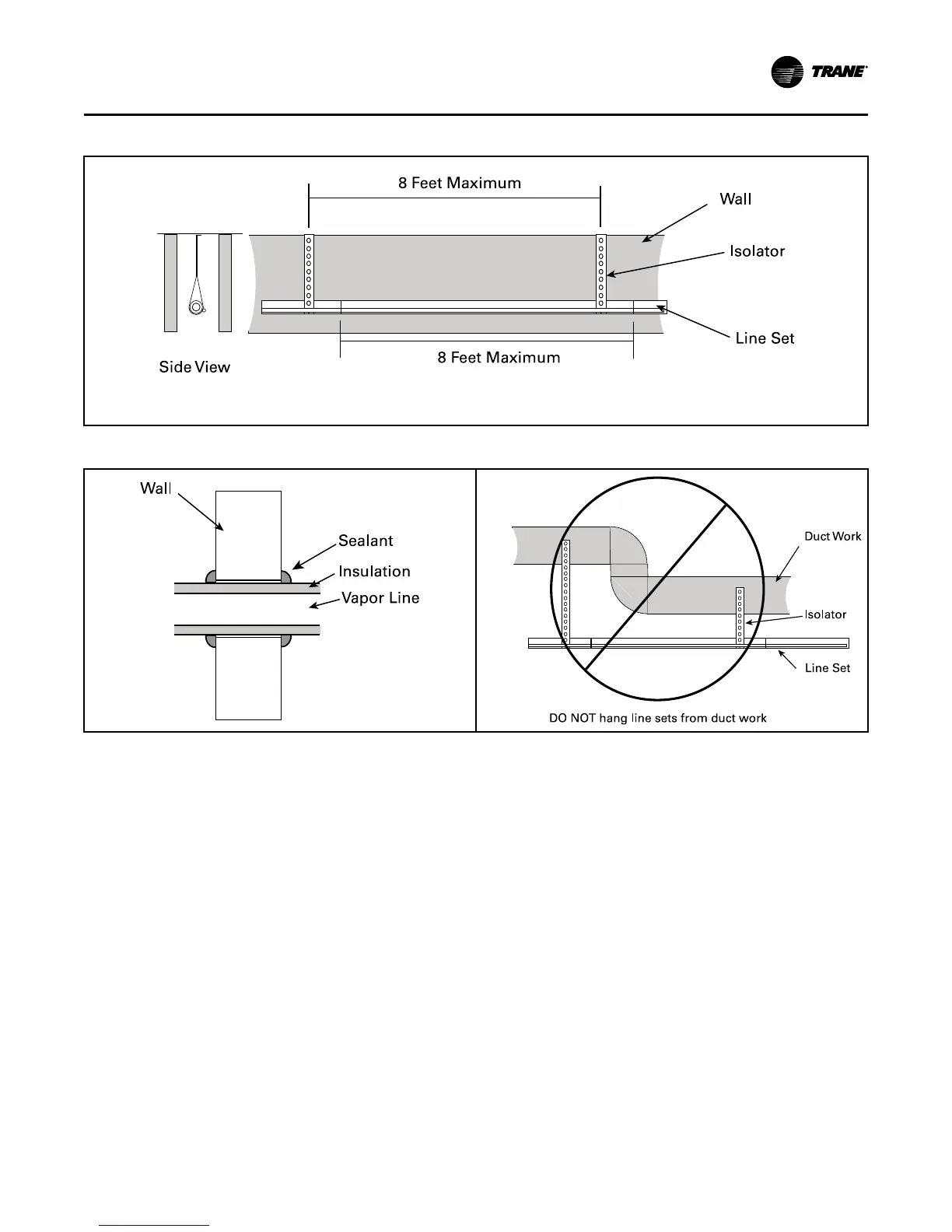

Table 13. Isolation In Wall Spaces
Side View
Isolator
Line Set
8 Feet Maxim um
Wall
8 Feet Maxim um
Secure Vapor Line from joists using isolators every 8 ft. Secure Liquid Line directly to insulated Vapor Line using tape, wire, or other appropriate
method every 8 ft.
Table 14. Isolation Through Wall
Wall
Sealant
Insulation
Vapor Line
Duct Work
Isolator
Line Set
DO NOT hang line sets from duct work
RReeffrriiggeerraanntt LLiinnee CCoonnssiiddeerraattiioonnss
