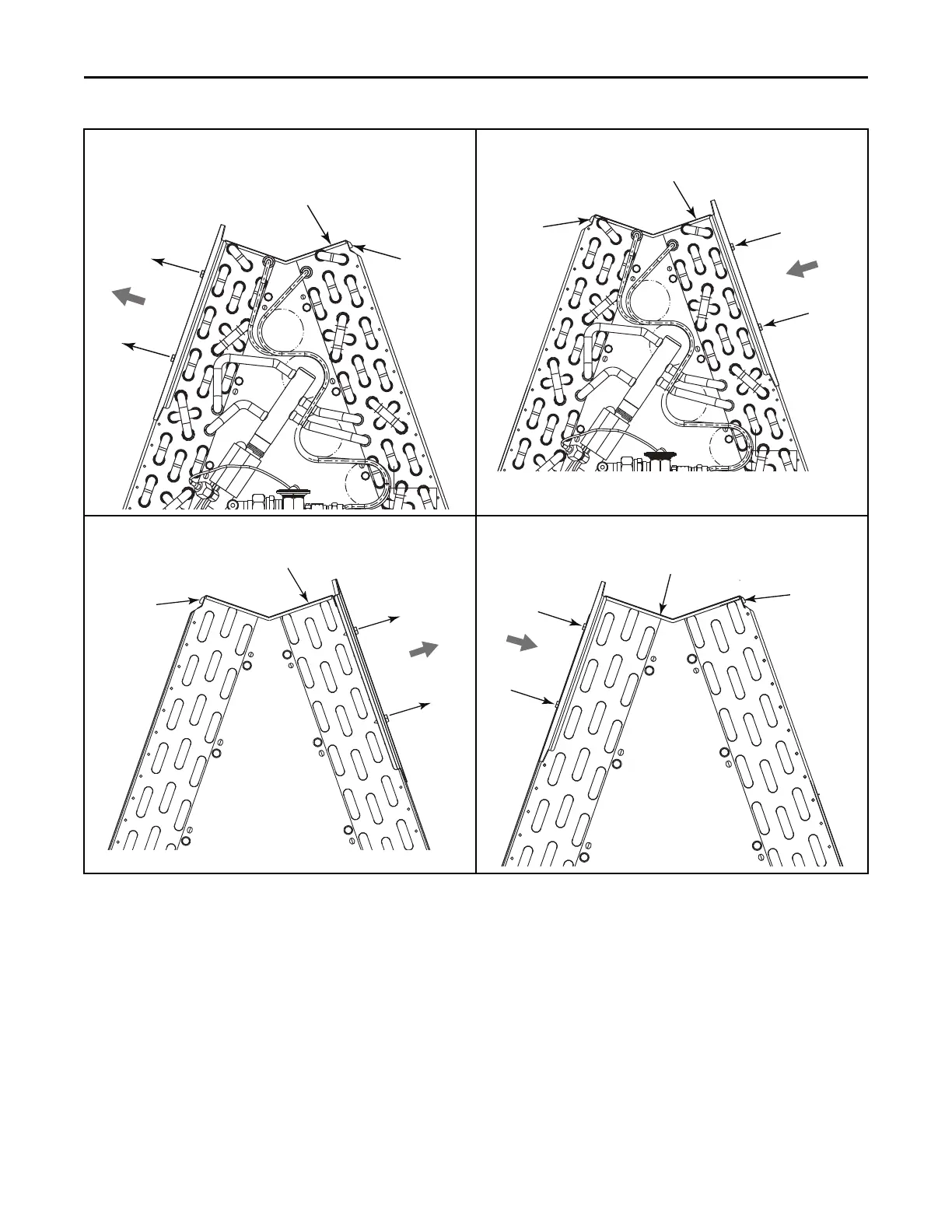

Figure 20. A4AH6E19 — Front view
Note: 180 degree rotation of top baffle not required for coils without
top cap tabs.
Top Cap
Snap
Tab
Feature
Remove 2 screws
and water diverter
bracket
Figure 21. A4AH6E19 — Front view
Top Cap
Snap
Tab
Feature
Replace 2 screws
and water diverter
bracket
Figure 22. A4AH6E19 — Rear view
Remove 2 screws
and water diverter
bracket
Snap Tab
Feature
Top Cap
Figure 23. A4AH6E19 — Rear view
Replace 2 screws
and water diverter
bracket
Snap Tab
Feature
Top Cap
CCooiill CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
