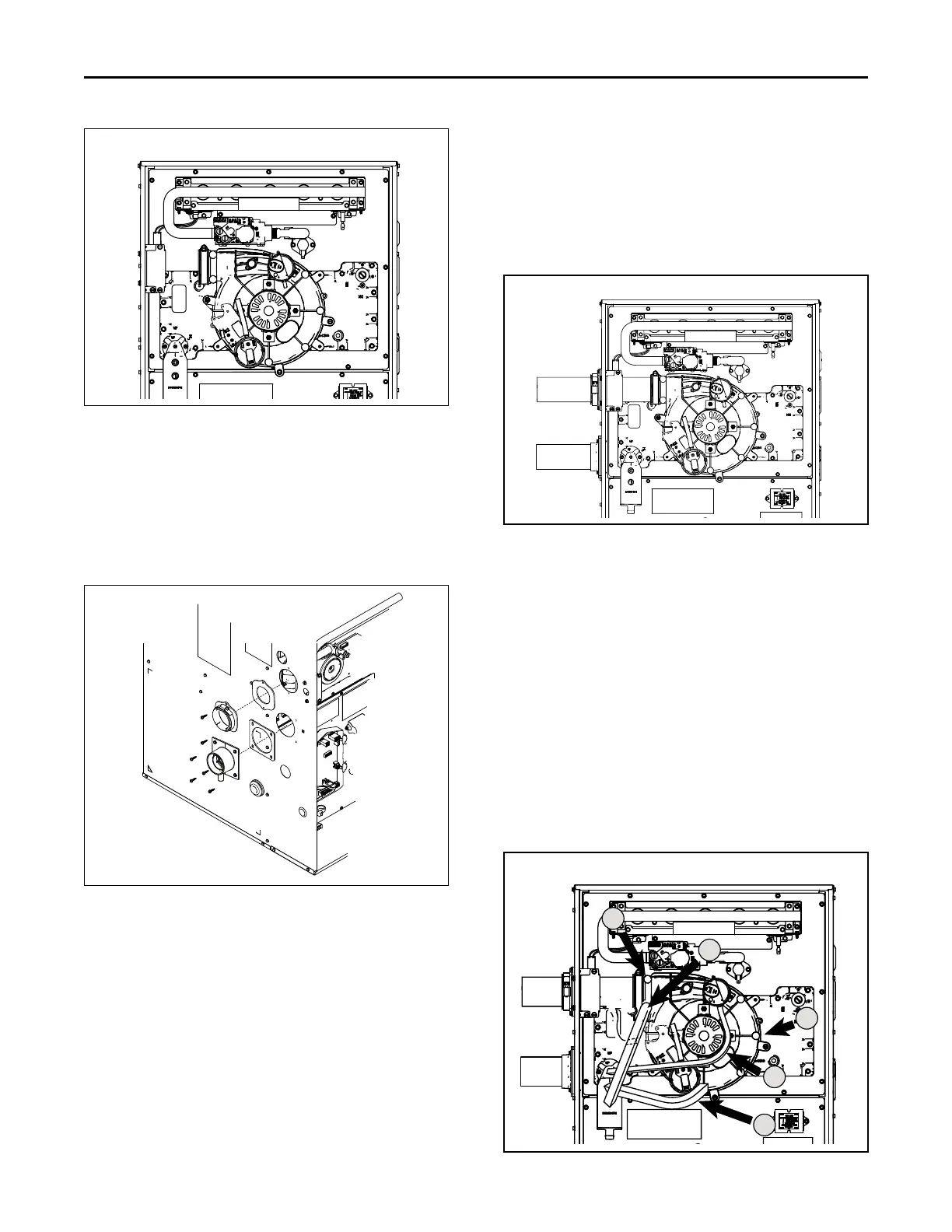

11. Attach the vent outlet gasket to the vent outlet.
12. Install vent outlet to top of cabinet using 2 screws
supplied in the dock pack.
13. Install vent inlet gasket and vent inlet using 4
screws supplied in the dock pack.
14. Install the grommet for the condensate drain tube.
The drain may be located on either side of the
cabinet.
15. Slide PVC through vent outlet adaptor and insert
into inducer outlet.
16. Twist to insure PVC is fully inserted.
17. Tighten the two clamps.
18. Install the combustion air inlet pipe.
NNoottee:: The vent outlet adapter is used for strain relief
against the weight of the venting. The clamp
should be tightened after the internal connection
is made.
NNoottee:: If required, transition to larger venting within 2'
of the cabinet. An 2" x 3" offset coupling is
required if the transition is made in a horizontal
plane. Use coupling CPL01544 (Canadian
applications may use BAYREDUCE to meet ULC-
S636 requirements.) See Horizontal Venting
section for proper orientation of 2” x 3” offset
coupling.
19. Remove port cap at bottom of inducer and connect
inducer condensate tubing. Connect other end of
inducer condensate tubing to top port on the
condensate trap. Cut tubing to length, if necessary.
20. Install previously removed port cap onto bottom
port of the inducer. (As viewed in upflow)
21. Connect condensate pressure switch tubing to
pressure port on the condensate trap.
IImmppoorrttaanntt:: Trim the condensate pressure switch
tubing to length to ensure there is no
sag or trap created.
22. Remove port plug from rain gutter and install in
new position on opposite side of the rain gutter.
23. Connect rain gutter condensate hose to the rain
gutter and the lower port of the condensate trap.
Cut to length, if necessary.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
