A951X-SVX001-1D-EN
79
IImmppoorrttaanntt:: Cut to length to ensure there is no sag
or trap created.
30. Remove port plug from rain gutter and install in
new position on opposite side of the rain gutter.
31. Connect rain gutter condensate hose to the rain
gutter and the lower port of the condensate trap.
Route rain gutter condensate hose to the right of
the inducer motor.

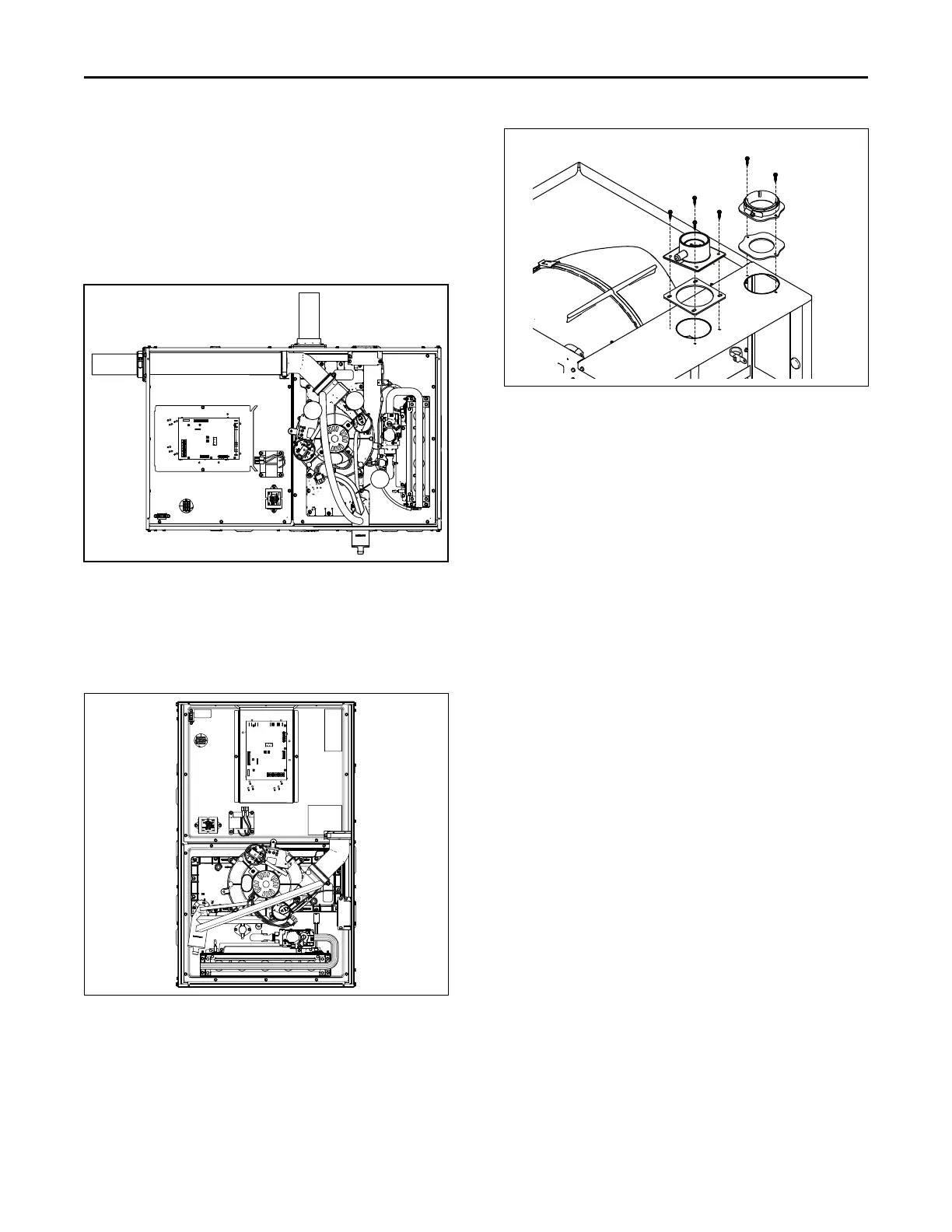

Downflow Furnace - Top Vented
Combustion Air
No changes need to be made to the inducer when
installing the downflow furnace with the combustion
air vented through the top.
1. Attach the vent outlet gasket to the vent outlet.
2. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
3. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
4. Slide PVC pipe through vent outlet adaptor and
insert into inducer outlet.
5. Twist to insure PVC is fully inserted.
6. Tighten the two clamps.
7. Install the combustion air inlet PVC pipe.
NNoottee:: The vent outlet adapter is used for strain relief
against the weight of the venting. The clamp
should be tightened after the internal connection
is made.
NNoottee:: If required, transition to larger venting within 2'
of the cabinet. CPL01544 – 2" x 3" offset coupling
may be used and is factory supplied with 120
MBTUH furnaces. Canadian applications may
use BAYREDUCE to meet ULC-S636
requirements.
IImmppoorrttaanntt:: Trim the pressure switch tubing to length to
ensure there is no sag or trap created.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
To Next Page
