Trane A951X040BD3SAC - Belly Band Location

A951X-SVX001-1D-EN
85

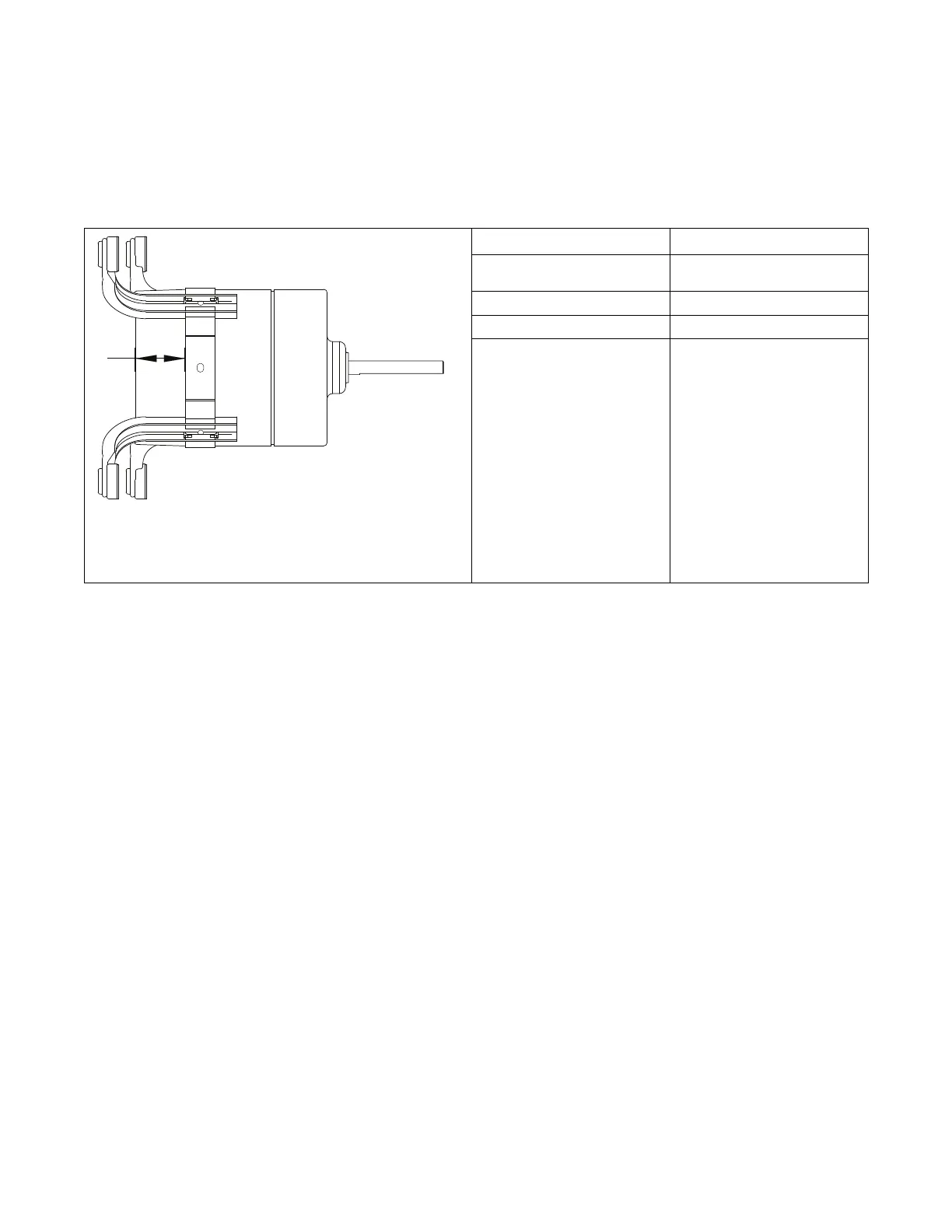

Belly Band Location
Distance from belly band to the back side off motor for
minimum vibration
A
Blower housings and wheel removed
from view for clarity.
Furnace Model Number
Dimension “A” (inches)
A951X060BU4SAC
A951X080BU4SAC
2.65
A951X080BD4SAC 3.54
A951X100CU5SAC 3.81
A951X040BU3SAC
A951X040BD3SAC
A951X060BD3SAC
A951X080CU5SAC
A951X100CD5SAC
A951X120DU5SAC
A951X120DD5SAC
3.91
