70
A951X-SVX001-1D-EN

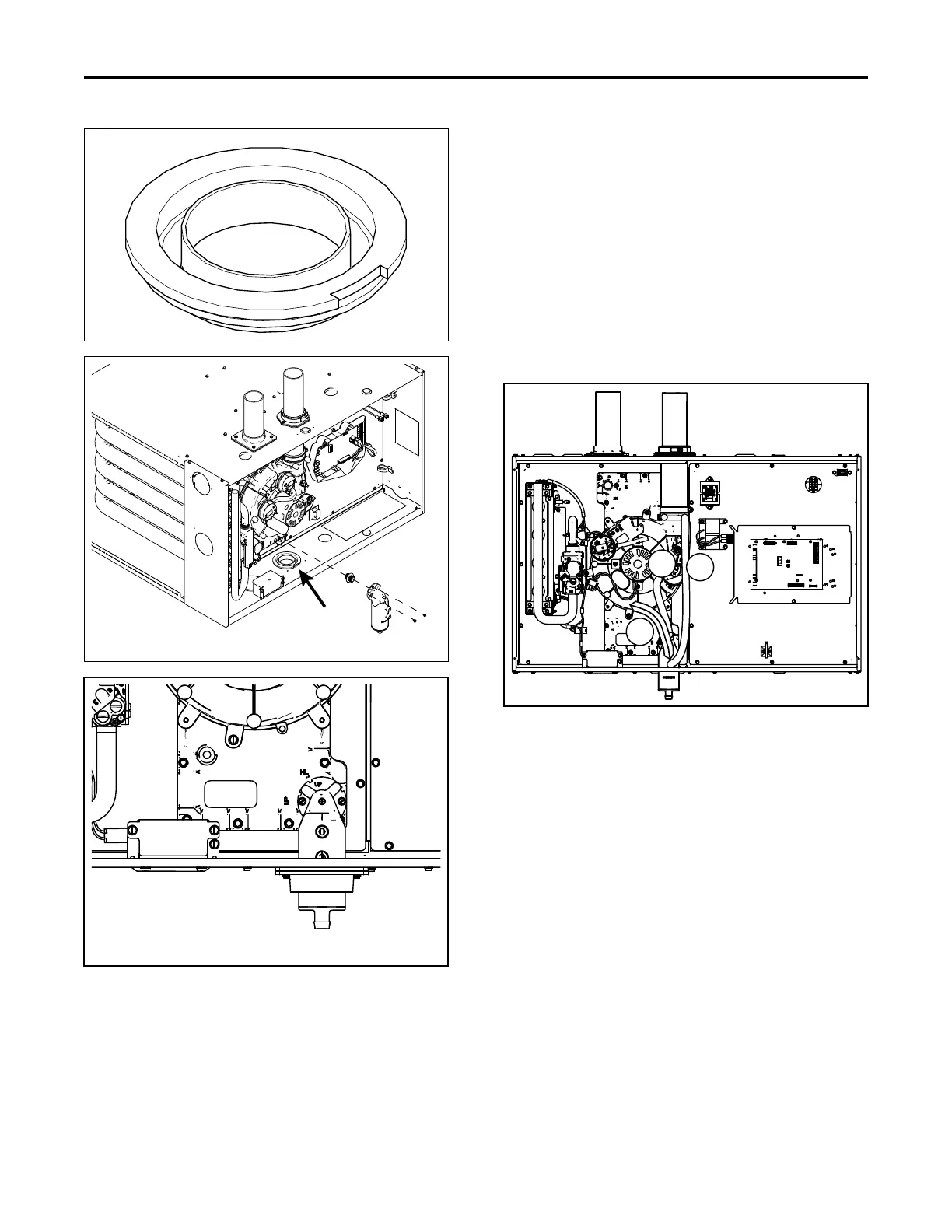

24. Remove port cap on left of inducer and connect
inducer condensate tubing. Connect other end of
inducer condensate tubing to top port on the
condensate trap. Cut tubing to length, if necessary.
25. Install previously removed port cap onto bottom
port of the inducer.
26. Connect condensate pressure switch tubing to
pressure port on the condensate trap.
IImmppoorrttaanntt:: Trim the condensate pressure switch
tubing to length to ensure there is no
sag or trap created
27. Connect rain gutter condensate hose to the rain
gutter and the lower port of the condensate trap.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
