A951X-SVX001-1D-EN
77

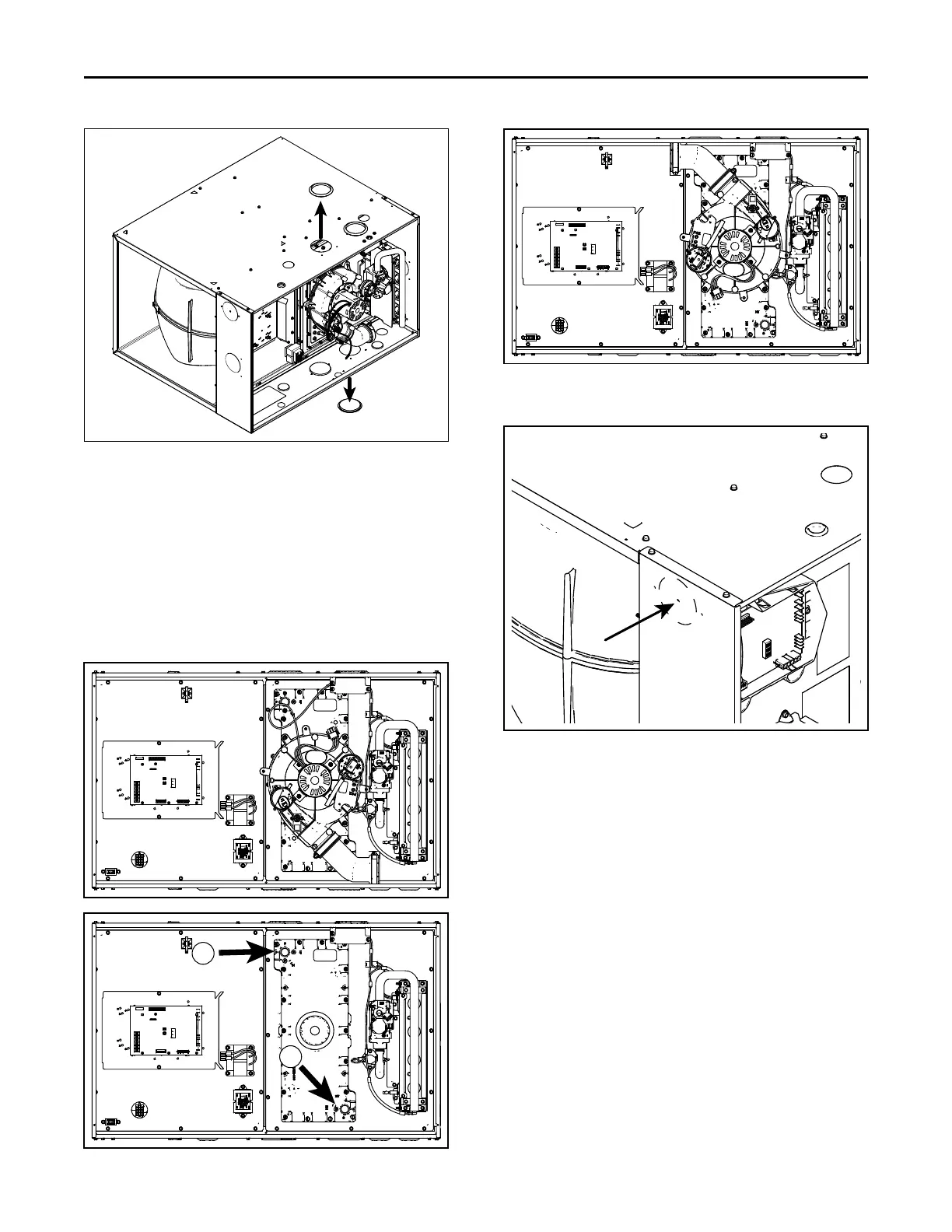

11. Remove three inducer screws.
12. While the inducer is loose, remove condensate
drain plug from top right location on cold header.
13. Place condensate drain plug onto the cold header
outlet located on the bottom left of the cold header.
14. Rotate the inducer 180 degrees so that the elbow is
pointing towards the left.
15. Use the three inducer screws to reattach the
inducer to the cold header. Torque to 30 in.-lbs. Do
not overtighten.
16. Cut 3” hole in bottom panel using large dimple as
guide.
17. Attach the vent outlet gasket to the vent outlet.
18. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
19. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
NNoottee:: The vent outlet adapter is used for strain relief
against the weight of the venting. The clamp
should be tightened after the internal connection
is made.
NNoottee:: If required, transition to larger venting within 2'
of the cabinet. An 2" x 3" offset coupling is
required if the transition is made in a horizontal
plane. Use coupling CPL01544 (Canadian
applications may use BAYREDUCE to meet ULC-
S636 requirements.) See Horizontal Venting
section for proper orientation of 2” x 3” offset
coupling.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
