Section 6. Unit Location Considerations
6.1 Unit Dimensions and Weight
Model
Number
H x W x D
in.
**Blower
Compartment
in.
Unit
Net Weight
lbs.
TAM4A0A18S11SB
*AM4A0A18S11SA
49.9 x 17.5 x 21.8 22 113
TAM4A0A24S21SB
*AM4A0A24S21SA
49.9 x 17.5 x 21.8 22 116
TAM4A0A30S21SB
*AM4A0A30S21SA
49.9 x 17.5 x 21.8 22 117
TAM4A0A36S31SB
*AM4A0A36S31SA
49.9 x 17.5 x 21.8 22 120
TAM4A0B42S31SB
*AM4A0B42S31SA
55.7 x 21.3 x 21.8 22 133
TAM4A0C48S41SB
*AM4A0C48S41SA
56.9 x 23.5 x 21.8 22 143
TAM4A0C60S51SB
*AM4A0C60S51SA
61.7 x 23.5 x 21.8 22 160
* May be “A” or “T”
** Subtract from total height to get Coil and Heater compartment height.

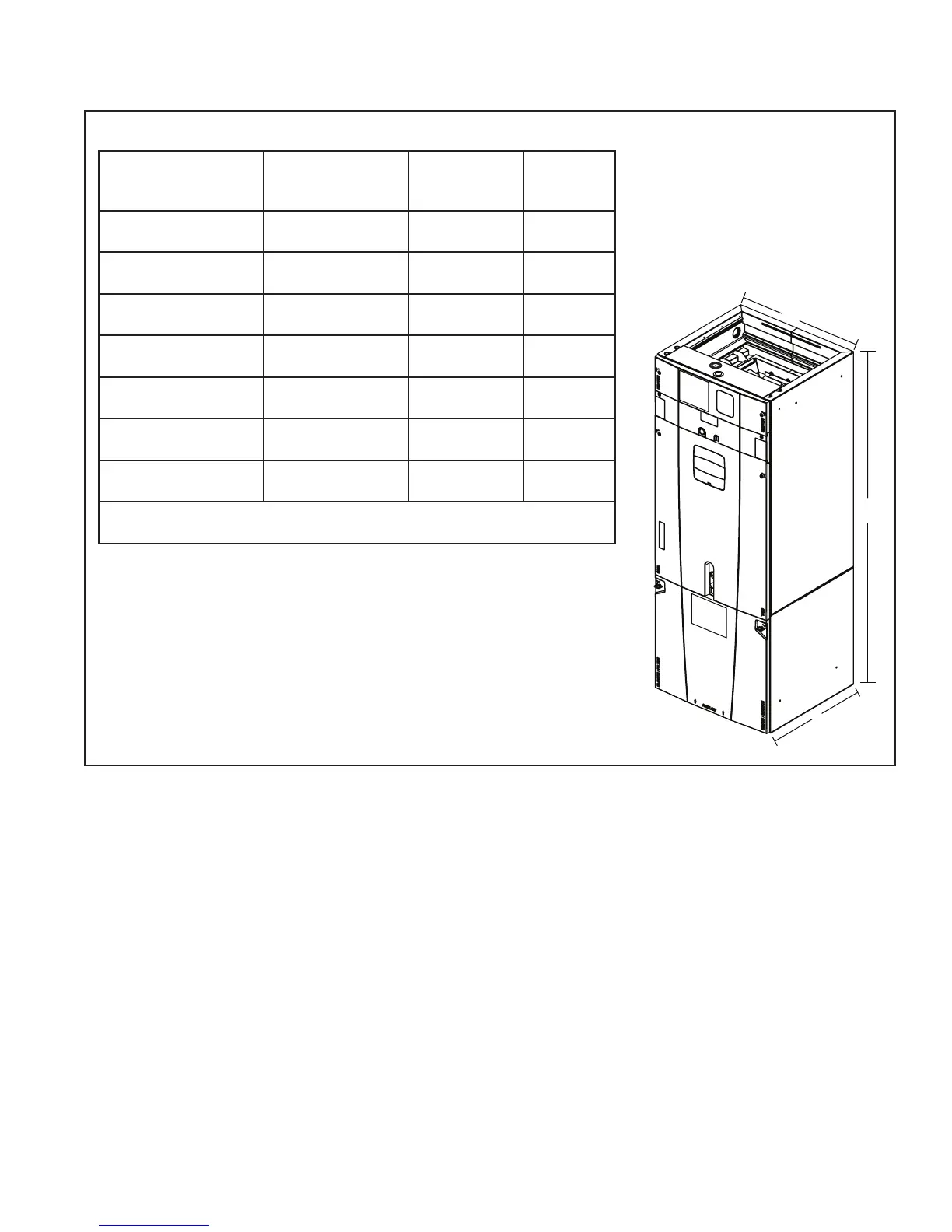

Table 7.1
D
H
W
