24 CLCH-SVX07C-EN
Installation - Mechanical
Lifting and Rigging
Remove Shipping Tie-Downs
Prior to unit placement, remove the shipping tie-downs per the following instructions:
• Shipping tie-downs are located at each corner of the isolation base. See Figure 51, Figure 52,
Figure 53 and Figure 54.
• Access for removal of shipping tie-downs for unit sizes 3-30 is available through the fan section
access door or opposite drive-side plug panel. See Figure 5.
• Remove the bolt. This will release the isolator and make it possible to remove the pipe or spacer.
• Replace plug panel if applicable.
Note: For outdoor air handlers, after isolator tie-down is removed, remove the paper backing from
the butyl tape around plug panel perimeter prior to replacing plug panel.

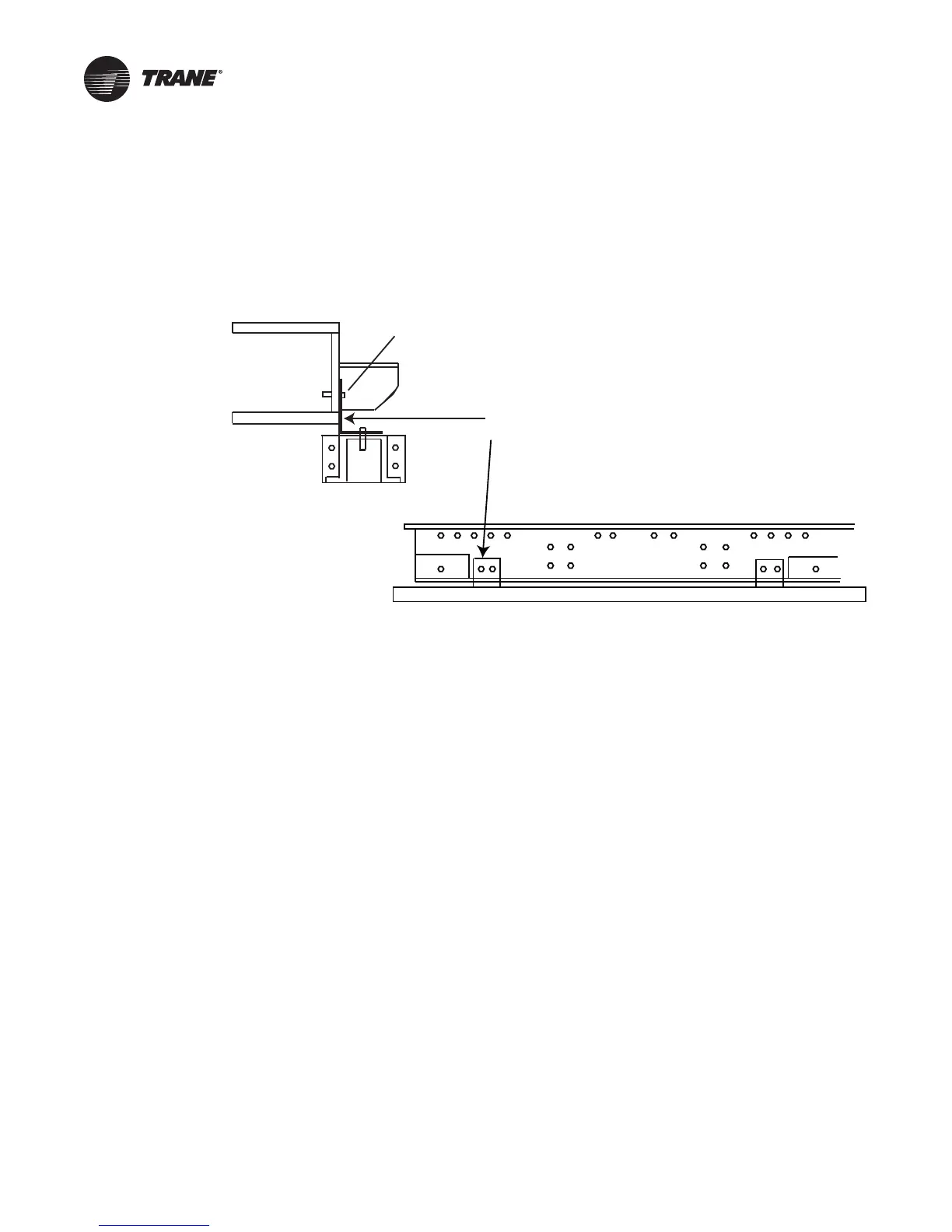

Figure 4. Isolator tie-down removal for unit sizes 35-120
Angle, isolator
tie-down (4 required)
Screw (4 per angle)
Lockwasher and hex nut
