CLCH-SVX07C-EN 39
Installation - Mechanical
14. For stacked units, remove top level lifting lugs one at a time and replace with factory-provided
stacking brackets at each shipping split corner and end of unit perpendicular to airflow after
sections are set in final position (see Figure 27). Be sure to compress the gasketing to ensure
a good air seal between the upper and lower sections.

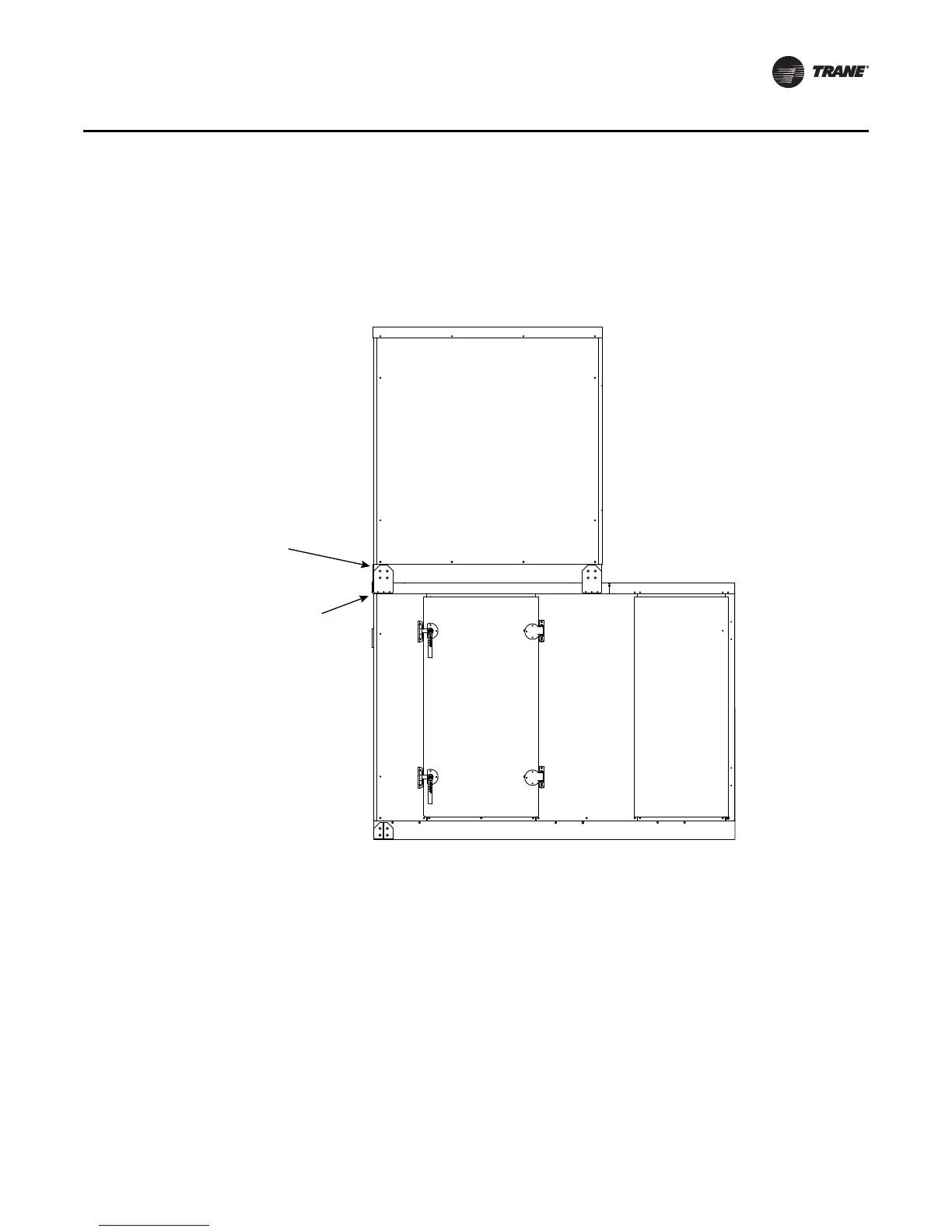

Figure 27. Stacked unit hardware
X25020634020
Screw: #10-16X 0.75 in.
Sheet Metal Hex Head
Qty:3
X25240049010
Screw: .313-18X0.875 in.
Sheet Metal Hex Head
Qty: 4
