CLCH-SVX07C-EN 77
Component Installation Requirements
When attaching a bypass duct to a downstream fan section or access section, the section will have
a factory-provided opening. (see Figure 66, Figure 67, and Figure 68.)
When bypassing into an access section, remove a panel. It is not necessary to cut an opening.

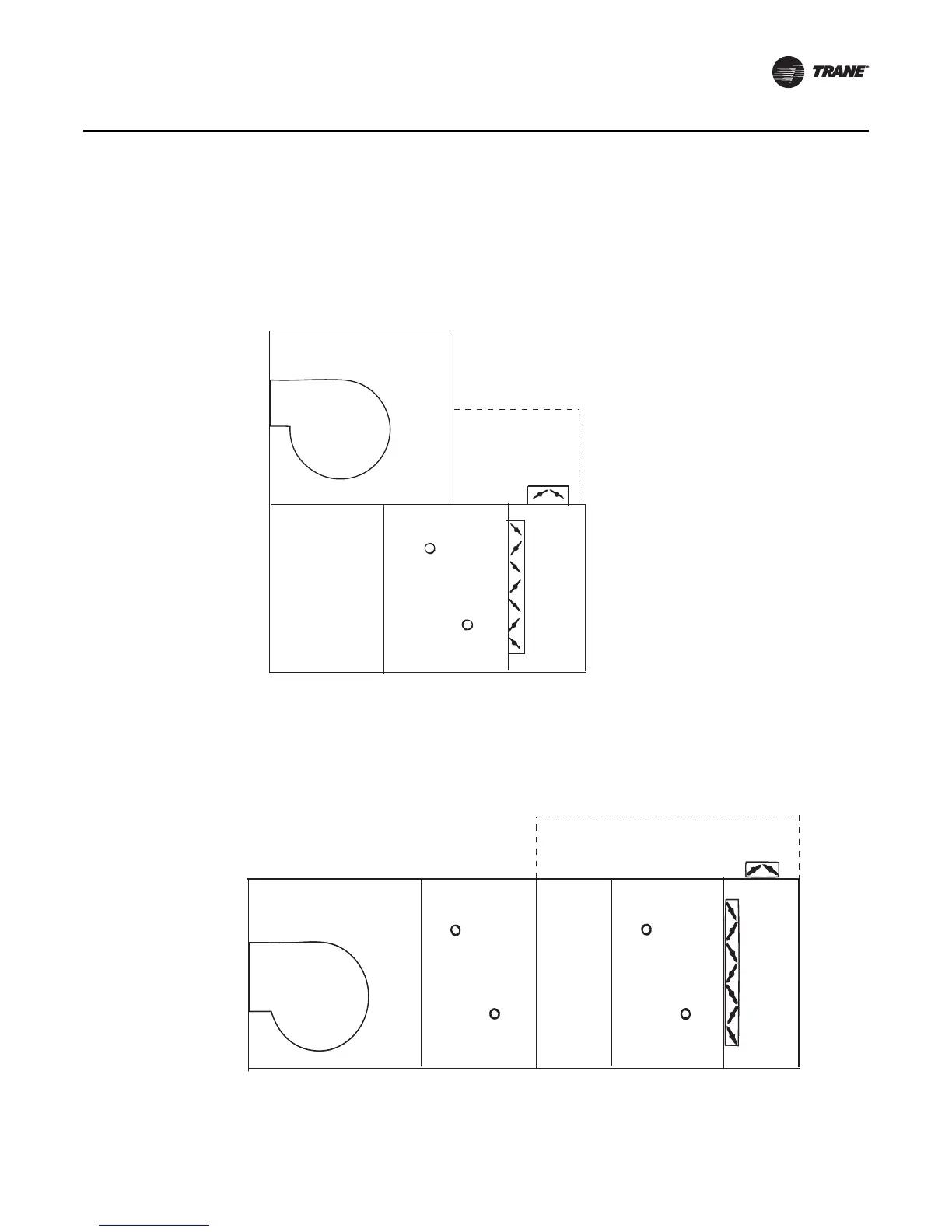

Figure 66. External face-and-bypass with duct configuration designed to bypass air into a
vertical fan section
Figure 67. External face-and-bypass with duct configuration designed to bypass air around one
coil
Duct
Fan
External
Face and Bypass
Coil
Fan
Coil
Coil
External
Face and Bypass
Duct
Access
