c. Re-install the fan shroud and unit top. See
Figure 12, p. 8.

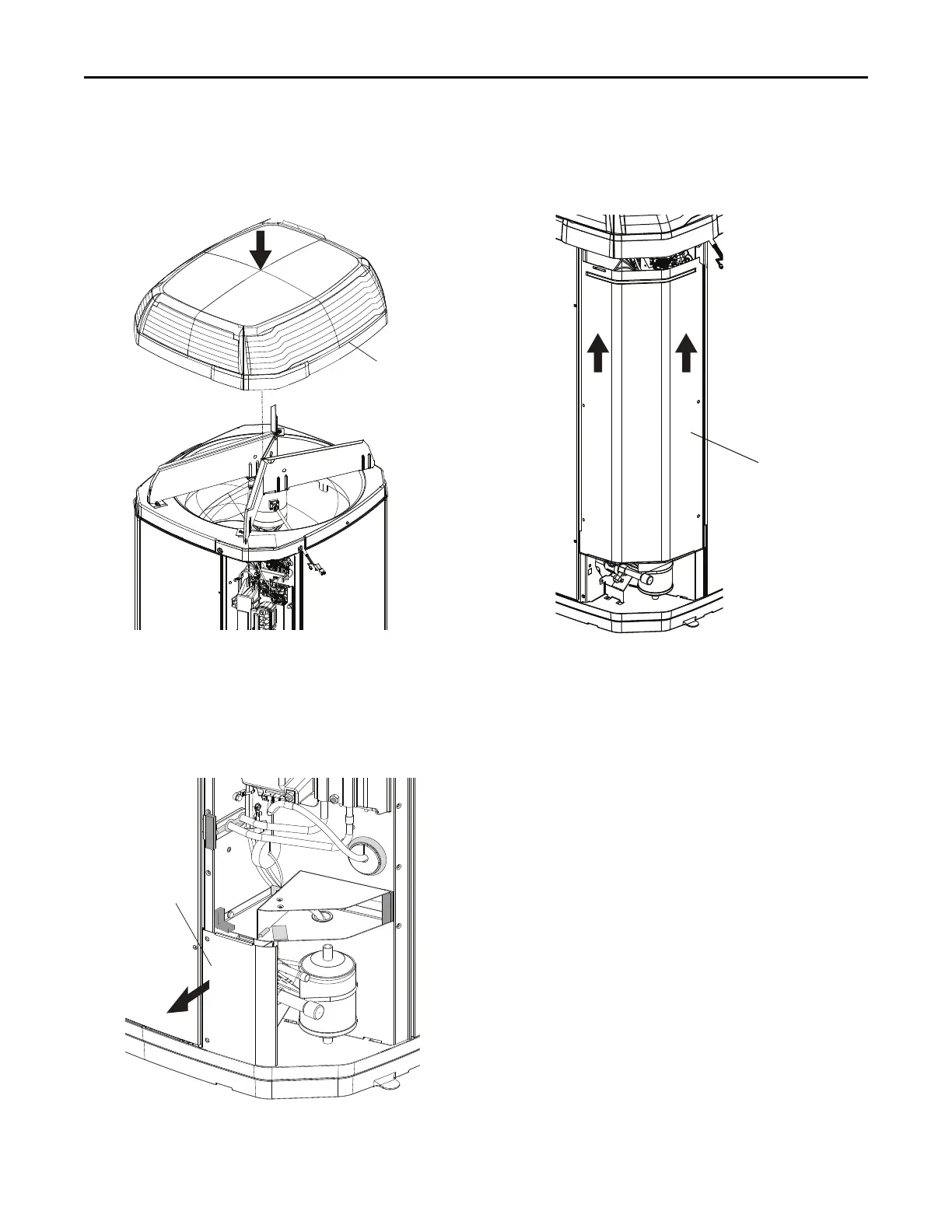

Figure 12. Fan Shroud and Unit Top Installation
RRee--IInnssttaallll CCoonnttrrooll CCoovveerr BBooxx
1. Once all previous steps are completed, remove the
bottom cover plate. See Figure 13, p. 8.
Figure 13. Bottom Cover Plate Removal
2. Re-install the control box cover that was removed
earlier. See Figure 14, p. 8.
Figure 14. Control Box Cover Installation
a. When installing the screws, be careful to not
strip the threads of the main unit. If any
screws do strip, install a slightly larger screw
to ensure the control box cover is fastened
securely and the foam underneath is
compressed.
b. Make sure that the bottom flange of the
control box cover is below the bottom plate
of the control box.
c. Make sure that the bottom lip of the bottom
plate is compressed against the foam on the
control box cover to provide a tight seal
around the bottom of the control box cover.
IInnssttaallllaattiioonn IInnssttrruuccttiioonnss
