INSTALLER’S GUIDE
A
B
C
Economizer
Gaskets (2)
Rain Hood
Duct
D
E
Horizontal Economizer Assembly
NOTE: BAYECON200A economizer only contains two clearance notches in the top flange.

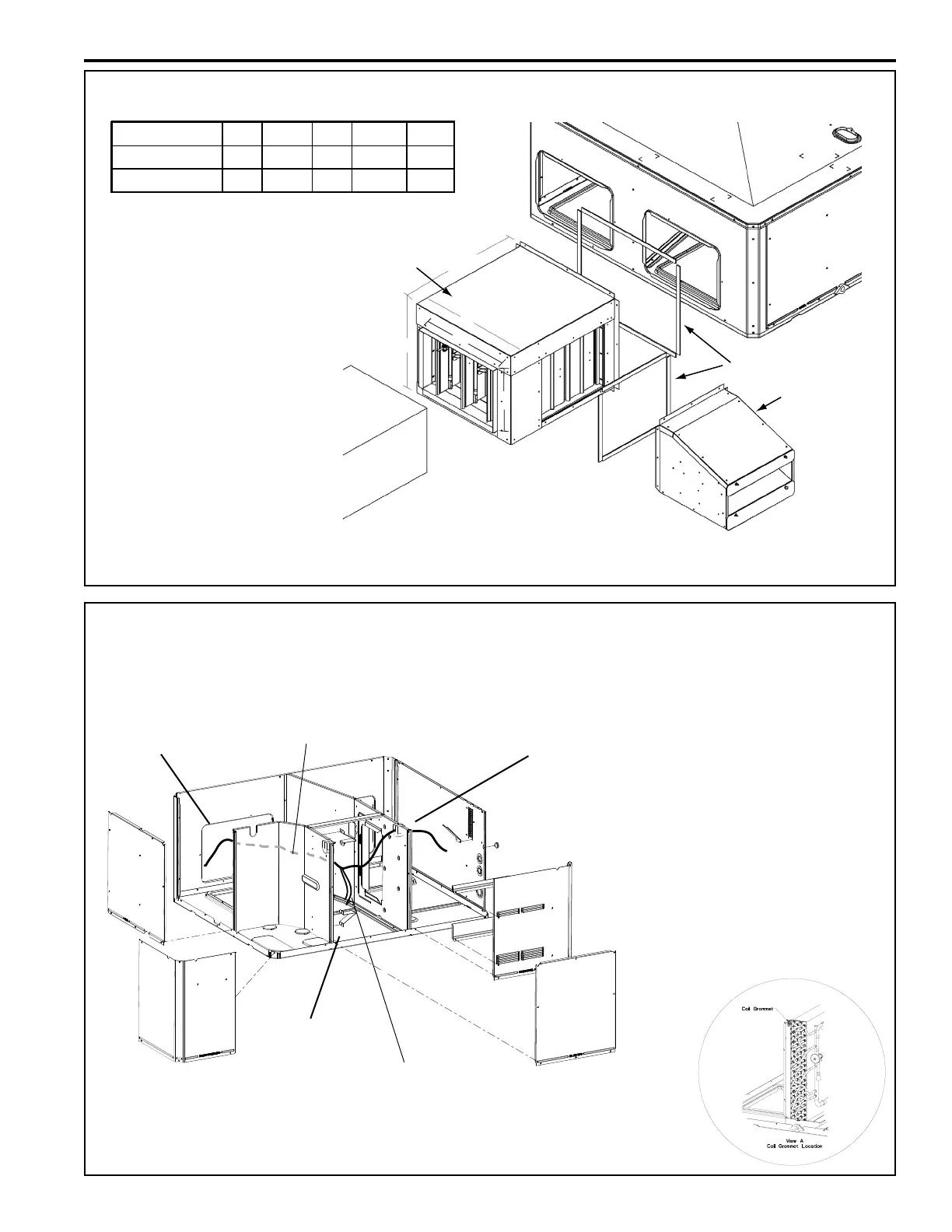

Figure 2. Apply Two Gaskets to Mounting Flanges
Figure 3. Main Wire Harness Routing
1.) From
EconomizerAssembly,
Pass Wire Harness
Through Coil Grom-
met. See View A.
2.) Continue Routing
Behind Compressor
Compartment and into
Blower Compartment.
3.) Pull the 2 Mixed Air Sensor
Wires (with Stake-Ons) from the
Harness and Route Down Near
the Mixed Air Sensor.
Location of
Mixed Air Sensor
4.) Continue Routing the
Remaining Harness
Through the Grommet
and into the Control Box.
Economizer A B C D E
BAYECON200AA 22" 20" 16-7/8" 15-11/16 11-11/16
BAYECON201AA 26" 22-21/32" 19" 17-11/16 14-11/16
