Page 13
4.2
MINIMUM SPACE REQUIREMENTS
Dimensional drawing shall be respected to avoid:
Difficult maintenance or inaccessibility to components
Limited installation space could reduce the normal air flow, thus significantly reducing the unit performance and
considerably increasing consumption of electrical energy.
The following drawings are views from under the units:

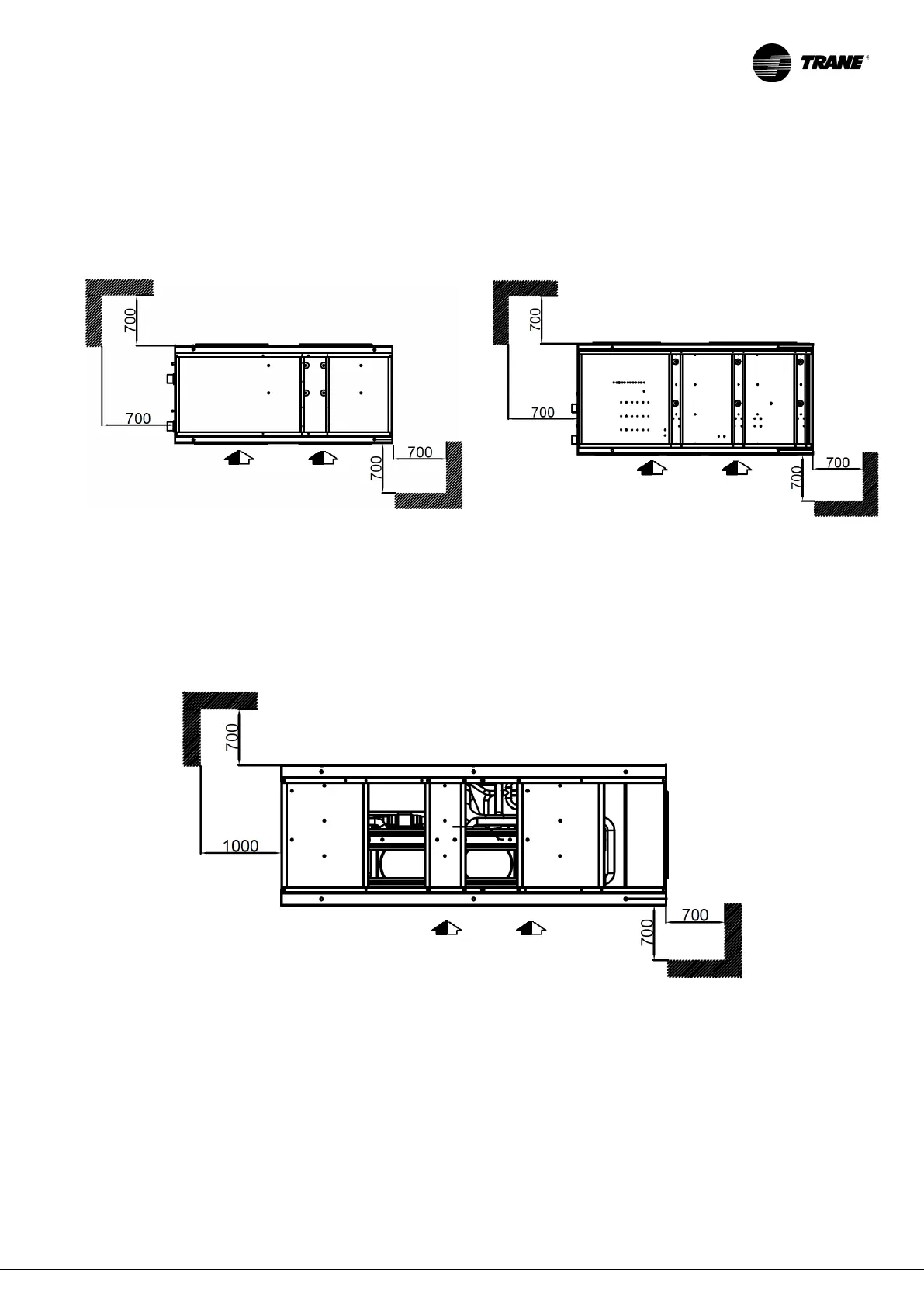

Figure 7 - minimum space requirements [mm]
for
platform 2 units (sizes from 100 to 140)
Figure 6 - minimum space requirements
[mm] for
platform 1 units (sizes from 050
Figure 8 - minimum space requirements [mm]
for platform 3 units (sizes from 095 to 420)
