AFDH Drive Package Specifications

AFDH-SVN004C-EN 19

Transition Mount Unit

Dimensions

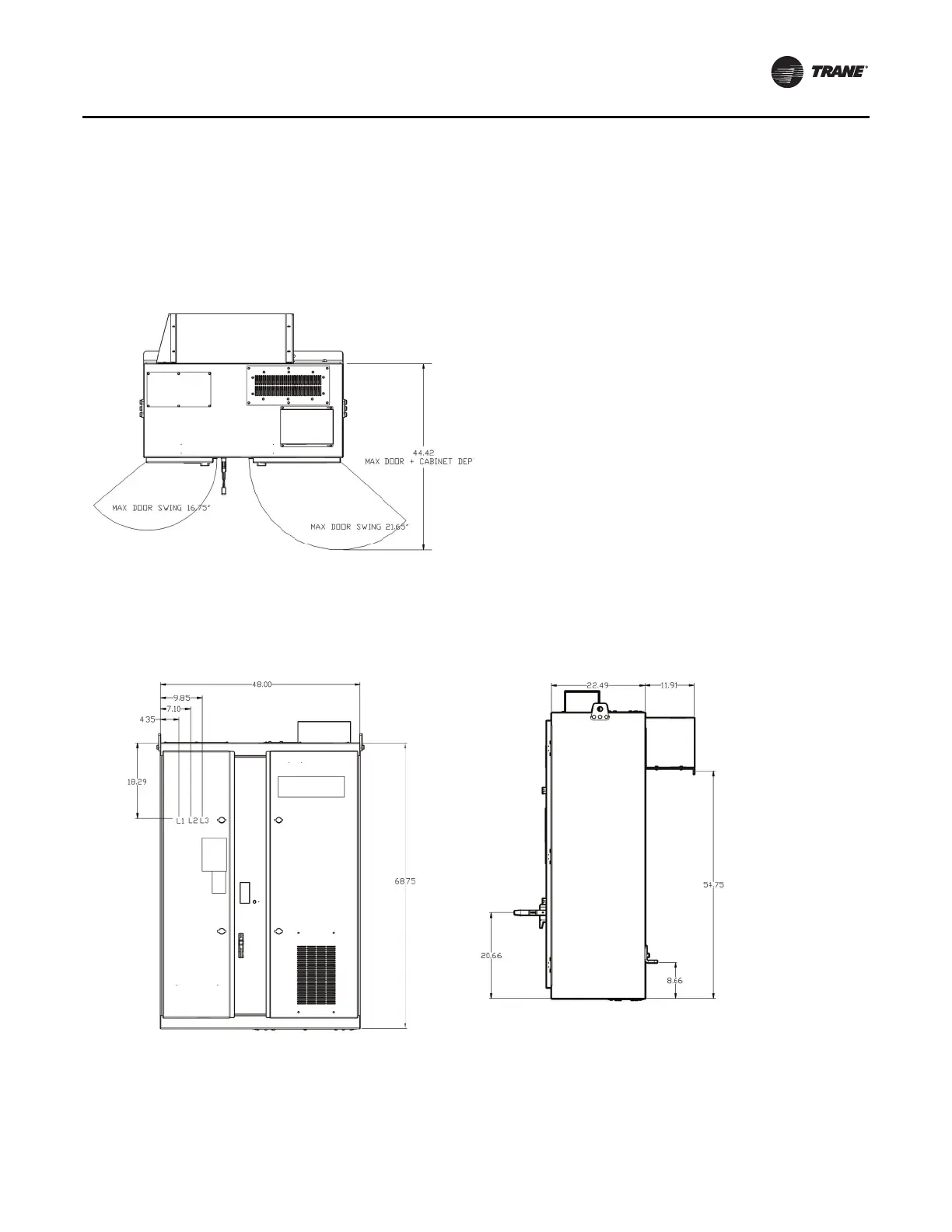

Figure 15. Top, front, and side view of E-Frame AFDH cabinet with dimensions - Transition mount drive
