AFDH Drive Package Specifications
Corner support bracket kits for floor-mounted drives (all models)
• All D-Frame and E-Frame AFDH floor-mount version drive packages will include a part number
506898850100 Corner Support Bracket Kit.
Motor panel transition covers
• It is possible to order a complete new motor panel transition cover assembly if one is needed,
either as part of the drive package order or separately if necessary.
• The transition cover assembly when properly installed, prevents direct access to the output
motor lead sections that emerge from the access cutout at the back of a unit-mounted or stand-
mounted AFDH drive, and connect to the compressor motor terminal board.
Table 17. Part numbers for motor panel transition covers

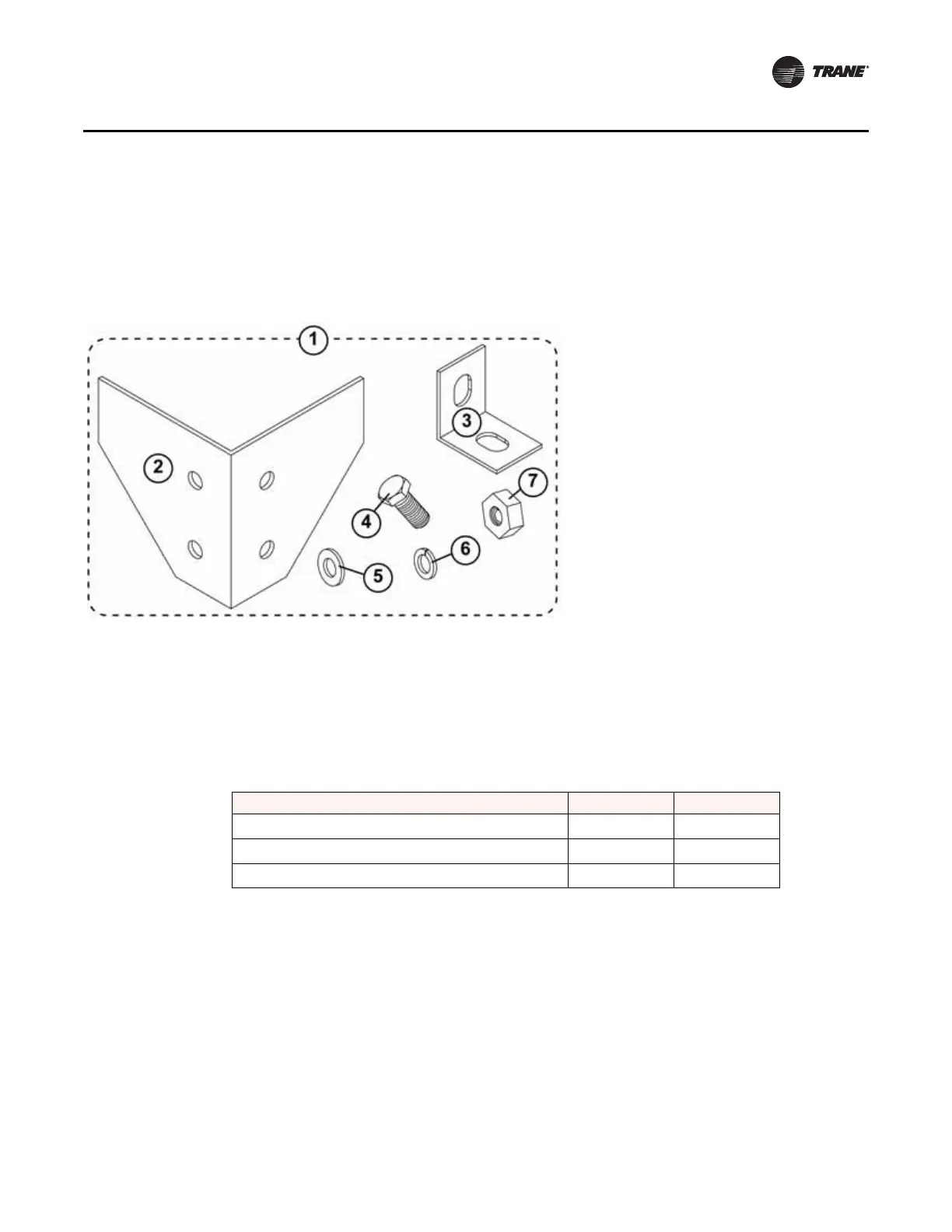

Figure 18. D and E-Frame floor-mounted AFDH; corner support kit parts
1.Corner support bracket kit; part number
506898850100
2.Corner bracket (quantity = 4)
3.Slotted angle bracket (quantity = 4)
4.Hex head cap screw; 0.50-13 UNC x 1.50
inches long (quantity = 12)
5.Flat washer; 0.531 in. ID (quantity = 24)
6.Helical spring lock washer; 0.531 in. ID
(quantity = 12)
7.Hex nut; 0.50-13 UNC (quantity = 12)
Part Description Trane Part # Mnemonic #
6-inch motor panel transition cover assembly 506820000100 COV02946
12-inch motor panel transition cover assembly 506859440100 COV03203
18-inch motor panel transition cover assembly 506819750100 COV02945
