54 AFDH-SVN01A-EN
Installation
Routing of control wiring to AFDH cabinet (all models)
Important: All field installed wiring runs between the chiller controls and the AFDH control box
must be routed through the factory provided conduit holes at the hinged side of the
AFDH control box enclosure.

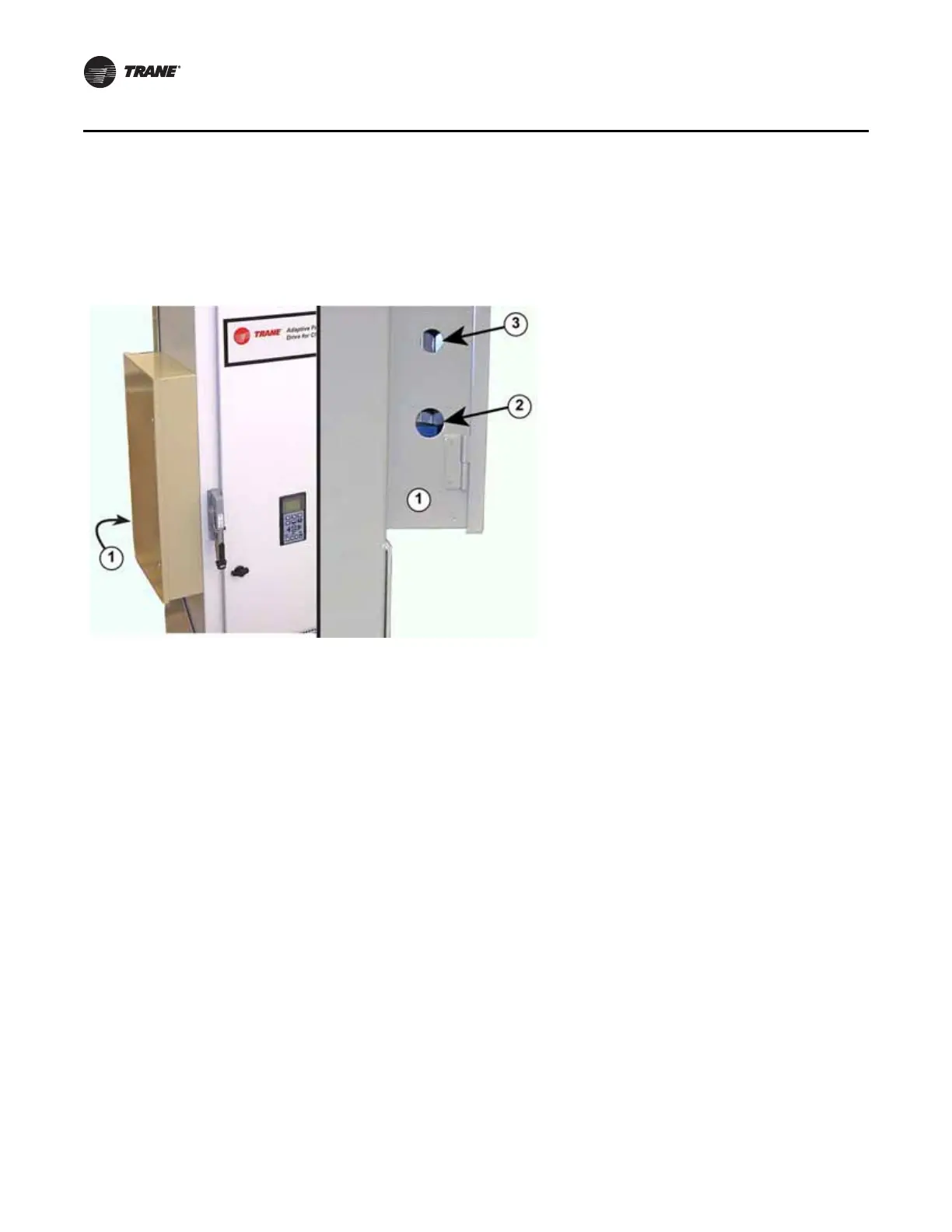

Figure 30. Factory provided conduit holes in AFDH control box
1. Hinged side of AFDH control box
enclosure
2. 1.13-inch cutout for 0.75-inch conduit
3. 0.88-inch cutout for 0.50-inch conduit
