42 AFDH-SVN01A-EN
Installation

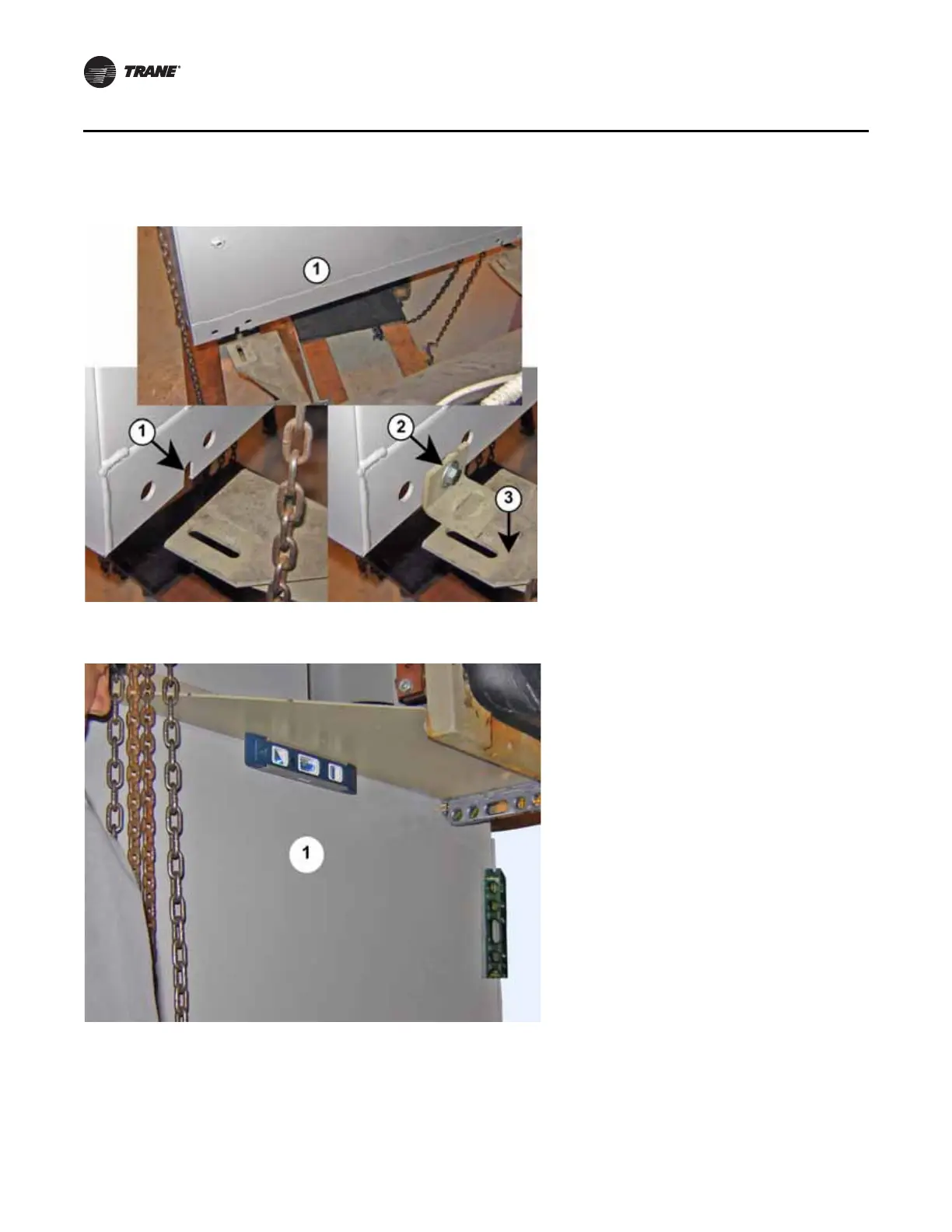

Figure 20. Position cabinet base over evaporator brackets and install clips
1. Lining up slots in drive cabinet base with
slots in evaporator brackets
2. Bolt an angle iron clip (that was removed
from the old unit-mount starter) to each
slot in the cabinet base
3. Lower drive unit until clips come in
contact with bracket surface
Figure 21. Leveling the AFDH drive cabinet against the Z-bracket
1. Adjust position of angle iron clips on
evaporator brackets to bring the drive
cabinet back level vertically against the Z-
bracket flange
