AFDH-SVN01A-EN 47
Installation

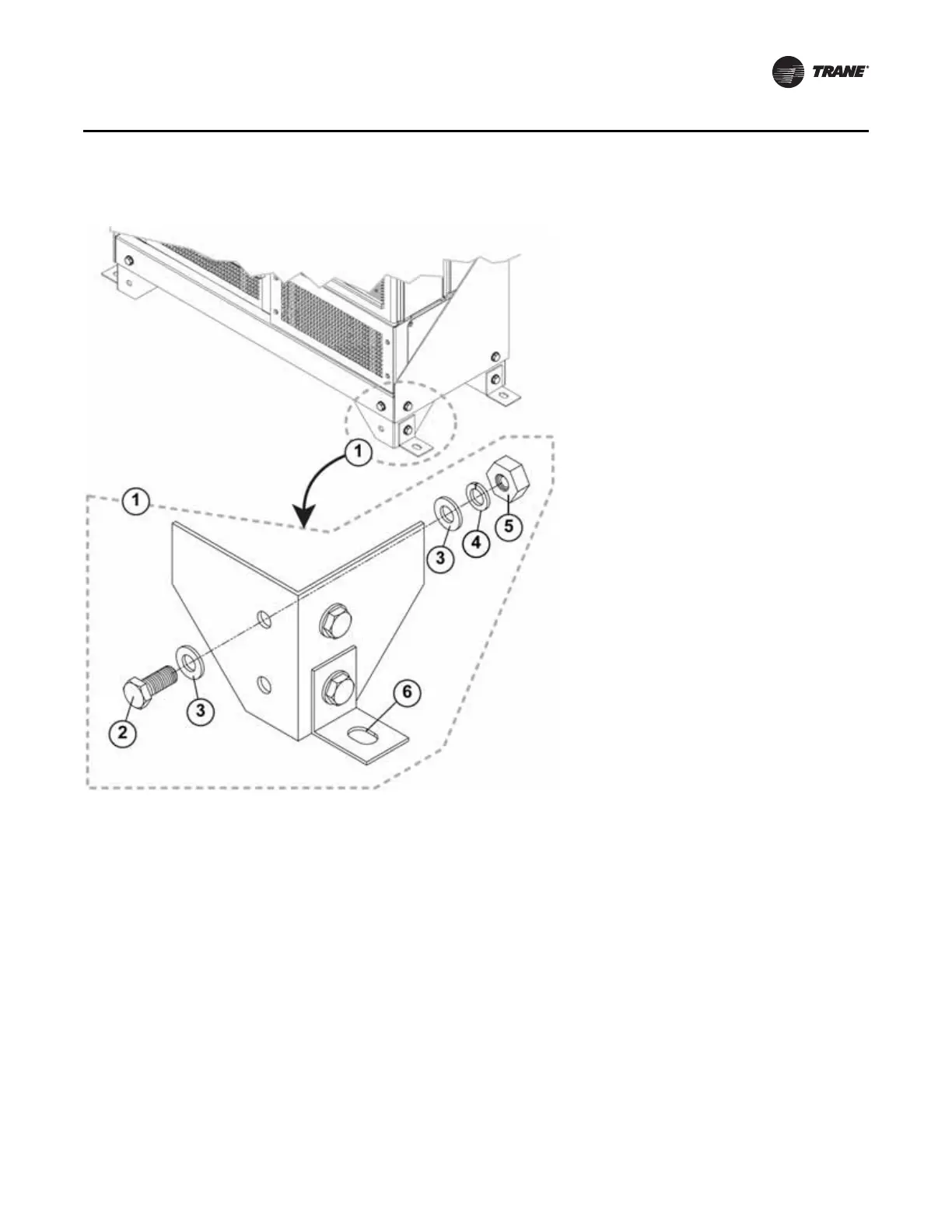

Figure 24. Assembly and installation of corner support kit components
1. Assembly of corner support kit parts;
mounted position of corner bracket on
AFDH cabinet base
2.Hex head cap screws; 0.50-13 UNC x 1.50
inches
3.Flat washer; 0.531 in. ID
4.Helical spring lock washer; 0.531 in. ID
5.Hex nut; 0.50-13 UNC
6. Slotted holes in angle bracket for using
locally supplied concrete anchor bolts to
secure drive assembly to floor
