Trane EBC048 User Manual

18
RT-SVX057F-EN
Main Unit Power
WWAARRNNIINNGG
PPrrooppeerr FFiieelldd WWiirriinngg aanndd GGrroouunnddiinngg
RReeqquuiirreedd!!
FFaaiilluurree ttoo ffoollllooww ccooddee ccoouulldd rreessuulltt iinn ddeeaatthh oorr
sseerriioouuss iinnjjuurryy..
AAllll ffiieelldd wwiirriinngg MMUUSSTT bbee ppeerrffoorrmmeedd bbyy qquuaalliiffiieedd
ppeerrssoonnnneell.. IImmpprrooppeerrllyy iinnssttaalllleedd aanndd ggrroouunnddeedd
ffiieelldd wwiirriinngg ppoosseess FFIIRREE aanndd EELLEECCTTRROOCCUUTTIIOONN
hhaazzaarrddss.. TToo aavvooiidd tthheessee hhaazzaarrddss,, yyoouu MMUUSSTT ffoollllooww
rreeqquuiirreemmeennttss ffoorr ffiieelldd wwiirriinngg iinnssttaallllaattiioonn aanndd
ggrroouunnddiinngg aass ddeessccrriibbeedd iinn NNEECC aanndd yyoouurr llooccaall//
ssttaattee//nnaattiioonnaall eelleeccttrriiccaall ccooddeess..
Standard Wiring
The electrical service must be protected from over
current and short circuit conditions in accordance with
NEC requirements.
Protection devices must be sized according to the
electrical data on the nameplate.
• If the unit is not equipped with an optional factory
installed nonfused disconnect switch, a field
supplied disconnect switch must be installed at or
near the unit in accordance with the National
Electrical Code (NEC latest edition).
• Location of the applicable electrical service
entrance is illustrated in “Dimensional Data,” p. 9.
Complete the unit’s power wiring connections onto
either; the main terminal block HTB1 inside the unit
control panel, the factory mounted nonfused
disconnect switch (UCD), or the electric heat
terminal block. Refer to the customer connection
diagram that shipped with the unit for specific
termination points.
• Provide proper grounding for the unit in accordance
with local and national codes.
Optional TBUE Wiring (Through the Base
Electrical Option)
• Location of the applicable electrical service is
illustrated below. Refer to the customer connection
diagram that is shipped with the unit for specific
termination points. The termination points,
depending on the customer option selected, would
be a factory mounted nonfused disconnect switch
(see Figure 14, p. 22 ), the electric heat terminal
block (if equipped) or the main terminal block.
• Provide proper grounding for the unit in accordance
with local and national codes.

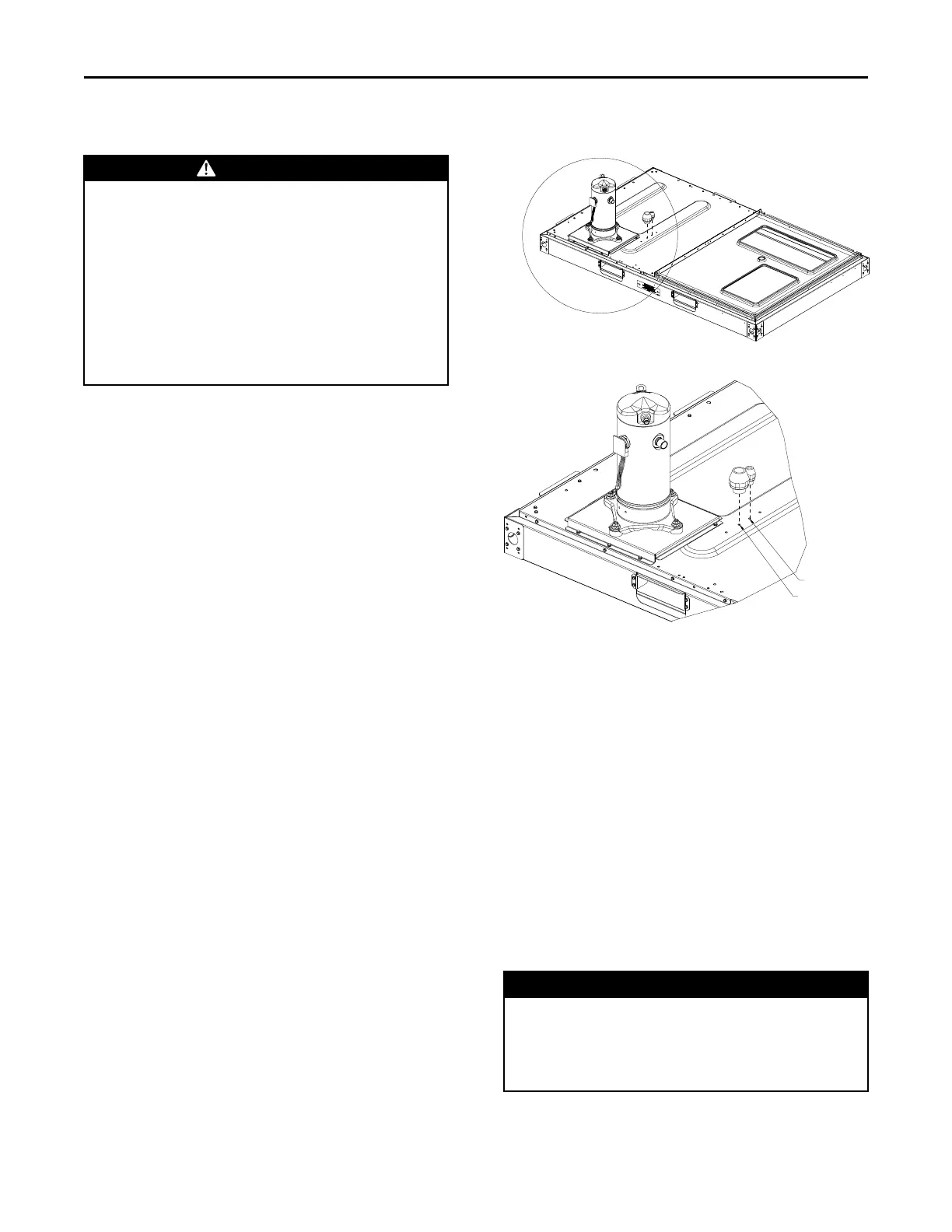

Figure 12. Through the base electrical option
TBUE
HIGH VOLT.
TBUE
LOW VOLT.
Control Power Transformer
The 24-volt control power transformers are to be used
only with the accessories called out in this manual.
Transformers rated greater than 50 Vac are equipped
with internal circuit breakers. If a circuit breaker trips,
turn “Off” all power to the unit before attempting to
reset it.
The transformer is located in the control panel. The
circuit breaker is located on the left side of the
transformer and can be reset by pressing in on the
black reset button.
Controls using 24 Vac
Before installing any connecting wiring, refer to
“Dimensional Data,” p. 9 for the electrical access
locations provided on the unit and Table 2, p. 19 for AC
conductor sizing guidelines.
NNOOTTIICCEE
UUssee CCooppppeerr CCoonndduuccttoorrss OOnnllyy!!
FFaaiilluurree ttoo uussee ccooppppeerr ccoonndduuccttoorrss ccoouulldd rreessuulltt iinn
eeqquuiippmmeenntt ddaammaaggee aass tthhee eeqquuiippmmeenntt wwaass nnoott
ddeessiiggnneedd oorr qquuaalliiffiieedd ttoo aacccceepptt ootthheerr ttyyppeess ooff
ccoonndduuccttoorrss..
1. Use copper conductors unless otherwise specified.
2. Ensure that the AC control wiring between the
IInnssttaallllaattiioonn
