WSHP-SVX01Q-EN 53
Weights
Weight Distribution for Hanging the GEH
and EXH Model
Approximate weight distribution for proper hanging of the
GEH and EXH unit is indicated by weight distribution in
Figure 45, p. 53.
Tolerance on the weights determined are ±15%.
Table 33. Unit weights GEH .5 to 5 tons
GEH (60 Hz)
Shipping Weight with
pallet (lbs)
Unit Weight without
pallet (lbs)
006 195 165
009 195 165
012 203 173
015 203 173
018 268 248
024 285 253
030 285 253
035 318 288
042 318 288
048 428 398
060 428 398
Table 34. Unit weights GEV .5 to 5 tons
GEV (60 Hz)
Shipping Weight with
pallet (lbs)
Unit Weight without
pallet (lbs)
006 195 165
009 195 165
012 203 173
015 203 173
018 268 248
024 285 253
030 285 253
036 308 288
042 308 288
048 396 348
060 396 349
Table 35. Unit weights EXV .5 to 6 tons
EXV (60 Hz)
Shipping Weight with
pallet (lbs)
Unit Weight without
pallet (lbs)
006 195 165
009 195 165
012 203 173
015 203 173
018 284 264
024 301 269
030 319 299
036 333 313
042 402 381
048 422 374
060 442 394
070 482 434
Table 36. Unit weights EXH .5 to 6 tons
EXH (60 Hz)
Shipping Weight with
pallet (lbs)
Unit Weight without
pallet (lbs)
006 195 165
009 195 165
012 203 173
015 203 173
018 284 264
024 301 269
030 329 299
036 343 313
042 461 431
048 454 424
060 474 444
070 514 484
WARNING
Improper Unit Lift!
Failure to properly lift unit could result in unit dropping
and possibly crushing operator/technician which could
result in death or serious injury, and equipment or
property-only damage. Test lift unit approximately 24
inches to verify proper center of gravity lift point. To
avoid dropping of unit, reposition lifting point if unit is
not level.

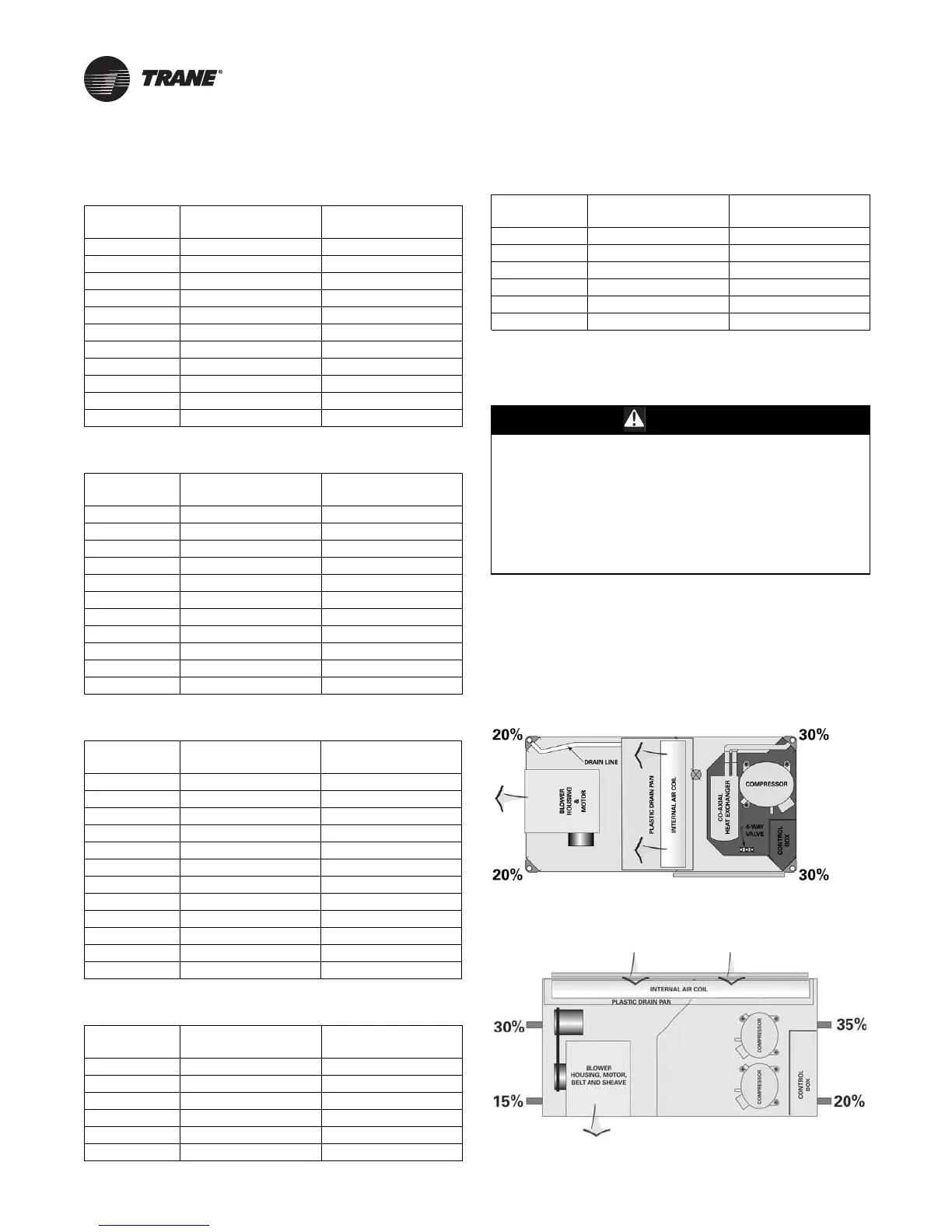

Figure 45. Weight distribution GEH .5 to 5 tons; EXH .5
to6tons
Figure 46. Weight distribution GEH 6 to 15 tons
Table 36. Unit weights EXH .5 to 6 tons (continued)
EXH (60 Hz)
Shipping Weight with
pallet (lbs)
Unit Weight without
pallet (lbs)
