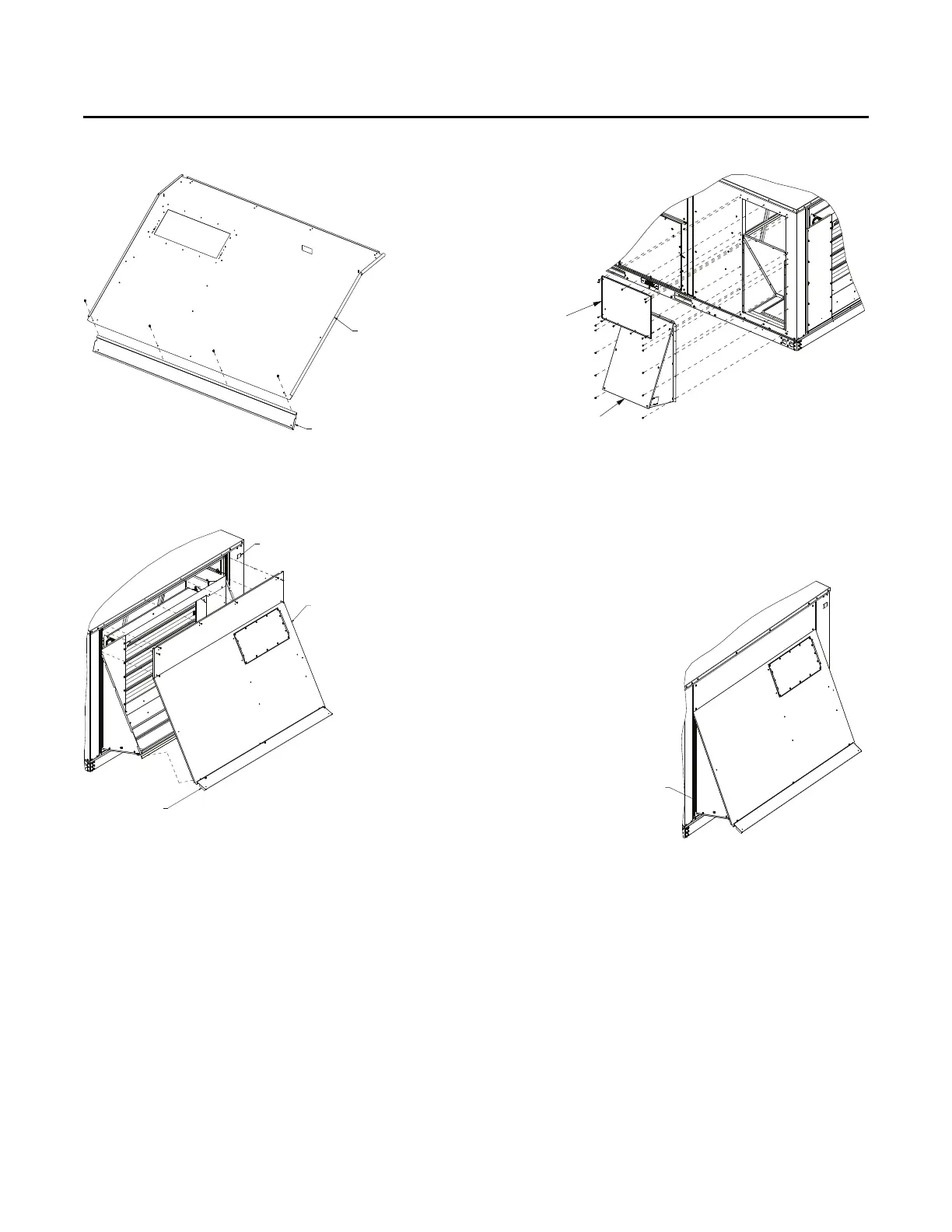

Figure 22. Diverter panel installation to end panel
Diverter Panel
Unit End Panel
Installation - FIAECON103*
14 ACC-SVN264B-EN
18. With the back panel pre-bent, install the back panel over
top of the economizer assembly and fasten with screws.
Figure 23. Unit end panel reinstallation
Unit End Panel
Diverter Panel
Identification Label
19. Install the access panels on the front and back of the unit.
Figure 24. Back panel and barometric relief parts
Horizontal Return
Block-off Panel
Barometric Relief Assembly
Note: The back panel will be replaced with the barometric
relief hood and block-off panel.
20. Using field supplied silicone sealan
t, seal all seams, cracks
and gaps around the back panel and vertical edge of the
hood panels.
Figure 25. Sealant application location (both sides)
Apply Silicone or Weather Resistant
Sealant (Field Supplied) between
both these edges on the Left Hood
Panel and the Right Hood Panel
To Next Page
