ACC-SVN264B-EN 15
General Information - FIAECON203*
This section covers installation of low leak economizers for
12.5 to 25 ton horizontal units in the D cabinet (digit 39 = D).
Inspection
1. Unpack all components of the kit.
2. Check carefully for shipping damage. If any damage is
fo
und, report it immediately, and file a claim against the
transportation company.
3. Visually inspect the components for shipping damage as
soon
as possible after delivery, before it is stored.
Concealed damage must be reported within 15 days.
4. If concealed damage is discovered, stop unpacking the
shipm
ent.
5. Do not remove damaged material from the receiving
loca
tion. Take photos of the damage, if possible. The
owner must provide reasonable evidence that the damage
did not occur after delivery.
6. Notify the carrier’s terminal of damage immediately by
phone and by mail. Request an immediate joint inspection
of the damage by the carrier and the consignee.
Note: Do
not attempt to repair any damaged parts until the
parts are inspected by the carrier’s representative.
Parts List
NOTICE
Corrosion Damage!
Failure to use recommended caulking/sealant could
cause corrosion related failures to refrigerant
components.

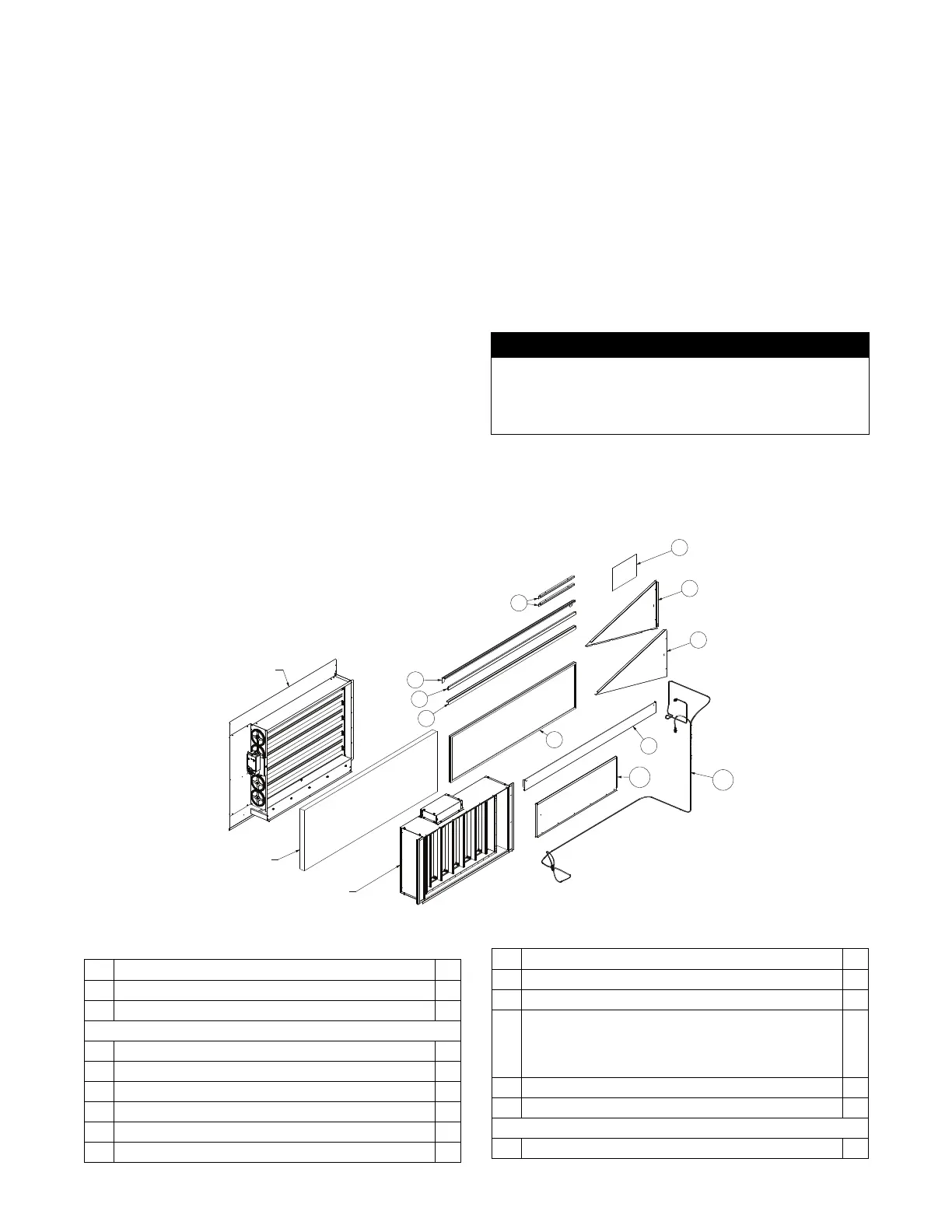

Figure 26. Low leak economizer (12.5 to 25 tons - horizontal)
1
2
3
4
5
6
8
9
11
Outside Air Damper Assembly
Return Air Damper Assembly
Hood Parts Carton
7
10
Table 4. Parts list
Item Description Qty
- Outside air damper assembly 1
- Return air damper assembly 1
Hood parts carton:
1 Right hood panel 1
2 Left hood panel 1
3 Filter side angle bracket 2
4 Filter rear angle bracket 1
5 Hood front support bracket 1
6 Filter top support bracket 1
7 Economizer diverter panel 1
8 Filter 1
9
Hardware bag:
• 54 Sheet metal screws with washer (#10-16x 5/8 in.)
• 21 Seal-Tek screws with sealing washer (#10-16x 5/8 in.)
• Identification label
• Installation instructions
1
10 Outside air block-off 1
11 Controls harness 1
Field supplied part:
- Tube sealant - Trane recommends Sikaflex 221 (SEL00439) -
Table 4. Parts list (continued)
Item Description Qty
To Next Page
