12
RT-SVX50M-EN

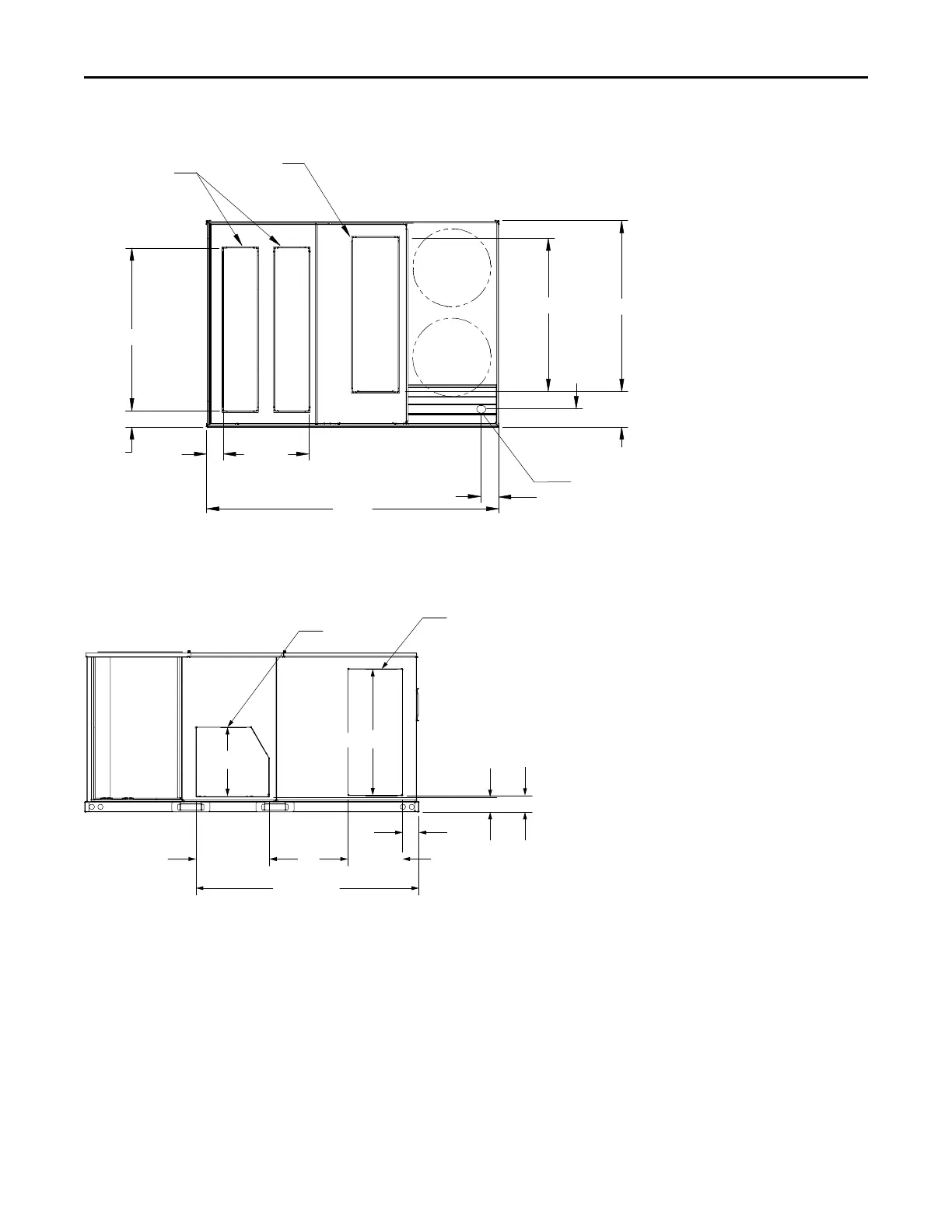

Figure 4. Cooling with optional electrical heat units— plain view
NOTES:
1.THRU-THE-BASE ELECTRICAL IS NOT STANDARD ON ALL UNITS.
2.VERIFY WEIGHT, CONNECTION, AND ALL DIMENSIONS WITH INSTALLER DOCUMENTS BEFORE INSTALLATION.
THROUGH THE BASE ELECTRICAL
RETURN
SUPPLY
64 9/16”
71 15/16”
14 15/16”
7 7/16”
7 3/8”
123 1/8”
36 1/16”
6 15/16”
6 13/16”
68 9/16”
Figure 5. Cooling with optional electrical heat units — back view (horizontal configuration)
RETURN
SUPPLY
46 11/16”
25 11/16”
26 15/16”
82 1/16”
20 3/16”
6”
6”
5 1/2”
Dimensional Data
